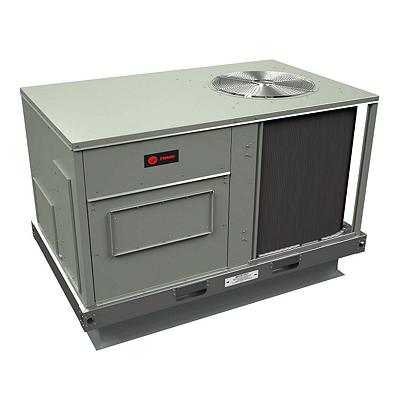

Trane EBC036A3E0B0000 Rooftop Air Conditioner 3 Ton 208-230V

Product Description

The TRANE EBC036A3E0B0000 is a 3-ton packaged rooftop air conditioner built for light commercial cooling applications. It operates on a 208/230-volt, 60 Hz, 3-phase electrical supply and delivers direct-expansion (DX) cooling in a self-contained cabinet designed for rooftop mounting. Convertible airflow allows the unit to be configured for either horizontal or downflow discharge, giving installers flexibility to match existing duct configurations on the job site. This unit is typically installed by licensed HVAC technicians on commercial low-slope or flat roofs.

The EBC036A3E0B0000 is suited for light commercial buildings such as retail spaces, small offices, and similar occupied structures requiring packaged cooling without a separate air handler or condenser. The 3-phase electrical configuration makes it appropriate for buildings with commercial power service. Its packaged design consolidates the refrigeration circuit, air handler, and controls into a single rooftop cabinet, reducing installation complexity and mechanical room requirements.

Key Features

• 3-ton cooling capacity in a single packaged rooftop cabinet
• 208/230-volt, 3-phase power supply for commercial electrical service
• Convertible airflow design supports horizontal or downflow duct connections
• Self-contained DX cooling system eliminates need for separate indoor air handler
• Rooftop mounting keeps mechanical equipment off the occupied floor plan

Compatibility

Designed as an OEM packaged rooftop unit for light commercial cooling applications requiring 3-phase, 208/230-volt power service and 3-ton cooling capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician familiar with commercial rooftop equipment and local mechanical codes. Disconnect and lock out all electrical power before servicing or rigging the unit onto the roof curb. Verify that the roof curb dimensions and duct openings match the unit footprint before final placement. Refrigerant handling requires EPA Section 608 certification.

Technical Specifications

• Unit Type: Cooling Only
• Cooling Capacity: 3 Ton
• Voltage: 208/230V
• Phase: 3-Phase
• Frequency: 60 Hz
• Airflow Configuration: Convertible

Standard Information

• Brand: TRANE
• Manufacturer Part Number: EBC036A3E0B0000
