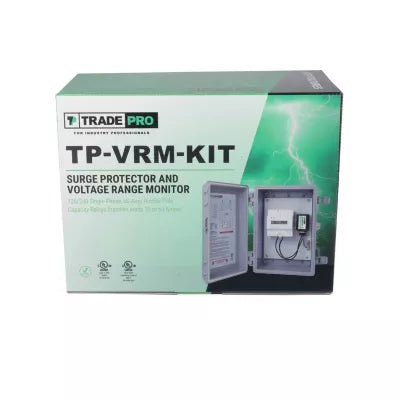

Tradepro tp-vrm-kit Surge Protector Voltage Monitor Kit

Product Description

The TRADEPRO tp-vrm-kit is a combination surge protector and voltage range monitor kit designed for single-phase electrical systems operating at 120-240 VAC, 50/60 Hz. It integrates the functions of the VRM60A voltage range monitor and the TP-SPD-50 surge protective device into a single NEMA 3R rated enclosure. This all-in-one configuration reduces installation footprint and simplifies wiring for equipment protection applications. The NEMA 3R enclosure rating makes it suitable for outdoor or semi-exposed locations where resistance to rain and sleet is required. Licensed electricians and HVAC technicians typically install this kit to protect compressors, motors, and other sensitive equipment from voltage irregularities and transient surges.

The tp-vrm-kit is suited for residential and light commercial applications where single-phase power supply protection is needed. Its combined voltage monitoring and surge suppression capability makes it a practical solution for protecting HVAC condensing units, heat pumps, and similar motor-driven equipment exposed to utility voltage fluctuations and lightning-induced transients. The 120-240 VAC operating range covers standard single-phase service configurations commonly found in North American installations.

Key Features

• Combines VRM60A voltage range monitor and TP-SPD-50 surge protective device in one unit
• NEMA 3R enclosure rated for outdoor and semi-protected installations
• Operates at 120-240 VAC single-phase, 50/60 Hz for broad compatibility
• All-in-one design reduces installation time and component count
• Protects equipment from both voltage range faults and transient surge events

Compatibility

Designed as an all-in-one OEM-style protection solution for single-phase electrical equipment operating on 120-240 VAC, 50/60 Hz service, including HVAC and motor-driven loads requiring combined surge and voltage range protection.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power to the equipment before beginning installation. The NEMA 3R enclosure must be mounted in the appropriate orientation per manufacturer instructions to maintain its environmental rating. Verify that the supply voltage matches the 120-240 VAC single-phase operating range before energizing the unit.

Technical Specifications

• Voltage Range: 120-240 VAC
• Phase: Single Phase
• Frequency: 50/60 Hz
• Enclosure Type: NEMA 3R
• Included Components: VRM60A Voltage Range Monitor, TP-SPD-50 Surge Protective Device

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: tp-vrm-kit
