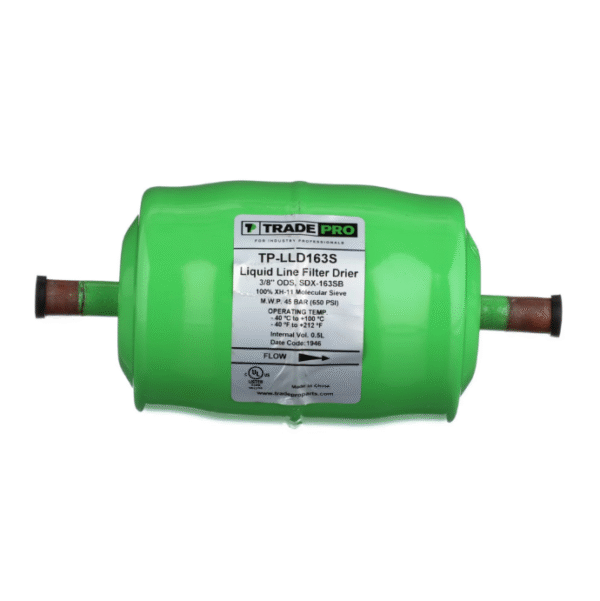

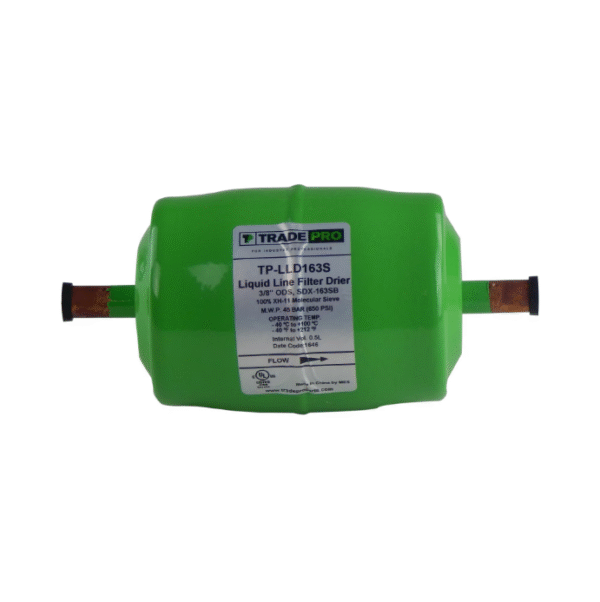

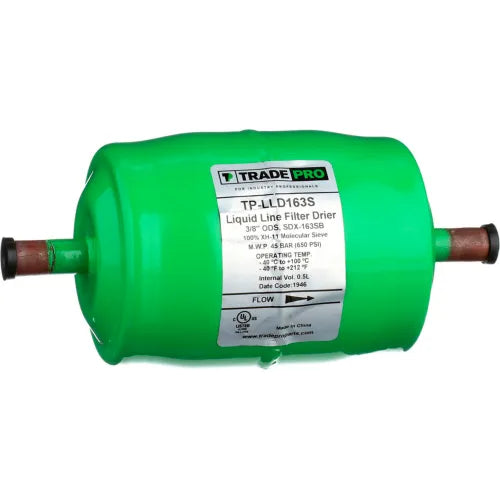

Tradepro tp-lld163s Liquid Line Filter Drier 16ci 3/8 inches ods

Product Description

The TRADEPRO TP-LLD163S liquid line filter driers offer protection for refrigeration and air-conditioning systems. Designed to capture moisture and solid particles, preventing acid build-up that can damage the compressor. Suitable for HCFC, HFC and CO refrigerants including R-410A, and their two associated oils.

• Solid copper ODS connections
• Plated steel SAE flare connections
• Increased drying capacity over 80% Molecular Sieve and 20% Activated lumina and cores
• Solid particle filtration down to 150 microns

Product Highlights

Protects refrigeration and AC systems from moisture and solid particles. Compatible with various refrigerants and oils.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-LLD163S
• Country of Origin: China

Technical Specifications

• Brand: TRADEPRO
• Refrigerant: CFC; HCFC; HFC
• For Use With: HCFC, HFC and CO refrigerants including R-410A
• Connection Type: C x C
• Inlet Connection Size: 3/8"
• Outlet Connection Size: 3/8"
• Line Drier Cubic Inch Size: 16
• Line Drier Type: Liquid Line Uni-Flo
• Diameter: 2.5"
• Material: Steel
