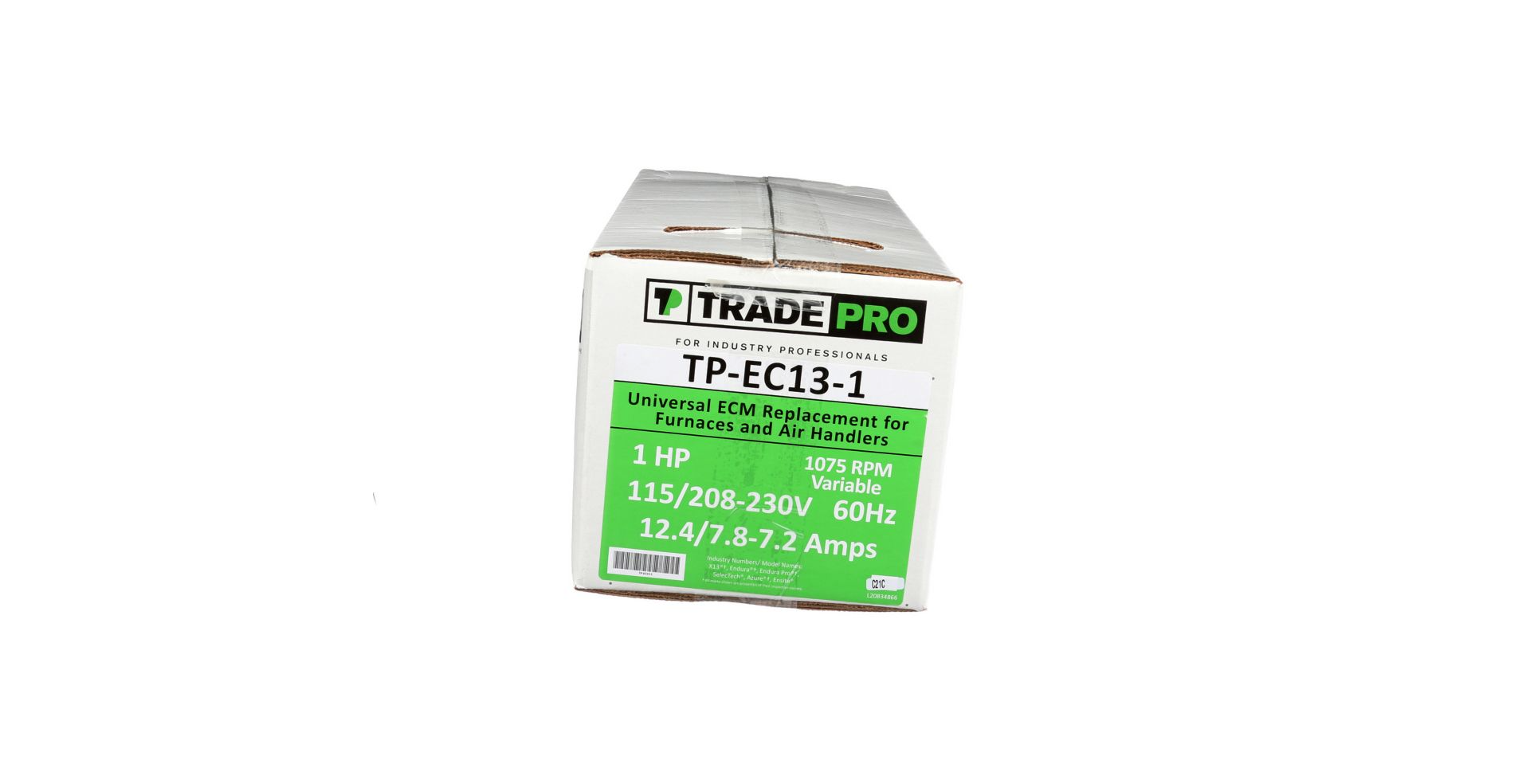

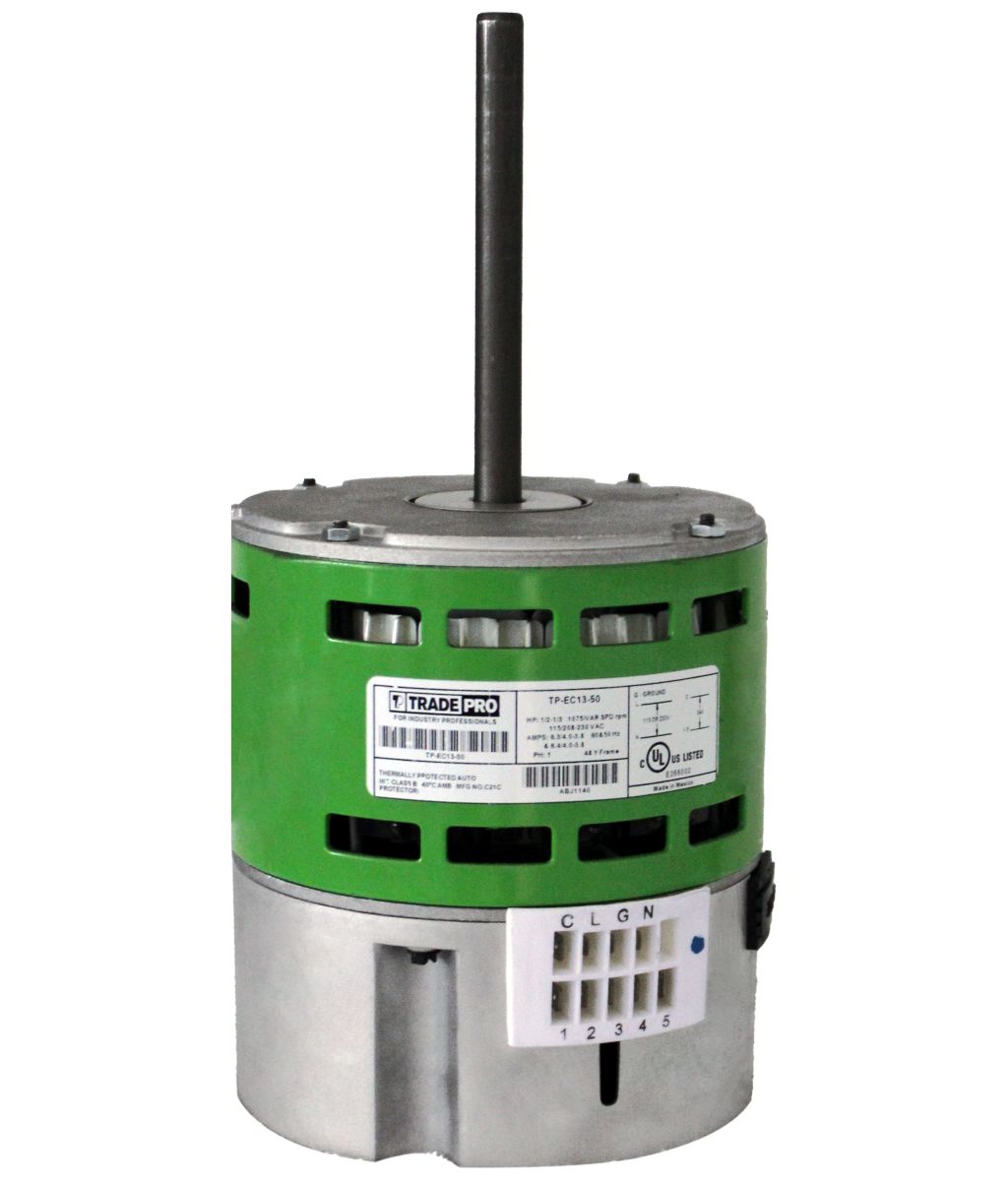

Tradepro TP-EC13-1 Blower Motor, X-13 ECM, Variable Speed, 1075 RPM, 1 HP

Product Description

The TRADEPRO TP-EC13-1 is a universal ECM replacement for furnaces and air handlers. It features improved reliability with built-in 6,000 Volt surge protection and industry-leading moisture protection. This constant torque ECM replaces X13, Endura Pro, and SelecTech models, and is pre-programmed with a universal program, so no programming is required.

• Universal ECM Replacement for Furnaces and Air Handlers
• Improved Reliability with built-in 6,000 Volt surge protection and industry-leading moisture protection
• Replaces X13, Endura Pro and SelecTech constant torque ECM

Product Highlights

The TRADEPRO TP-EC13-1 is ready to install and replaces thousands of OEM models. It operates in constant torque mode with up to 82% efficiency.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-EC13-1
• Country of Origin: MEX

Technical Specifications

• SKU: TP-EC13-1
• Amps: 7.2-12.4
• Basis Of Rotation View: Lead End
• Bearing Type: Ball
• Brand: TRADEPRO
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
• Motor Enclosure: Open Air Over (OPAO)
• Motor HP: 1
• Motor Type: ECM (Electronically Commutated Motor)
• Mounting Type: Belly Band
• NEMA Frame: 48Y
• Number of Speeds: Variable
• Phase: Single
• Poles: 10
• Prop 65: No
• Rotation: Reversible
• RPM: 1,075
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5.0"
• Substantial Commodity: Steel; Copper
• UPC: 786382142667
• Voltage: 115 VAC; 208-230 VAC
• Power Source: Corded Electric
• Type: Blower Motor
• Features: Variable
• Compatible Product: Central Air Conditioner
• MPN: TP-EC13-1
• Amperage: 3.9
• Part Number: TP-EC13-1 (Replaces various 1 HP X13 models)
• Manufacturer: TRADEPRO
• Part Type: X13 / Constant Torque ECM Blower Motor
• HP / RPM: 1 HP @ 1075 RPM
• Phase / Hertz: Single-phase (1PH) / 60 Hz
