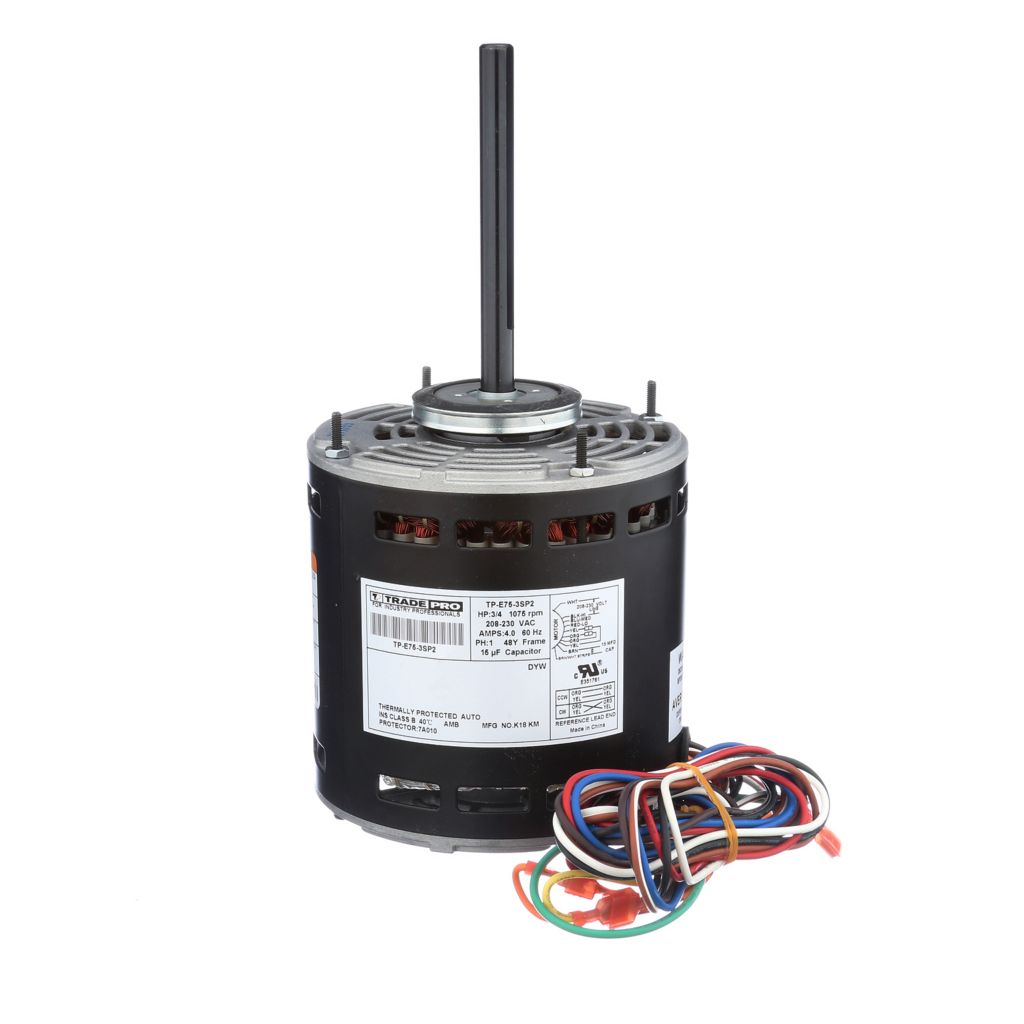

Tradepro TP-E75-3SP2 Direct Drive Blower Motor 3/4 HP 208/230V 5.4 Amp 1075 RPM 3-Speed

Product Description

The TRADEPRO TP-E75-3SP2 direct drive blower motor offers a combination of heavy-duty construction and rugged durability. This universal fixed fractional condenser motor operates at 208-230V, single phase with a 4.0 amp draw and three speeds: 800, 950, and 1075 RPM. It features input power to Hi-Pot and continuity testing.

• Universal fixed fractional condenser motor
• Dynamic self-aligning bearing with reversible direction
• Side shell mount is pre-drilled to accept mount wings and resilient mount wings

Product Highlights

Ideal for various applications requiring a durable and efficient motor, this TRADEPRO motor ensures reliable performance with its robust design and versatile features.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-E75-3SP2
• Country of Origin: MEX

Technical Specifications

• SKU: TP-E75-3SP2
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Brand: TRADEPRO
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
• Motor Enclosure: Open Air Over (OPAO)
• Motor HP: 3/4
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 3
• Phase: Single
• Poles: 6
• Rotation: Reversible
• RPM: 1,075
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• Voltage: 208-230 VAC
• Weight: 18.74
• Model: TRADE PRO TP-E75-3SP2
