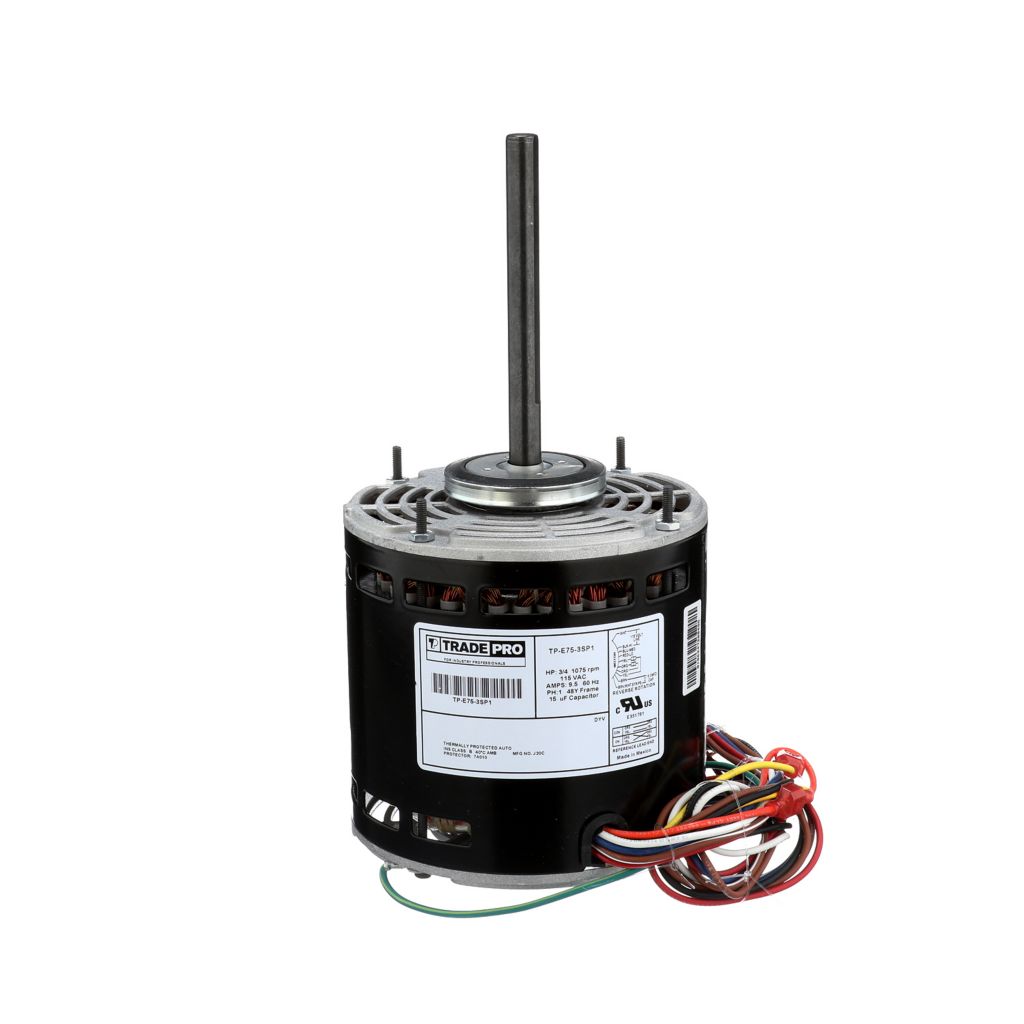

Tradepro TP-E75-3SP1 Direct Drive Blower Motor 3/4 HP 115V 9.5 Amp 3-Speed

Product Description

The TRADEPRO TP-E75-3SP1 direct drive blower motor is functionally tested during manufacturing and retested after final assembly. The fixed fractional motor offers a combination of heavy-duty construction and rugged durability. It is a universal fixed fractional condenser motor with 115V, single phase, and 9.5 amp. It has speeds of 800, 950, and 1075 RPM.

• TRADEPRO motors are 100% functionally tested
• Heavy duty construction
• Rugged durability

Product Highlights

This motor features a dynamic self-aligning bearing with reversible direction and a side shell mount pre-drilled to accept mount wings and resilient mount wings.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-E75-3SP1
• Country of Origin: MEX

Technical Specifications

• SKU: TP-E75-3SP1
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Brand: TRADEPRO
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
• Motor Enclosure: Open Air Over (OPAO)
• Motor HP: 3/4
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 3
• Phase: Single
• Poles: 6
• Prop 65: No
• Rotation: Reversible
• RPM: 1,075
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• UPC: 816075029842
• Voltage: 115 VAC
• Weight: 10.68
• Power Source: Corded Electric
• Type: Evaporator Motor
