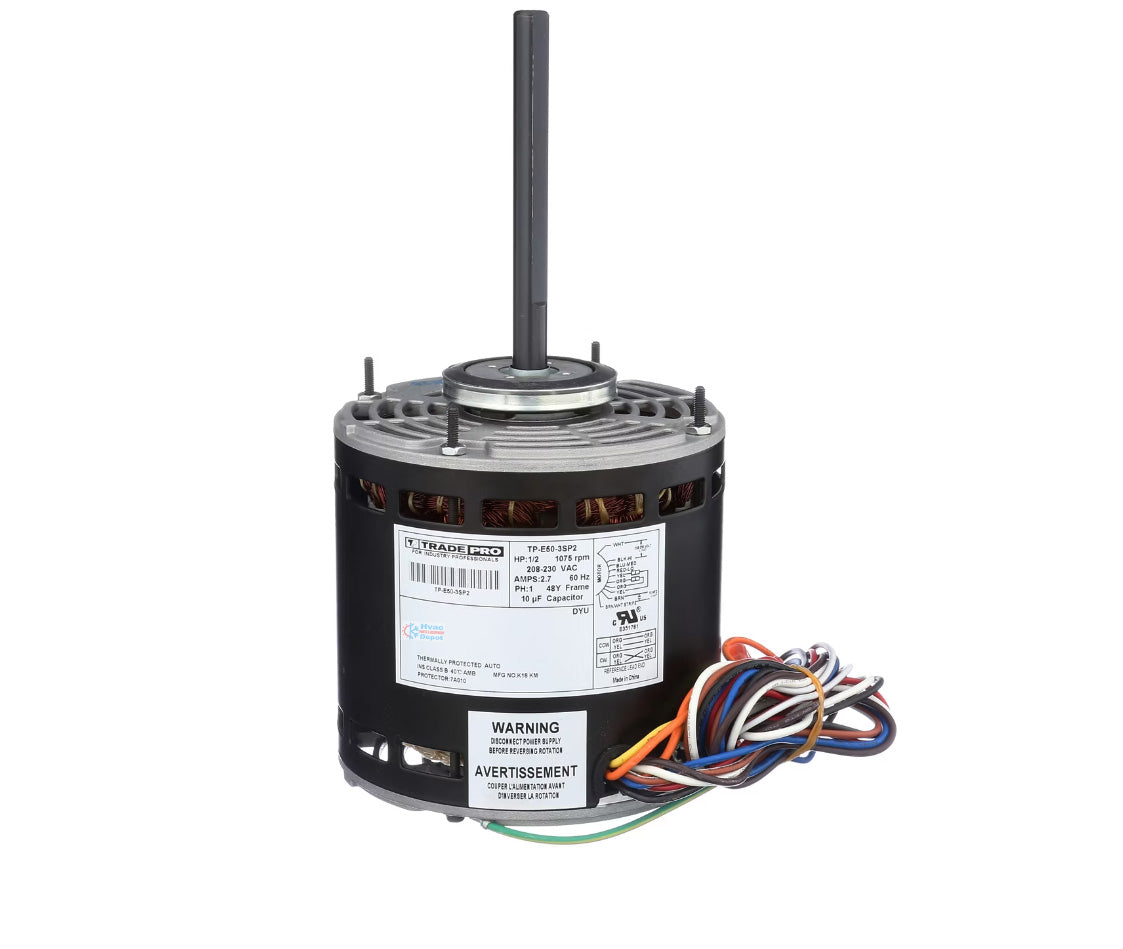

Tradepro TP-E50-3SP2 Evaporator Blower Motor 1/2 HP 208/230V 1075 RPM 3-Speed

Product Description

The TRADEPRO TP-E50-3SP2 is an evaporator blower motor designed for air distribution in air handlers and furnaces. This 1/2 HP motor is a PSC type motor, optimized for 208/230V single-phase environments. It features a 48-frame size and multiple mounting options. TRADEPRO motors are 100% functionally tested during manufacturing.

• Genuine OEM Quality: Authentic TRADEPRO replacement ensures factory-spec torque and reliable multi-speed performance.
• Versatile 1/2 HP Design: Robust motor provides reliable airflow for standard residential air handlers and furnaces.
• 3-Speed Capability: Multiple speed taps allow for precise airflow adjustment for optimal comfort and humidity control.

Product Highlights

The TRADEPRO TP-E50-3SP2 ensures factory-spec torque and reliable multi-speed performance. It provides airflow for air handlers and furnaces with multiple speed taps for airflow adjustment.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-E50-3SP2
• Country of Origin: MEX

Technical Specifications

• SKU: TP-E50-3SP2
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Brand: TRADEPRO
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
• Motor Enclosure: Open Air Over (OPAO)
• Motor HP: 1/2
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 3
• Phase: Single
• Poles: 6
• Prop 65: No
• Rotation: Reversible
• RPM: 1075 RPM (3 Speeds)
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• Voltage: 208-230 VAC
• Part Number: TP-E50-3SP2
• Catalog #: E50-3SP2
• Manufacturer: TRADEPRO (Distributed by Carrier Enterprise)
• Part Type: Evaporator Blower Motor (PSC)
• Horsepower: 1/2 HP
• Nominal Voltage: 208-230 VAC
• Full Load Amps: 5.0 A
• Frame Size: 48
• Shaft Size: 1/2 inch Diameter x 4.0 inches Length
• Capacitor Required: 7.5 MFD / 370 VAC (Not Included)
