Tradepro TP-E33-3SP1 Direct Drive Blower Motor 1/3 HP 115V 3-Speed

Product Description

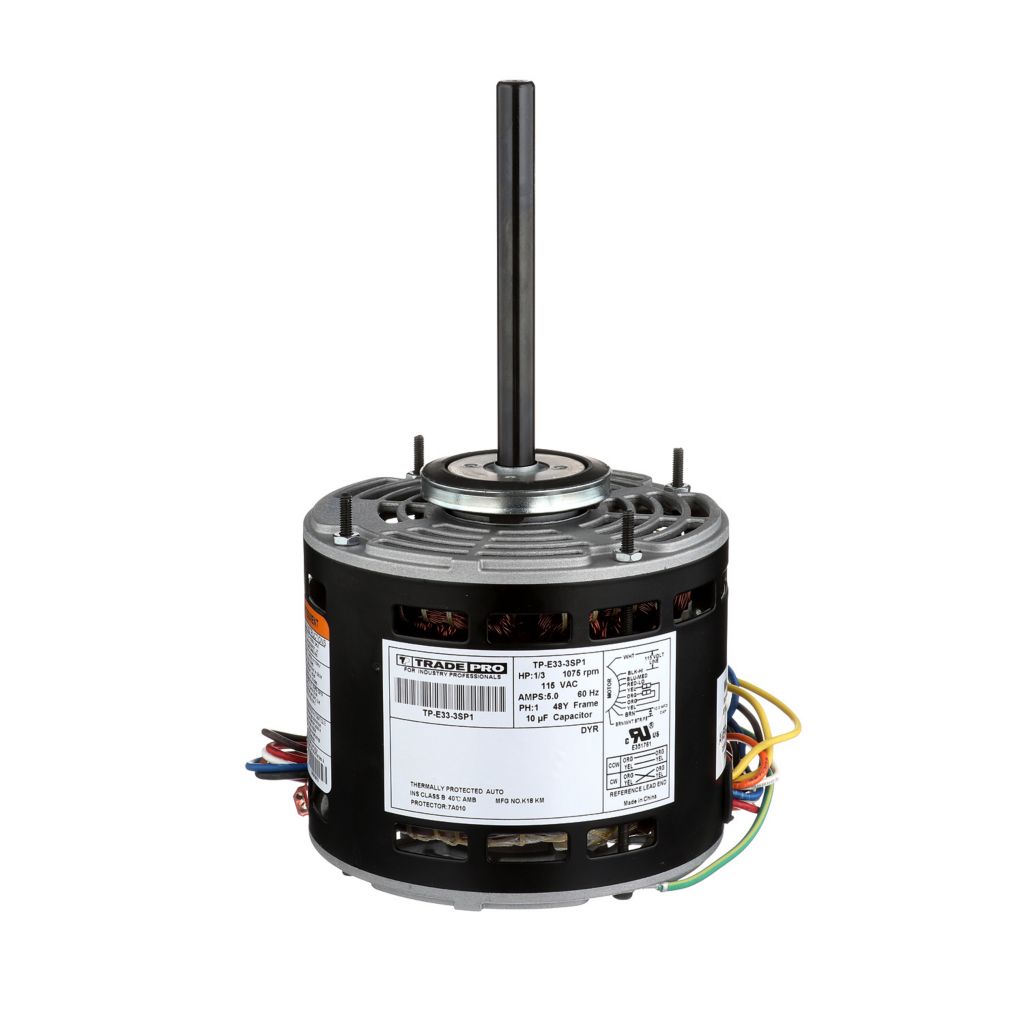

The TRADEPRO TP-E33-3SP1 direct drive blower motor is 100% functionally tested during manufacturing and retested after final assembly. This fixed fractional motor offers a combination of heavy-duty construction and rugged durability. It is suitable for use as an air conditioner motor or evaporator motor.

• 1/3 HP power
• Operates at 115V
• Features 3-speed settings with a maximum of 1075 RPM

Product Highlights

This TRADEPRO motor is designed for durability and reliable performance in various applications. It features reversible rotation and a self-aligning bearing.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-E33-3SP1
• Country of Origin: MEX

Technical Specifications

• SKU: TP-E33-3SP1
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Brand: TRADEPRO
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
• Motor Enclosure: Open Air Over (OPAO)
• Motor HP: 1/3
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 3
• Phase: Single
• Poles: 6
• Rotation: Reversible
• RPM: 1,075
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• Voltage: 115 VAC
• Weight: 12.37
• Type: PSC Evaporator Motor
• MPN: TP-E33-3SP1
• Product Type: Air Conditioner
• Prop 65: No
