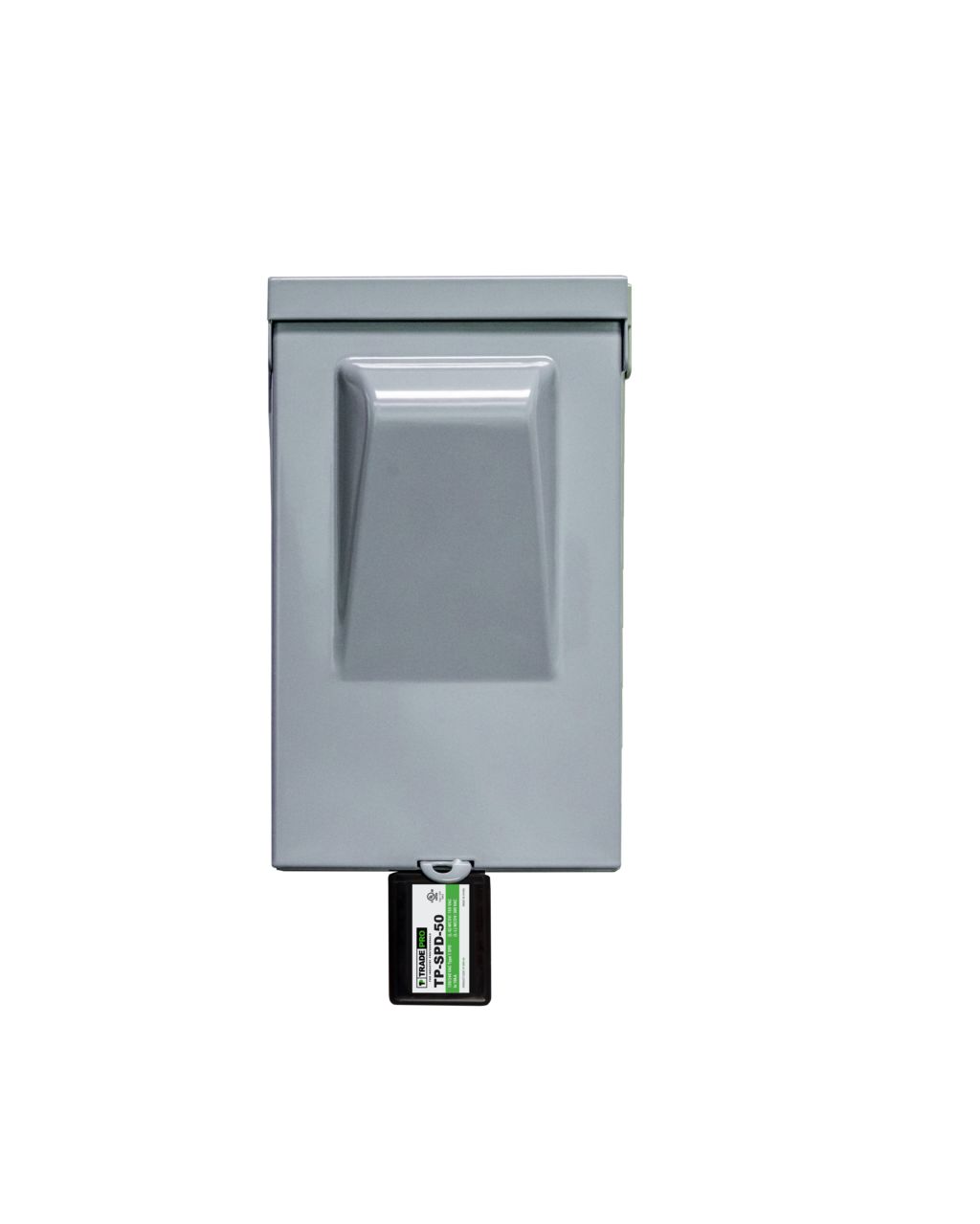

Tradepro TP-DIS+SPD-60NF Tp-Spd-50 with 60A Non-Fused Disconnect Box

Product Description

The TRADEPRO TP-DIS+SPD-60NF is a disconnect box with a pre-installed TP-SPD-50 surge protector. The TP-SPD-50 is tabbed into the disconnect to avoid code violations with multiple wires being lugged in. Designed to protect single-phase 120/240-V air conditioning, heat pumps, and ductless mini-split systems from transient over-voltage and natural-cause surges.

• Non Fused Disconnect Box
• Long-Lasting Gas Discharge Tube Technology
• TFMOV Technology
• Green LED Easily Indicates Protection
• Designed to protect all single phase, 120/240-V air conditioning, heat pumps and ductless mini-split systems (DMSS) from transient over-voltage and natural-cause surges.

Product Highlights

Disconnect box with pre-installed surge protector protects against voltage spikes.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-DIS+SPD-60NF
• Country of Origin: CHN

Technical Specifications

• SKU: TP-DIS+SPD-60NF
• Brand: TRADEPRO
• Country of Origin: CHN
• Cycle/Hertz: 50/60 Hz
• Full Load Amps: 60
• Phase: Single
• Prop 65: Yes
• Voltage: 120/240 VAC
• UOM: EA
• Height: 5.38
• Length: 10.5
• Width: 2.75
