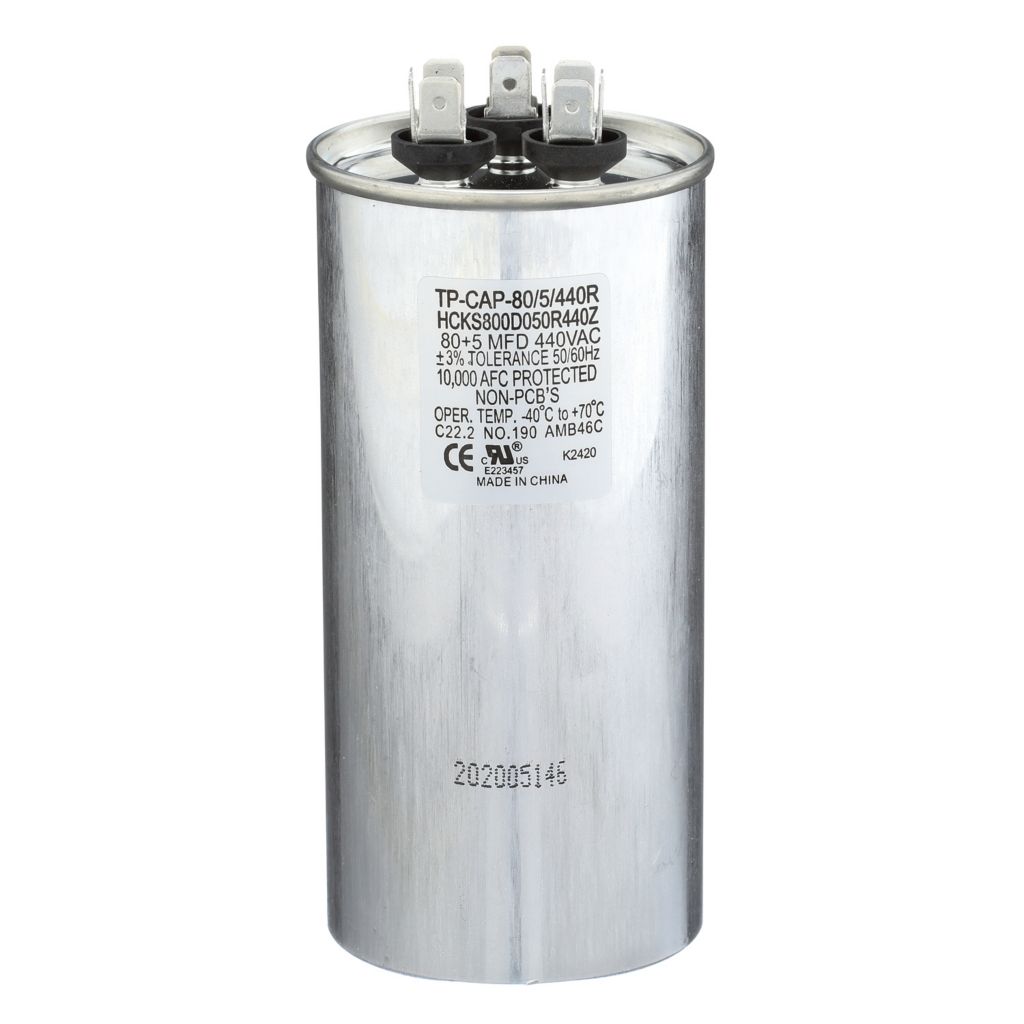

Tradepro TP-CAP-80/5/440R Run Capacitor 80/5 Mfd 440 Volt

Product Description

The TRADEPRO TP-CAP-80/5/440R is a run capacitor with 80/5 uF / MFD and 440 VAC. These non-PCB capacitors have an internal pressure interrupter for safety. It meets Tecumseh H-115 and EIA 456 specifications and is UL & CUL Listed and RoHS Compliant. Designed for years of reliable operation.

• Suitable for 370 or 440 VAC installations
• Temperature Range: -40°C / +70°C
• Meets Tecumseh H-115 , EIA 456 Specifications , UL & CUL Listed , RoHS Compliant

Product Highlights

This run capacitor is UL/CSA recognized and protected to 10,000 AFC. Every capacitor meets EIA-456-A and goes through extensive electrical testing before shipping.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-CAP-80/5/440R-A
• Country of Origin: USA

Technical Specifications

• Capacitance: 80 Microfarad
• Item Shape: Round
• Operating Voltage: 440 Volts
• Capacitance Tolerance: 6
• Maximum Voltage: 440 Volts
• Material Type: Copper
• Brand: TRADEPRO
• Capacitor MFD F: 80/5
• Capacitor Type: Dual Run Capacitor
• Country of Origin: CHN
• Cycle/Hertz: 50/60 Hz
• Prop 65: Yes
• Shape: Round
• Voltage: 370/440 VAC
• Hertz: 50/60 Hz
• Temperature: -40 F to 158 F (-40 C to 70 C)
• Material: Aluminum
• Certifications: UL, CSA, EIA-456-A
• CSA Listing: Yes
