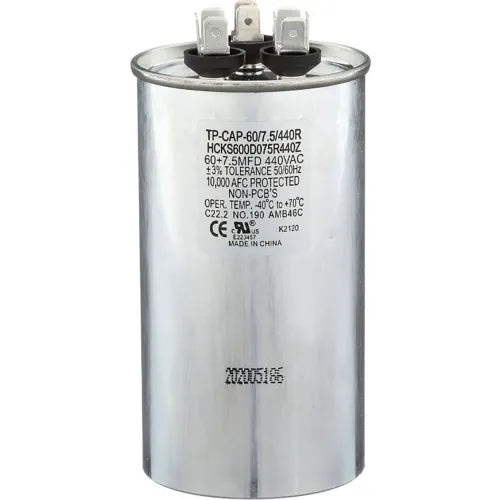

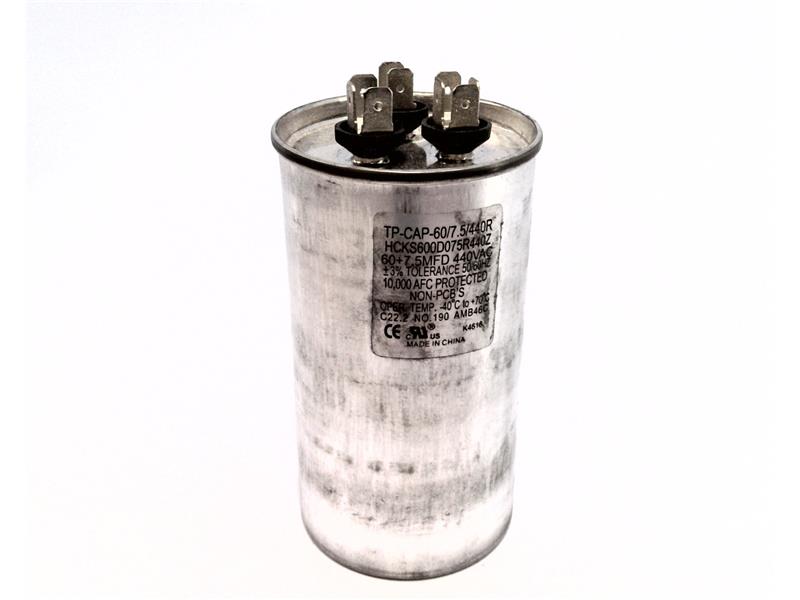

Tradepro TP-CAP-60/7.5/440R Run Capacitor 60/7.5 MFD 440V

Product Description

The TRADEPRO TP-CAP-60/7.5/440R motor-run capacitor is UL/CSA recognized and protected to 10,000 AFC. Meeting EIA-456-A standards, it undergoes extensive electrical testing. This OEM quality capacitor is designed for years of reliable operation, with an operating temperature of –40° C to 70°C.

• UL/CSA recognized
• Protected to 10,000 AFC
• Meets EIA-456-A standards

Product Highlights

The capacitor has a 60,000-hour life at rated temperature and is vacuum sealed to eliminate leaks and contaminants.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-CAP-60/7.5/440R
• Country of Origin: CHN

Technical Specifications

• Brand: TradePro
• Hertz: 50/60 Hz
• Shape: Round
• Voltage: 370/440 VAC
• Material: Aluminum
• Temperature: -40°F to 158°F (-40°C to 70°C)
• Width: 2-7/16 in
• Height: 2-7/16 in
• Length: 4-13/16
• Weight: 0.8 lbs
• Diameter: 2-7/16 in
• Capacitor Type: 60/7.5
• CSA Listing: Yes
• Certifications: UL, CSA, EIA-456-A
• Capacitor MFD F: 60/7.5
• Composition: Aluminum
• Country Of Origin: CHN
• Cycle/Hertz: 50/60 Hz
• Overall Length: 4"
• Prop 65: Yes
• Standards: EIA-456-A
• Type: Run Capacitor (Dual)
• UL Recognized: Yes
• UPC Barcode: 817506023682
• MPN: TP-CAP-60/7.5/440R
• Part #: TP-CAP-60/7.5/440R
