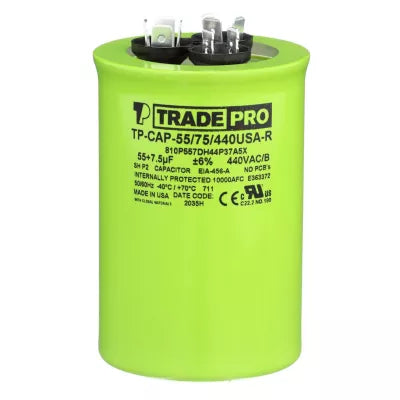

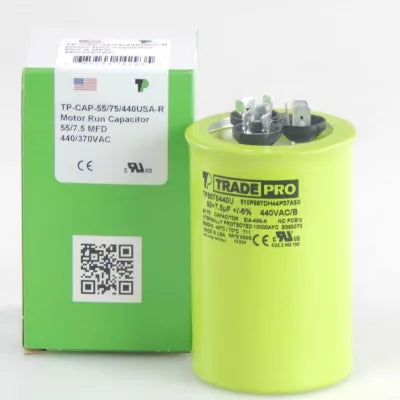

Tradepro tp-cap-55/75/440usar 55/7.5 Mfd 440V Dual Run Capacitor

Product Description

The TRADEPRO tp-cap-55/75/440usar is a round dual run capacitor rated at 55/7.5 microfarads (MFD) and 440 volts, manufactured in the USA. Dual run capacitors serve both the compressor and the condenser fan motor from a single component, reducing part count and simplifying replacement. This capacitor stores and releases electrical energy to maintain the phase shift required for single-phase motor starting and running. It is a direct-service component installed by licensed HVAC technicians during routine maintenance, system repairs, or compressor and fan motor replacements on residential and light commercial cooling equipment.

This capacitor is suited for residential and light commercial HVAC applications where a single round capacitor serves both the compressor and condenser fan motor simultaneously. The 55 MFD side supports the compressor load while the 7.5 MFD side supports the fan motor. The 440-volt rating accommodates standard single-phase residential systems and provides an additional voltage margin over 370-volt units, making it a common upgrade choice in high-heat environments. It is sold individually and is appropriate for split-system air conditioners and heat pumps with matching MFD and voltage requirements.

Key Features

• Dual run design powers both compressor and condenser fan motor from one capacitor
• 55/7.5 MFD rating covers common compressor and fan motor combinations
• 440-volt rating provides additional margin over standard 370-volt applications
• Round form factor fits standard capacitor brackets and mounting straps
• Manufactured in the USA

Compatibility

Designed as an OEM-style replacement dual run capacitor for single-phase residential and light commercial air conditioners and heat pumps requiring a 55/7.5 MFD, 440-volt round capacitor.

Installation Notes

Capacitor replacement is performed by licensed HVAC technicians. Before servicing, disconnect and lock out all power to the unit at the disconnect and verify the capacitor is fully discharged before handling terminals, as capacitors can retain a dangerous charge even after power removal. Use an insulated discharge tool and a multimeter capable of MFD measurement to confirm the replacement capacitor matches the required ratings. Follow all applicable local electrical codes during installation.

Technical Specifications

• Capacitance: 55/7.5 MFD
• Voltage Rating: 440 volts
• Shape: Round
• Country of Origin: USA
• Unit of Measure: Each

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: tp-cap-55/75/440usar
