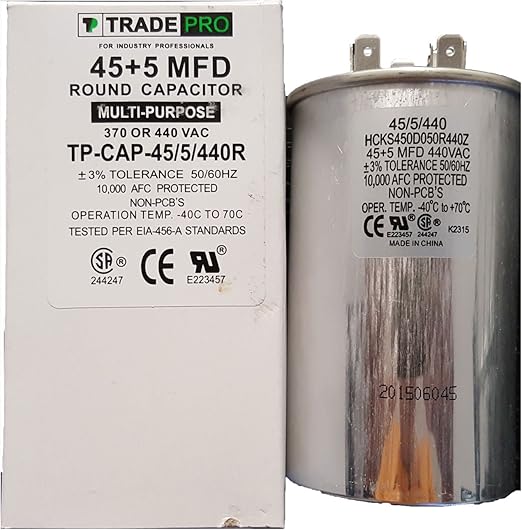

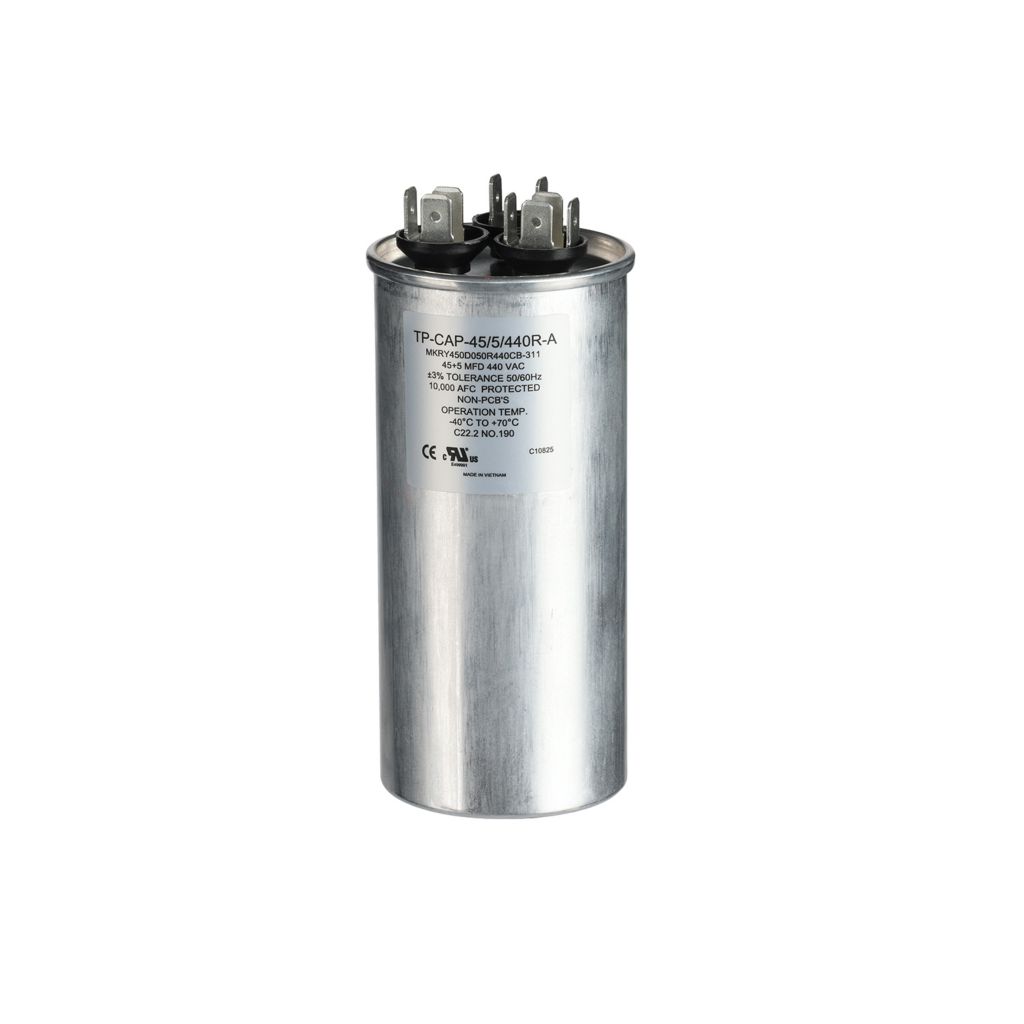

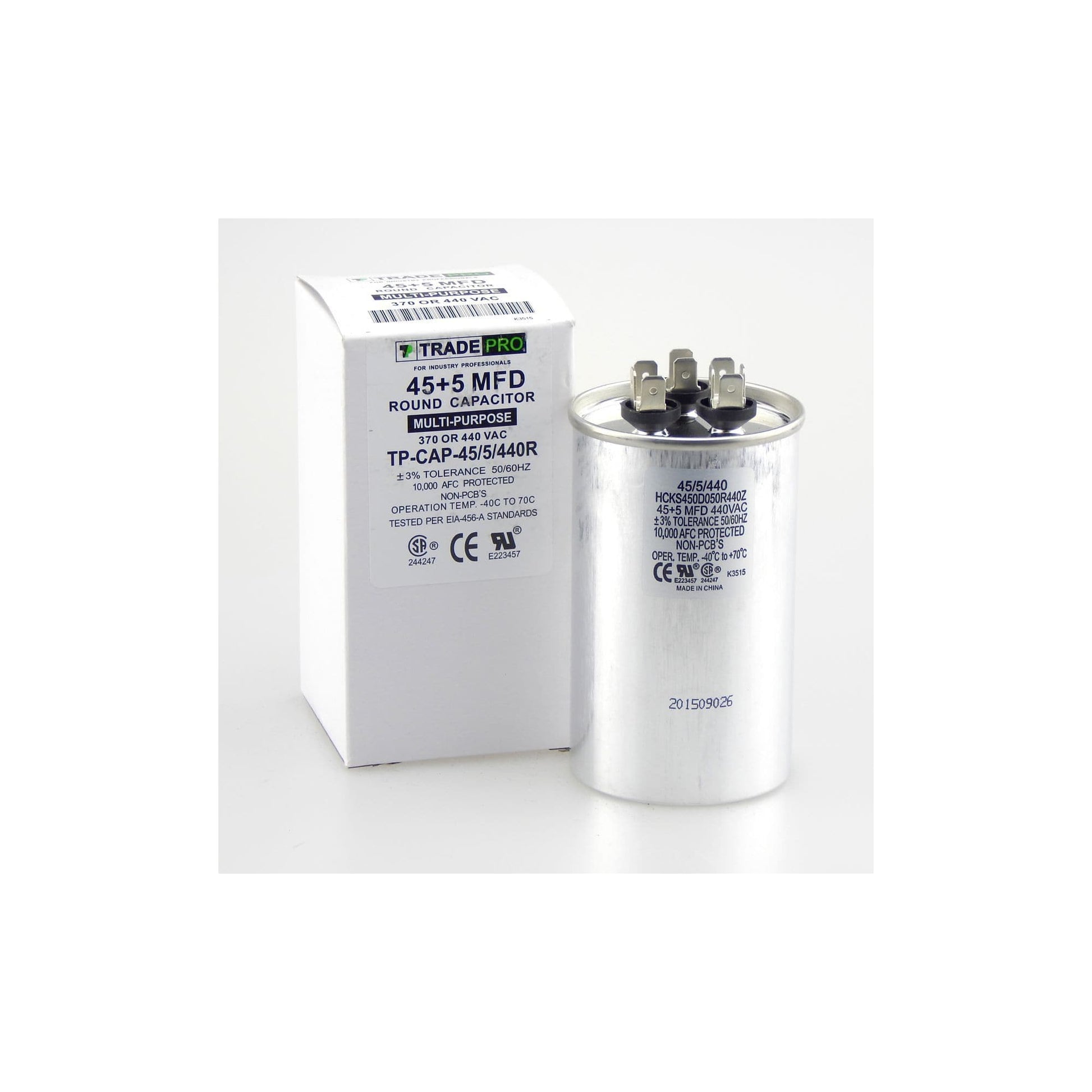

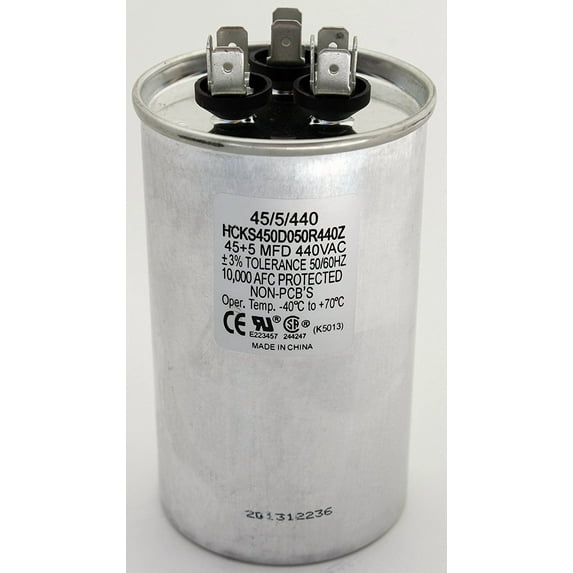

Tradepro TP-CAP-45/5/440R-A 45+5 MFD 440 Volt Round Capacitor TP-CAP-45/5/440R-A

Product Description

The TRADEPRO TP-CAP-45/5/440R-A is a 45+5 MFD 440 Volt AC capacitor that replaces both 370 & 440 VAC capacitors. It supports two electric motors, such as in large air conditioner or heat pump units, with both a fan motor and a compressor motor. It saves space by combining two physical capacitors into one case.

• 45+5 uf or MFD 440 Volt AC Capacitor. Replaces BOTH 370 & 440 VAC capacitors
• Multi-Purpose Oval Capacitor for 370 or 440 Volt Applications
• Rust-Free Aluminum Casing built to withstand Extreme Weather Conditions

Product Highlights

This industrial grade replacement capacitor is designed for central air-conditioners, heat pumps, condenser fan motors, and compressors. It is UL/CSA Recognized and Protected to 10,000 AFC.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-CAP-45/5/440R-A
• Country of Origin: China

Technical Specifications

• Capacitance: 45 Microfarad
• Brand: TRADEPRO
• Material: Copper
• Shape: Round
• Operating Voltage: 440 Volts
• Volts: 440 VAC
• Model: TP-CAP-45/5/440R
• SKU: TP-CAP-45/5/440R-A
• Capacitor MFD µF: 45/5
• Capacitor Type: Dual Run Capacitor
• Country of Origin: CHN
• Cycle/Hertz: 50/60 Hz
• Prop 65: Yes
• UPC: 810178523009
• Voltage: 370/440 VAC
• Hertz: 50/60 Hz
• Temperature: -40°F to 158°F (-40°C to 70°C)
• Certifications: UL, CSA, EIA-456-A
• CSA Listing: Yes
