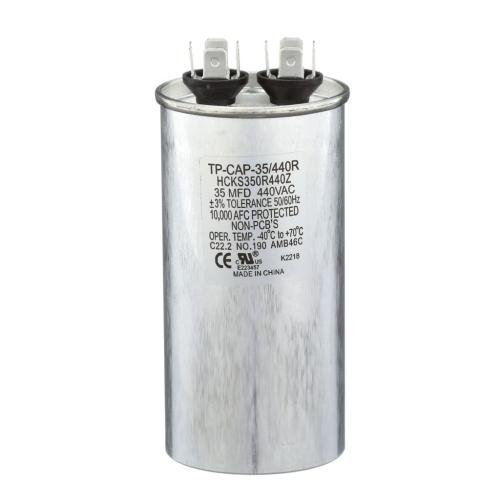

Tradepro TP-CAP-35/440R Round Run Capacitor 35 Mfd 440V

Product Description

The TRADEPRO TP-CAP-35/440R is a single-section round run capacitor rated at 35 microfarads (MFD) and 440 volts AC. Run capacitors provide the continuous phase-shifted current that keeps single-phase PSC motors running at correct speed and efficiency. This unit is installed in the capacitor compartment of residential and light-commercial HVAC equipment, typically serviced by a licensed HVAC technician during routine maintenance or motor replacement calls. The round form factor is the most common physical style found in split-system condensers and air handlers across the industry.

This capacitor is suited for use in single-phase PSC compressor and fan motor circuits in residential central air conditioning systems, heat pumps, and package units. It is a direct replacement for failed or weakened run capacitors of matching MFD and voltage ratings. Technicians frequently swap these during compressor hard-start diagnostics, fan motor replacements, or seasonal tune-ups when capacitance readings fall outside the acceptable tolerance range on a capacitor tester.

Key Features

• 35 MFD capacitance rating for single-section PSC motor circuits
• 440 VAC rating — compatible with both 370-volt and 440-volt applications
• Round case design fits standard capacitor brackets and clips in most residential condensers and air handlers
• Suitable for compressor or condenser fan motor run-capacitor positions

Compatibility

Designed as an OEM-style replacement for residential and light-commercial HVAC run capacitors rated 35 MFD at 440 VAC in a round form factor.

Installation Notes

Installation should be performed by a qualified HVAC technician following applicable local codes and industry safety practices. Always disconnect and lock out power to the unit before accessing the capacitor compartment, and discharge any stored voltage in the existing capacitor using an insulated resistor or discharge tool before handling. The replacement capacitor must match the original MFD rating within the motor manufacturer's stated tolerance and must meet or exceed the original voltage rating. Secure the capacitor in the mounting bracket so it does not contact adjacent components or refrigerant lines.

Technical Specifications

• Capacitance: 35 MFD
• Voltage Rating: 440 VAC
• Configuration: Single section
• Shape: Round
• Type: Run capacitor

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-CAP-35/440R
