Tradepro tp-cap-25/5/440usar 25/5 Mfd 440V Dual Run Capacitor

Product Description

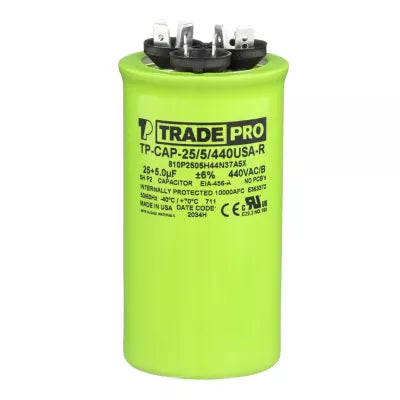

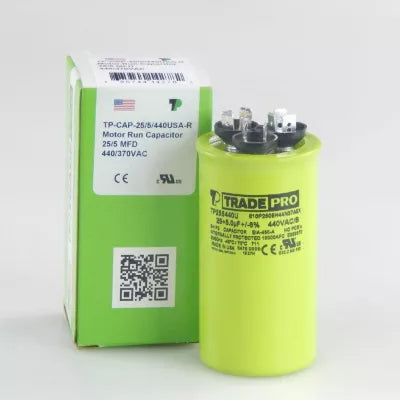

The TRADEPRO tp-cap-25/5/440usar is a round dual run capacitor rated at 25/5 microfarads (MFD) and 440 volts, manufactured in the USA. Dual run capacitors serve two motor windings simultaneously, supporting both the compressor and the condenser fan motor from a single component. This design reduces parts count and simplifies service calls. Licensed HVAC technicians install this capacitor as a direct replacement in residential and light commercial air conditioning and heat pump systems. Its round form factor and 440-volt rating make it a widely used service part in the trade.

This capacitor is suited for residential split-system air conditioners and heat pumps where a single dual run capacitor powers both the compressor start winding and the condenser fan motor. The 25 MFD section supports the compressor, while the 5 MFD section supports the condenser fan motor. The 440-volt rating is compatible with both 370-volt and 440-volt applications, giving technicians flexibility across a broad range of condensing unit brands and vintages.

Key Features

• Dual run capacitor rated 25/5 MFD serves compressor and fan motor from one unit
• 440-volt rating compatible with standard 370-volt and 440-volt condenser applications
• Round form factor fits standard capacitor mounting brackets and discharge kits
• USA manufactured construction
• Sold individually (each)

Compatibility

Designed as an OEM-style replacement dual run capacitor for residential and light commercial air conditioning and heat pump condensing units requiring a 25/5 MFD, 440-volt round capacitor.

Installation Notes

Capacitor replacement is performed by licensed HVAC technicians. Always disconnect and lock out power to the condensing unit before servicing. Capacitors store a charge even after power is removed — discharge the capacitor safely using an approved discharge tool or resistor before handling terminals. Verify MFD ratings and voltage rating match the equipment nameplate before installation.

Technical Specifications

• Capacitance: 25/5 MFD
• Voltage Rating: 440 volts
• Configuration: Dual Run
• Shape: Round
• Country of Origin: USA
• Sold As: Each

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: tp-cap-25/5/440usar
