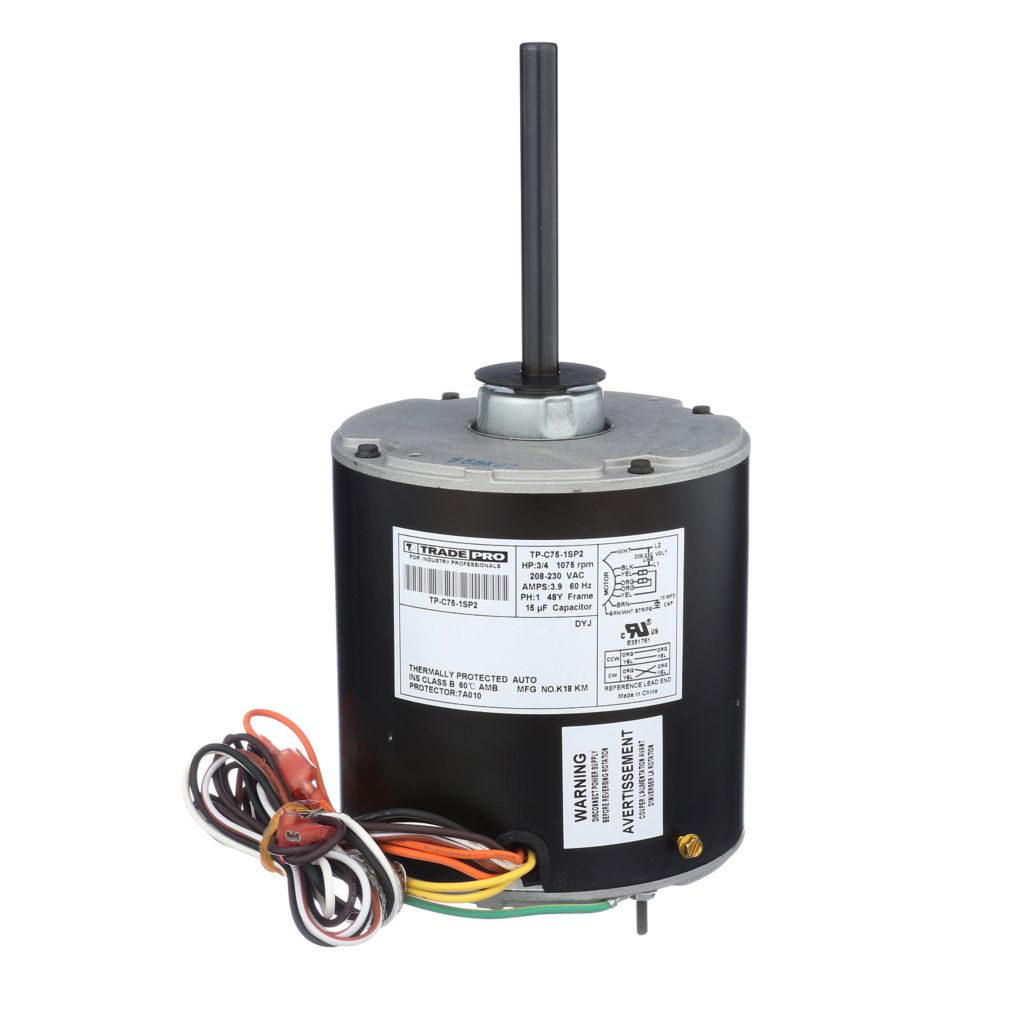

Tradepro TP-C75-1SP2 Condenser Fan Motor 3/4 HP 208/230V 1-Speed

Product Description

The TRADEPRO TP-C75-1SP2 condenser fan motor is functionally tested during manufacturing and retested after final assembly. This fixed fractional motor offers a combination of heavy-duty construction and rugged durability. It is a universal fixed fractional condenser motor, operating at 208-230V, single phase, and 3.9 amps, with a 48Y frame and a 5" keyed shaft.

• Universal fixed fractional condenser motor
• Mounts in any position
• Dynamic self-aligning bearing with reversible direction

Product Highlights

The TRADEPRO TP-C75-1SP2 is ideal for various applications, including Amana, Carrier, Goodman, LENNOX, Rheem, Ruud, and Trane systems.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-C75-1SP2
• Country of Origin: China

Technical Specifications

• SKU: TP-C75-1SP2
• Amps: 3.9
• Basis Of Rotation View: Lead End
• Bearing Type: Sleeve
• Brand: TRADEPRO
• Capacitor MFD F: 15
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Full Load Amps: 3.9
• Insulation Class: B
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor HP: 3/4
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 1
• Phase: Single
• Poles: 6
• Rotation: Reversible
• RPM: 1,075
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• Voltage: 208-230 VAC
• Compatible Brand: For Amana, For Carrier, For Goodman, For LENNOX, For Rheem, For Ruud, For Trane
• Type: Blower Motor
• Power Source: Corded Electric
• Model: TPC751SP2
