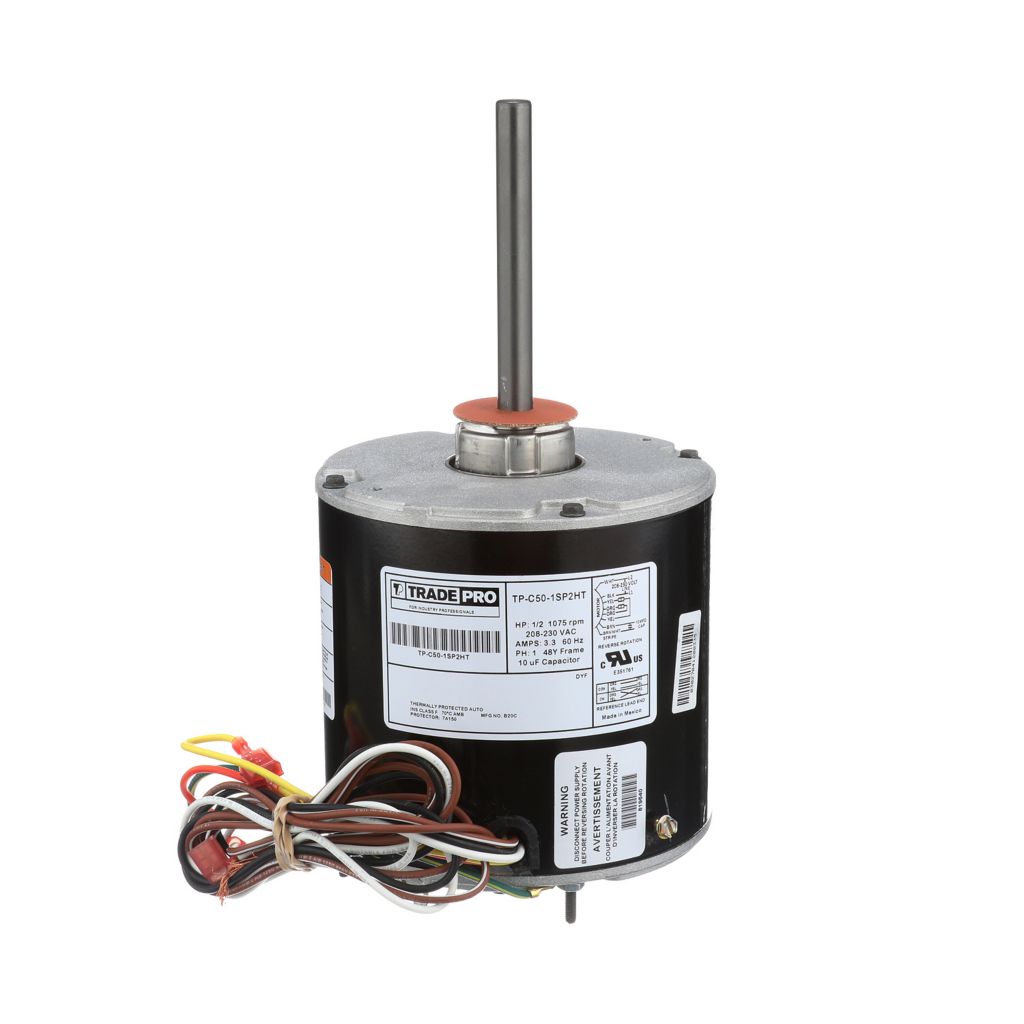

Tradepro TP-C50-1SP2HT Condenser Fan Motor 1/2 HP 208/230V 1075 RPM Single Speed

Product Description

The TRADEPRO TP-C50-1SP2HT condenser fan motor is functionally tested during manufacturing and retested after final assembly. This universal fixed fractional condenser motor features heavy-duty construction and rugged durability. It operates at 208-230V single phase with a 3.3 amp draw and is designed for side shell mounting.

• 70°C Hi-Temp
• 48Y frame, 5" keyed shaft, 1/2" diameter
• Dynamic Self Aligning bearing, reversible direction

Product Highlights

Ideal for various mounting positions, this motor ensures reliable performance with its robust design and comprehensive testing.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-C50-1SP2HT
• Country of Origin: MEX

Technical Specifications

• SKU: TP-C50-1SP2HT
• Amps: 3.3
• Basis Of Rotation View: Lead End
• Bearing Type: Ball
• Brand: TRADEPRO
• Capacitor MFD: 10
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Full Load Amps: 3.3
• Insulation Class: F
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor HP: 1/2
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 1
• Phase: Single
• Poles: 6
• Prop 65: No
• Protection: Yes
• Rotation: Counter Clockwise (CCW)
• RPM: 1,075
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• Voltage: 208-230 VAC
