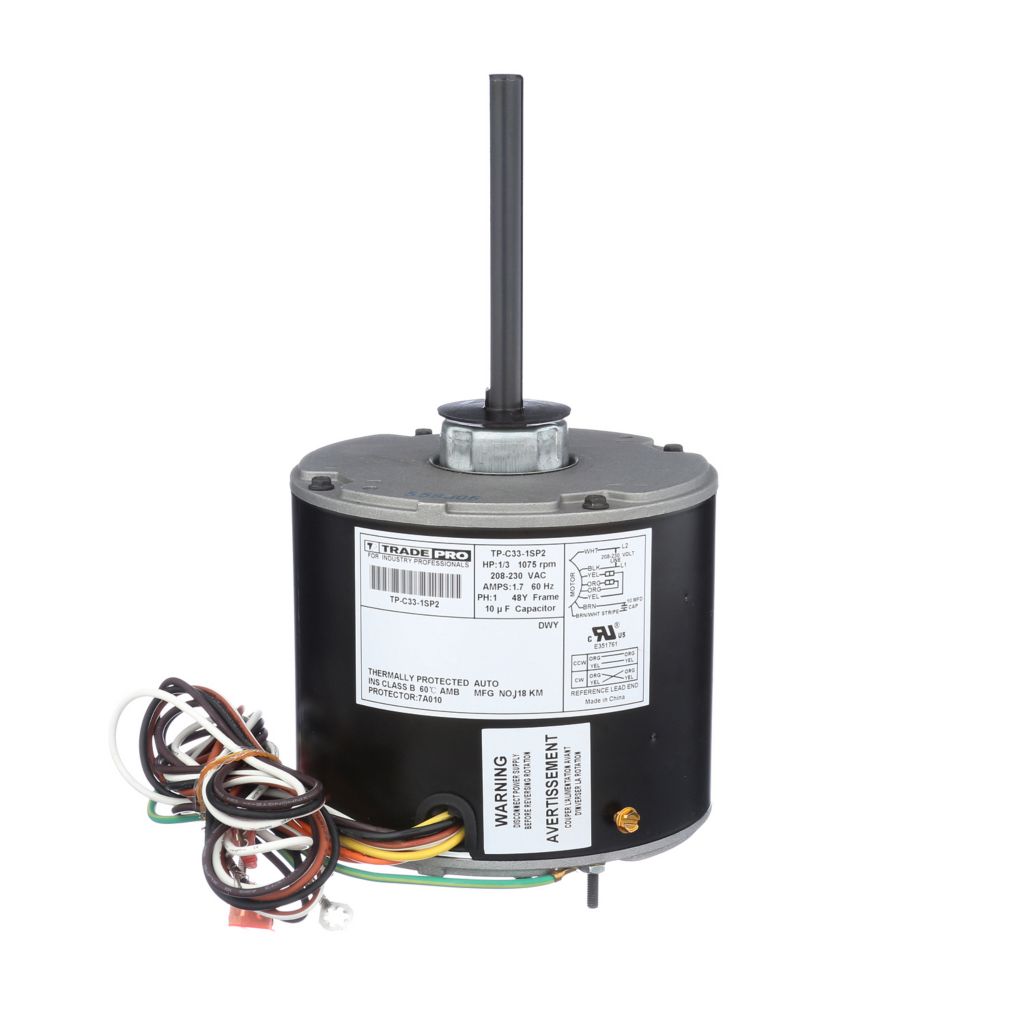

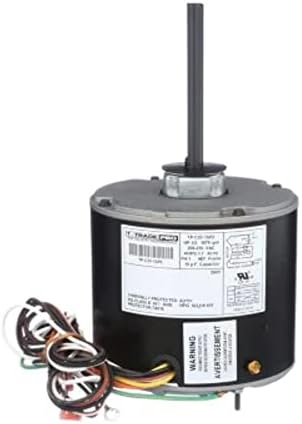

Tradepro TP-C33-1SP2 Condenser Fan Motor 0.33 Horsepower 1075 RPM

Product Description

The TRADEPRO TP-C33-1SP2 is a 1-speed condenser fan motor operating at 0.33 horsepower and 1075 RPM. Designed with a universal fixed fractional design, it features heavy-duty construction and rugged durability. This motor is 100% functionally tested during manufacturing and retested after final assembly, ensuring reliability and performance. It is suitable for various applications requiring a durable and efficient fan motor.

• Universal Fixed Fractional Design
• Heavy Duty Construction
• Rugged Durability

Product Highlights

Durable condenser fan motor with fixed fractional design, tested for reliability.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-C33-1SP2
• Country of Origin: MEX

Technical Specifications

• Brand: TradePro
• Speed: 1075 RPM
• Voltage: 208-230 VAC
• Horsepower: 0.33 Horsepower
• Material: Copper
• Amps: 1.7
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Full Load Amps: 1.7
• NEMA Frame: 48Y
• Number of Speeds: 1
• Motor Type: PSC (Permanent Split Capacitor)
• Rotation: Reversible
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Phase: Single
• RPM: 1075
• Poles: 6
• Duty: (S1) Continuous Running Duty
• Insulation Class: B
