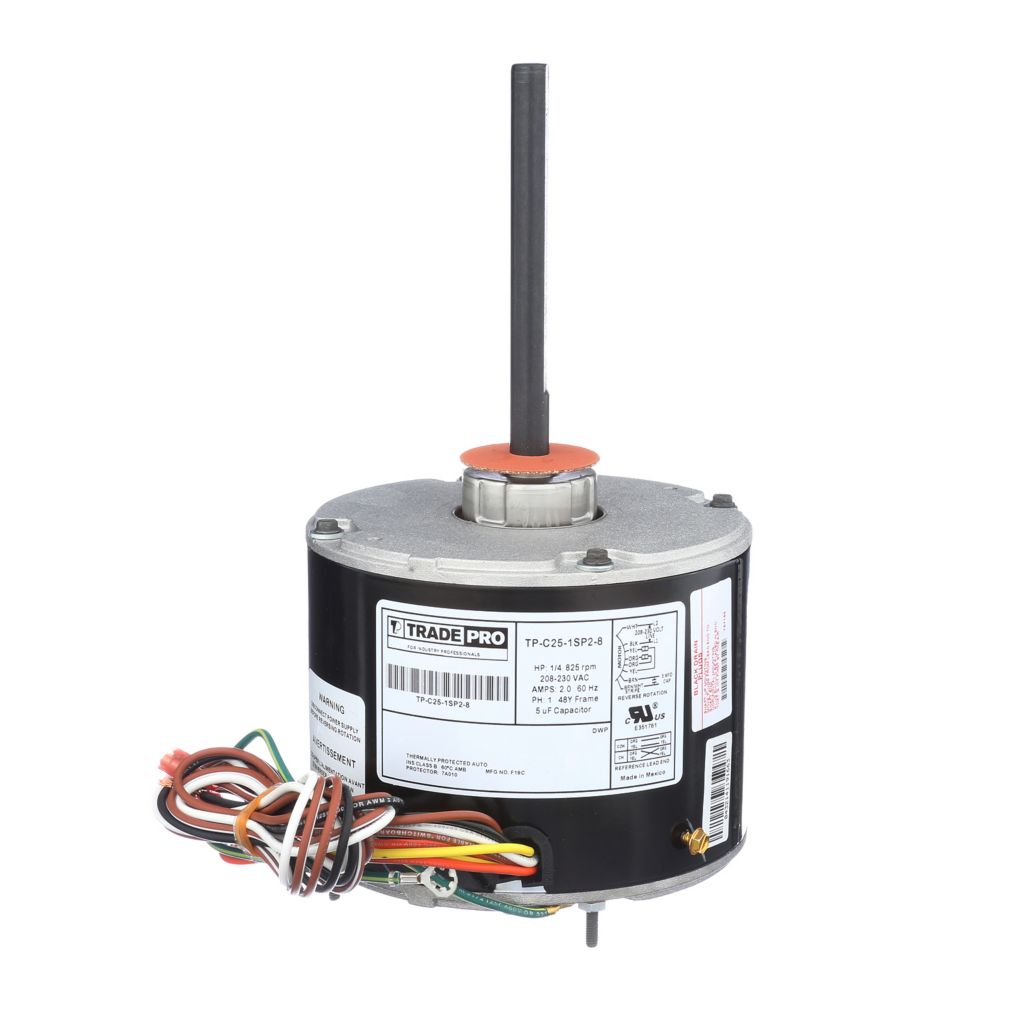

Tradepro TP-C25-1SP2-8 Condenser Fan Motor 1/4 HP 825 RPM

Product Description

The TRADEPRO TP-C25-1SP2-8 condenser fan motor is 100% functionally tested during manufacturing and retested after final assembly. This fixed fractional motor offers a combination of heavy-duty construction and rugged durability. It is a universal fixed fractional motor with single phase and 2.0 amp.

• Universal fixed fractional condenser motor
• Mounts in any position
• Dynamic self-aligning bearing with reversible direction

Product Highlights

The TRADEPRO condenser fan motor is suitable for various applications. It features a 48Y frame, 5" keyed shaft, and a 5MF 370 or 440V capacitor.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-C25-1SP2-8
• Country of Origin: MEX

Technical Specifications

• Amps: 2
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Brand: TRADEPRO
• Capacitor MFD F: 5
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Full Load Amps: 2
• Insulation Class: B
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor HP: 1/4
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 1
• Phase: Single
• Poles: 8
• Prop 65: No
• Protection: Yes
• Rotation: Counter Clockwise (CCW)
• RPM: 825
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• UPC: 816075029668
• Voltage: 208-230 VAC
• Weight: 9.6
• Item Thickness: 1/2 in
• Power Source: Corded Electric
• Item Diameter: 1/2"
• Model: TradePro TP-C25-1SP2
