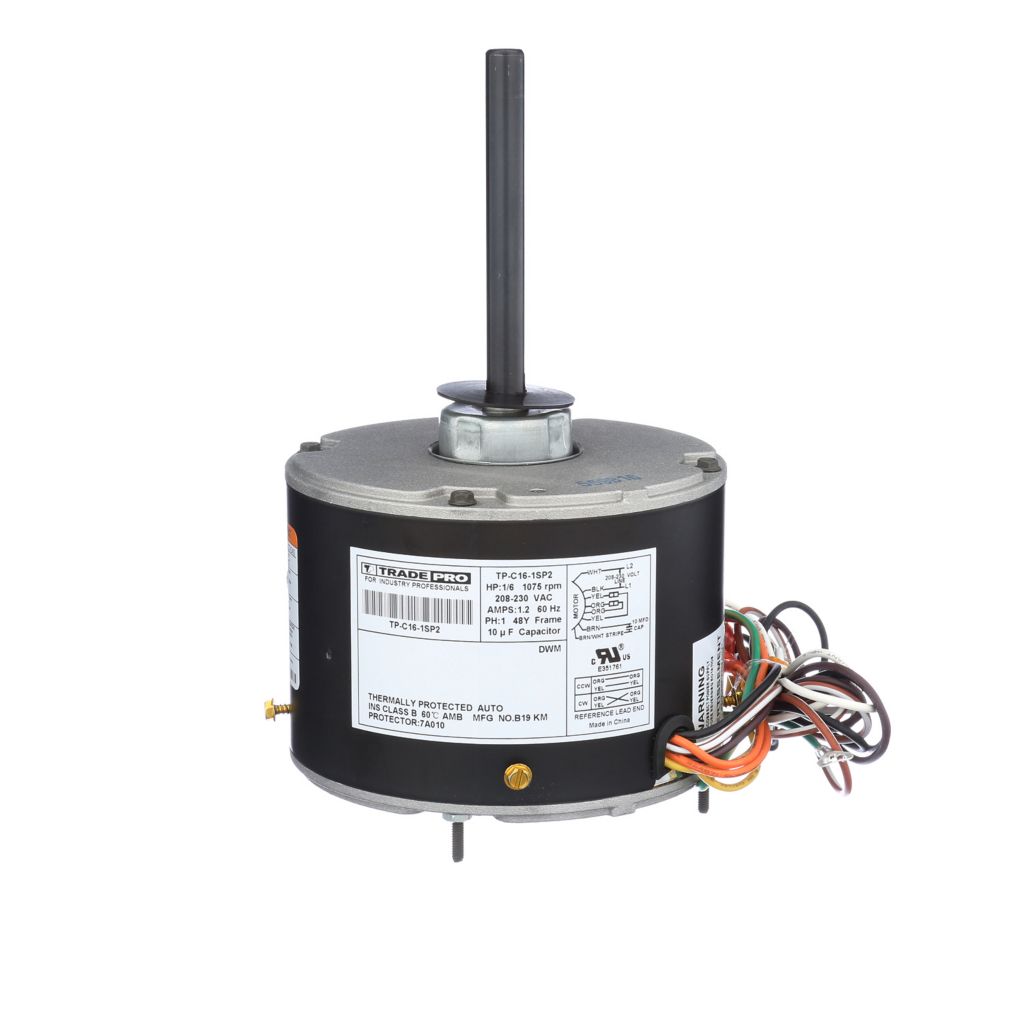

Tradepro TP-C16-1SP2 Condenser Motor 1/6 hp 1075 RPM

Product Description

The TRADEPRO TP-C16-1SP2 is a universal fixed fractional condenser motor designed for durability. Operating at 208-230V single phase with a 1.2 amp draw, it features a 48Y frame and a 5" keyed shaft. The motor includes a dynamic self-aligning bearing and reversible direction, and it mounts in any position.

• Universal condenser motor design
• Dynamic self-aligning bearing with reversible direction
• Pre-drilled side shell to accept Rheem mounting plate

Product Highlights

The TRADEPRO TP-C16-1SP2 condenser motor is ideal for replacement of condenser fan motors. It is durably constructed and suitable for various mounting positions.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-C16-1SP2
• Country of Origin: MEX

Technical Specifications

• Model Name: CONDENSER MOTOR
• Speed: 1075 RPM
• Voltage: 208-230 VAC
• Material: Copper
• SKU: TP-C16-1SP2
• Amps: 1.2
• Basis Of Rotation View: Lead End
• Bearing Type: Self Aligning (SAB)
• Capacitor MFD F: 10
• Cycle/Hertz: 60 Hz
• Duty: (S1) Continuous Running Duty
• Full Load Amps: 1.2
• Insulation Class: B
• Motor Enclosure: Totally Enclosed Air Over (TEAO)
• Motor HP: 1/6
• Motor Type: PSC (Permanent Split Capacitor)
• NEMA Frame: 48Y
• Number of Speeds: 1
• Phase: Single
• Poles: 6
• Protection: Yes
• Rotation: Reversible
• Service Factor: 1
• Shaft Diameter: 0.5" (1/2")
• Shaft Length: 5"
• Substantial Commodity: Steel; Copper
• Type: Condenser Fan
• Power Source: Corded Electric
