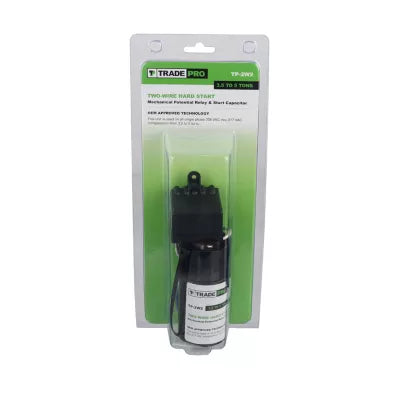

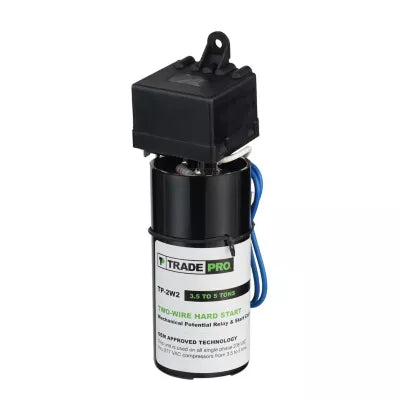

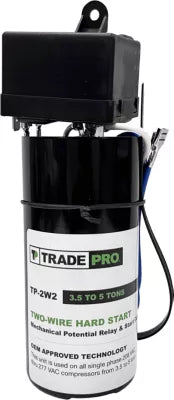

Tradepro tp-2w2 Hard Start Kit Mpr 270-324 Mfd 3.5 to 5 Hp

Product Description

The TRADEPRO tp-2w2 is a hard start kit combining a Mechanical Potential Relay (MPR) and a start capacitor into a single assembly for single-phase compressor applications. Rated at 270-324 microfarads (MFD), it delivers the added starting torque needed to get compressors turning under high-load or low-voltage conditions. This kit is designed for units in the 3.5 to 5 horsepower range and is installed by licensed HVAC technicians during compressor service, equipment commissioning, or as a retrofit to address hard-start or failed-start conditions in the field.

This hard start kit is suited for residential and light commercial air conditioning and heat pump systems in the 3.5 to 5 HP compressor range. It is compatible with PSC (Permanent Split Capacitor) and CSIR (Capacitor Start Induction Run) type compressors. The 2-wire installation design simplifies retrofit work, allowing technicians to add hard-start capability to existing systems without extensive rewiring. It is appropriate for split systems, package units, and other single-phase compressor-driven equipment where starting reliability is a service concern.

Key Features

• 270-324 MFD start capacitor range provides high starting torque for 3.5 to 5 HP compressors
• Compatible with PSC and CSIR type compressors for broad application coverage
• 2-wire installation simplifies retrofit and reduces labor time
• Mechanical Potential Relay design provides voltage-sensing for reliable start and instant re-start capability
• UL Recognized component meeting recognized safety standards
• NATE Recognized (Course 1867-0002) and built on OEM-approved technology

Compatibility

Designed for use on single-phase PSC and CSIR type compressors rated 3.5 to 5 HP. Suitable as an OEM-approved hard start retrofit for compatible residential and light commercial HVAC compressor applications.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before beginning any wiring work. The 2-wire connection attaches to the compressor start terminal and the run capacitor; verify terminal identification before connecting. Capacitors store electrical charge and must be safely discharged before handling any existing capacitor components.

Technical Specifications

• Capacitance Range: 270-324 MFD
• Horsepower Range: 3.5 to 5 HP
• Relay Type: Mechanical Potential Relay (MPR)
• Compatible Compressor Types: PSC, CSIR
• Wiring Configuration: 2-wire installation
• Certifications: UL Recognized, NATE Recognized (Course 1867-0002)
• Unit of Measure: Each

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: tp-2w2
