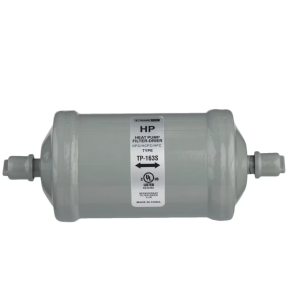

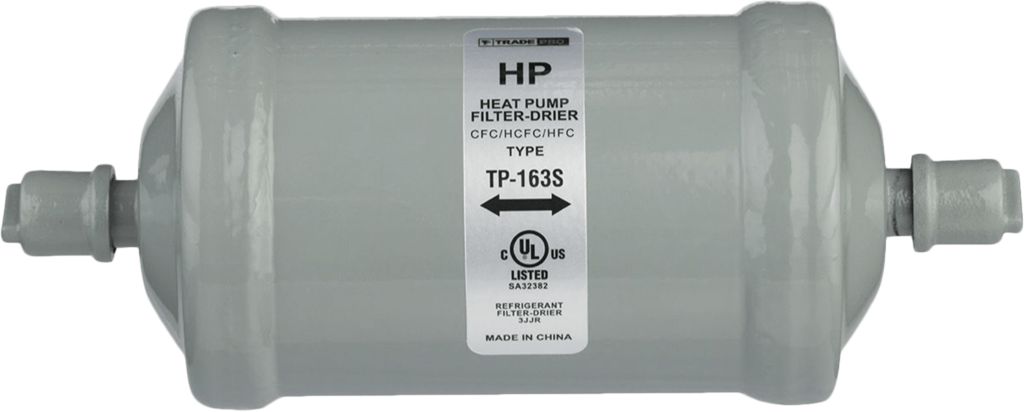

Tradepro TP-163S Bi-Directional Heat Pump Drier, 16 Cubic Inches, 3/8 inches ODF Connection

Product Description

The TRADEPRO TP-163S is a bi-directional liquid line filter drier for heat pump applications using CFC, HCFC and HFC refrigerants. It features internal check valves that allow flow and filtration in either direction. Compatible with all refrigerants, including R290, and Copeland approved for POE oils.

• 16 cubic inch drier in a 2 1/2" diameter shell
• Compatible with all refrigerants (including R290)
• Copeland approved for POE oils

Product Highlights

The TP-163S offers high moisture and acid removal with a corrosion resistant epoxy powder paint finish.

Product Information

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: TP-163S
• Country of Origin: CHN

Technical Specifications

• SKU: TP-163S
• Brand: TRADEPRO
• Composition: Steel
• Connection Type: C x C
• Country of Origin: CHN
• Diameter: 2.5"
• Inlet Connection Size: 3/8"
• Line Drier Cubic Inch Size: 16
• Line Drier Type: Liquid Line Bi-Flo
• Outlet Connection Size: 3/8"
• Prop 65: No
• Refrigerant: CFC; HCFC; HFC
