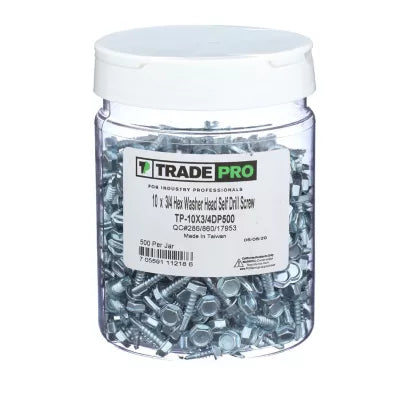

Tradepro tp-10x3/4dp500 Self Drill Screw 500 Pack

Product Description

The TRADEPRO tp-10x3/4dp500 is a hex washer head self-drilling screw sold in a 500-count pack. It drills a hole and taps threads in a single operation, eliminating the need for a separate pilot hole. The screw measures 10 diameter by 0.75 inches in length. Type 2 point geometry handles metal up to 0.100 inches thick. Type 3 point geometry extends capacity to metal up to 0.175 inches thick. These fasteners are suited for HVAC sheet metal fabrication, ductwork assembly, and light structural metal connections common in mechanical and building trades.

This self-drilling screw is designed for use in heavier gauge metal applications. It is commonly used by HVAC technicians assembling duct sections, sheet metal workers fabricating panels, and commercial construction crews attaching metal framing components. The hex washer head provides positive driver engagement and a built-in bearing surface that distributes load across the fastened material. The 500-pack format suits production workflows and service vehicles stocking fasteners for repeat tasks.

Key Features

• Drills and taps threads in a single operation — no pilot hole required
• Type 2 point rated for metal up to 0.100 inches thick
• Type 3 point rated for metal up to 0.175 inches thick
• Hex washer head provides positive drive engagement and load distribution
• 500-count pack suits high-volume field and shop use
• 10 diameter by 0.75 inch length for heavier gauge sheet metal work

Compatibility

Designed for use in heavier gauge metal fastening applications typical of HVAC ductwork fabrication, sheet metal assembly, and light commercial metal framing.

Installation Notes

Installation is performed with a hex-head driver or nut driver at appropriate speed to avoid stripping threads or overdriving the washer head. Power down any electrical components in the work area before fastening near live panels or conduit. Follow applicable mechanical and building codes when fastening structural metal assemblies. Do not substitute screw diameter or point type for applications outside the specified metal thickness range.

Technical Specifications

• Screw Diameter: 10
• Length: 0.75 inches
• Head Style: Hex Washer Head
• Drive Type: Hex
• Point Type: Type 2 and Type 3
• Type 2 Point Metal Capacity: Up to 0.100 inches
• Type 3 Point Metal Capacity: Up to 0.175 inches
• Pack Quantity: 500

Standard Information

• Brand: TRADEPRO
• Manufacturer Part Number: tp-10x3/4dp500
