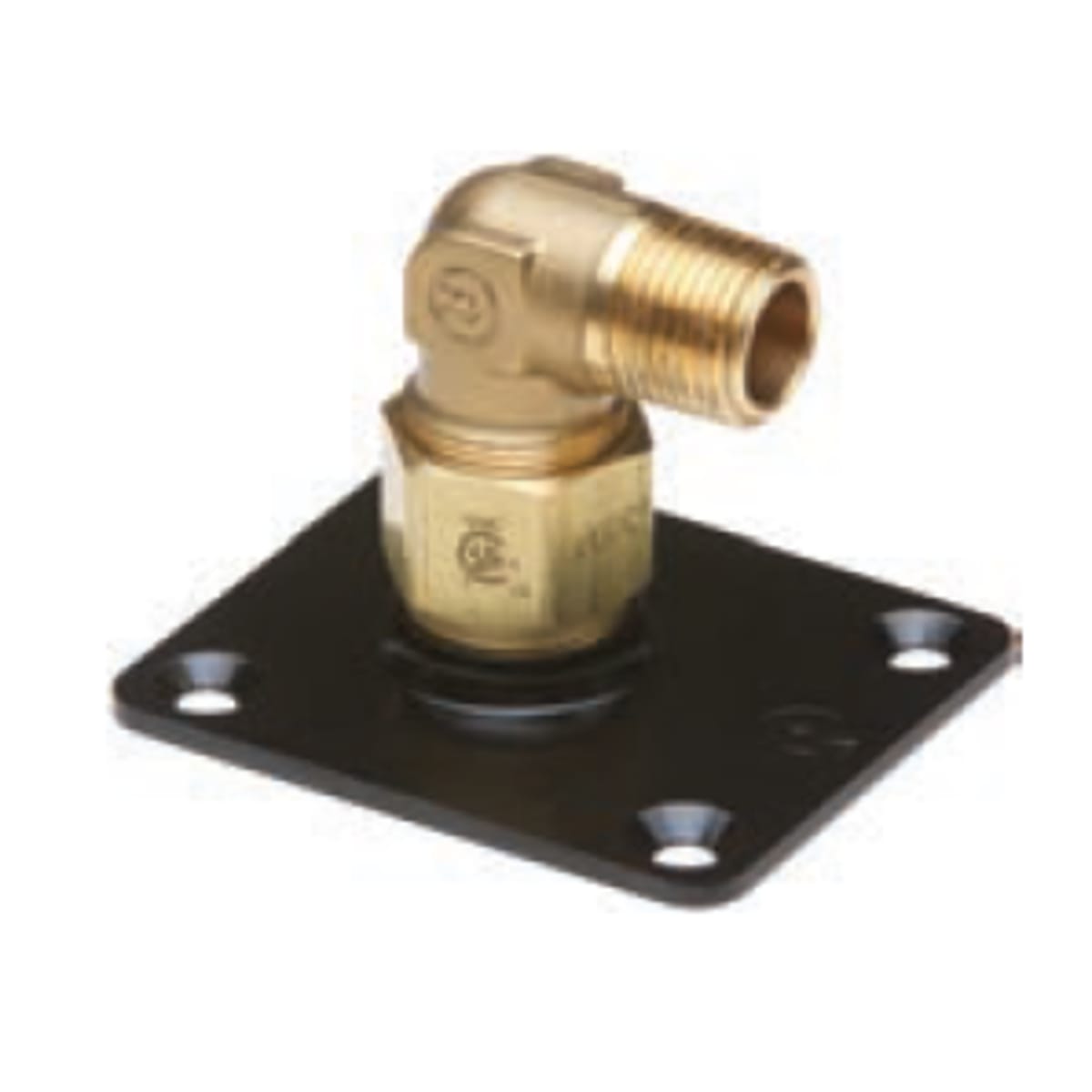

Tracpipe FGP-RFG-500 1/2 inches Tracpipe Flange Adapter

Product Description

The TRACPIPE FGP-RFG-500 is a 1/2" TracPipe Flange Adapter. This self-piloting fitting attaches TracPipe CounterStrike to traditional gas fittings and appliances, and requires no special tools or additional parts. It is suitable for use with flexible gas piping systems.

• Termination fitting between TracPipe or CounterStrike tubing and NPT thread
• AutoFlare is the self-piloting fitting that attaches TracPipeCounterStrike to traditional gas fittings and appliances.
• No special tools or additional parts required.

Product Highlights

The TRACPIPE FGP-RFG-500 flange fitting is made of steel and has a 1/2 inch nominal size. It is designed for use in indoor, outdoor, and concealed locations.

Product Information

Standard Information

• Brand: TRACPIPE
• Manufacturer Part Number: FGP-RFG-500

Technical Specifications

• Material: Steel
• Size: 1/2 in
• Suitable For Use With: Flexible Gas Piping System
• Item Name: Flange Fitting
• Sub Brand: TracPipe AutoFlare
• Type: Self-Piloting
• Nominal Size: 1/2 inch
• Connection Type: MNPT
• Length: 2.75 inch
• Pressure Rating: 25 psig
• Temperature Rating: -20 to 200 deg F
• Diameter: 1.125 inch OD
• Applications: Indoor, Outdoor and Concealed Location Applications
• Standards/Approvals: ANSI LC1/CSA 6.26, ANSI Z223.1, ICC Certified, NFPA 54, UPC Certified
• Brand: TracPipe Counterstrike
• Manufacturer Name: Omega Flex
