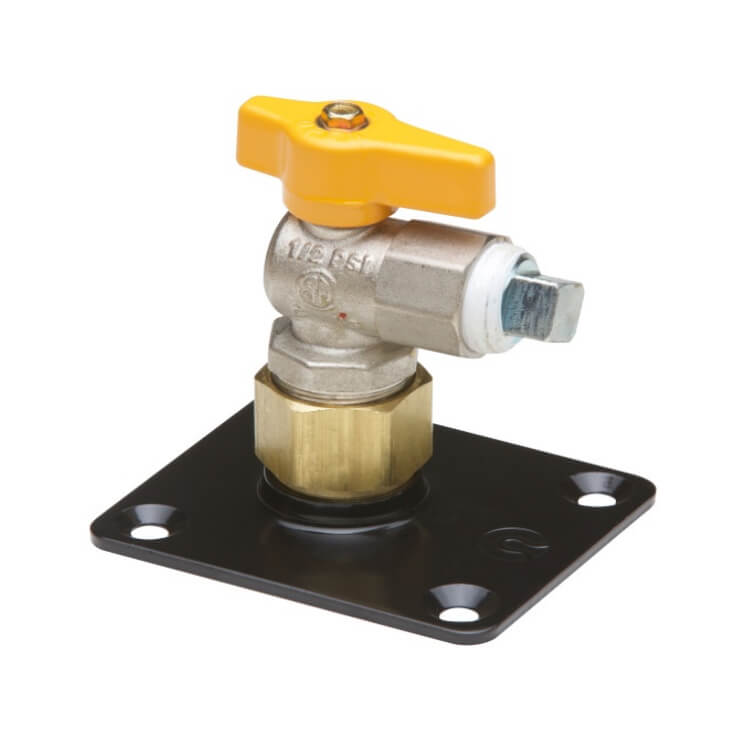

TracPipe FGP-RF90V-500 1/2 90-Degree AutoFlare Flange Valve

Product Description

The TracPipe FGP-RF90V-500 is a 1/2 inch 90-degree AutoFlare flange valve designed for connecting TracPipe or CounterStrike tubing. This fitting includes an appliance shutoff valve with a Female NPT thread. It is suitable for indoor, outdoor, and concealed applications.

• Made from yellow brass and stainless steel components
• Features a black E-coated steel mounting flange
• Operates safely under a maximum test pressure of sixty PSIG

Product Highlights

This valve reliably connects gas supply lines efficiently and securely, ensuring safe operation in various environments.

Product Information

Standard Information

• Brand: TracPipe
• MPN: FGP-RF90V-500

Technical Specifications

• Size: 1/2 inch
• Material: Brass
• Operating Pressure: 1/2 PSIG
• Max Test Pressure: 60 PSIG
• Operating Temperature Range: 32 to 125 Deg F
• Shipping Dimensions: 4 inches (depth) x 3.5 inches (width) x 3.5 inches (height)
• Weight: 0.9 lbs
• Product Type: Flange, Valve
