Tracpipe FGP-FST-375 Straight Brass Adapter 3/8 in Mpt X Fpt

Product Description

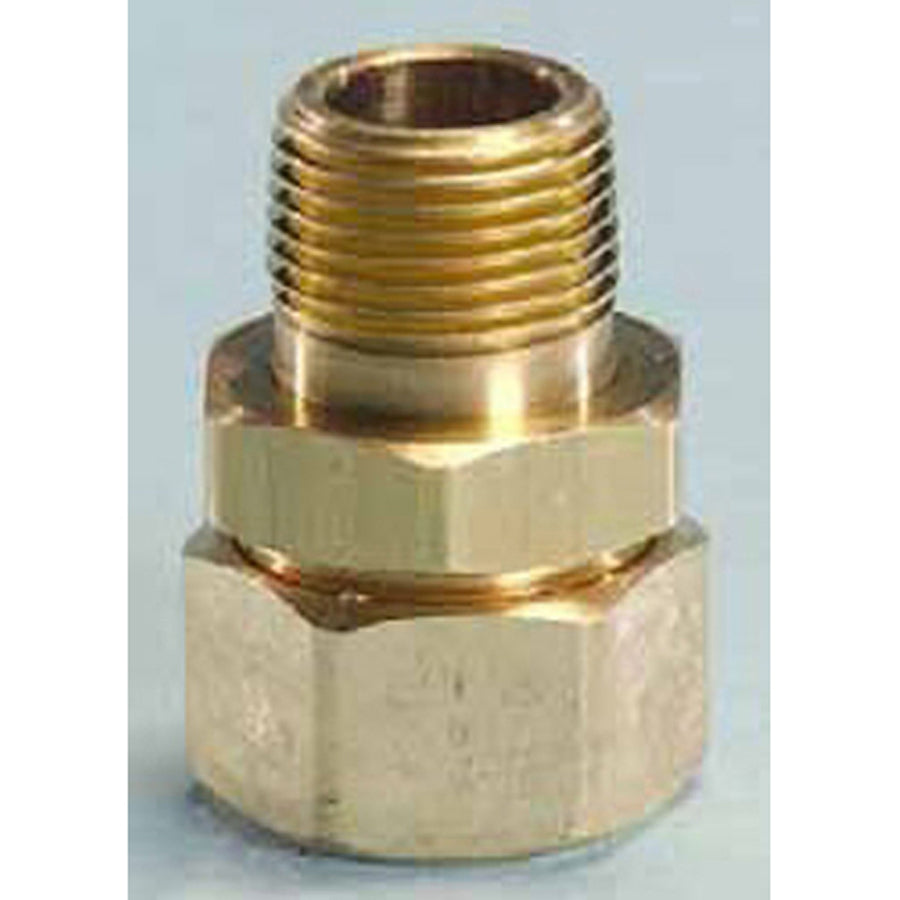

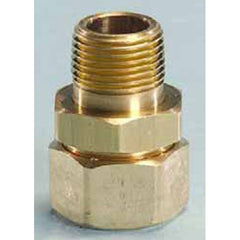

The TRACPIPE FGP-FST-375 is a straight brass adapter fitting designed to connect TracPipe CounterStrike flexible gas piping to standard threaded gas fittings and appliances. The AutoFlare design is self-piloting, meaning it seats and seals without special tools or additional parts. The fitting measures 3/8 inches on both ends, with a male NPT thread on one side and a female NPT thread on the other. It is rated for pressures from 25 to 125 PSIG and temperatures from -20 to 200 degrees F, making it suitable for the full range of residential, commercial, and industrial flexible gas piping installations.

This fitting is used wherever TracPipe CounterStrike corrugated stainless steel tubing must transition to a conventional threaded gas connection, such as at appliance stub-outs, manifolds, meter sets, or equipment connections. Its straight configuration fits in-line runs where no directional change is needed. The 3/8-inch size is common in residential gas branch lines serving ranges, dryers, fireplaces, and similar appliances. It is appropriate for both new construction and retrofit applications across residential, commercial, and industrial gas piping systems.

Key Features

• AutoFlare self-piloting design attaches to traditional gas fittings without special tools or extra parts
• Straight configuration with 3/8 inches MPT on one end and 3/8 inches FPT on the other
• Pressure rated for 25 to 125 PSIG for reliable performance in gas distribution systems
• Temperature rated from -20 to 200 degrees F for broad installation compatibility
• Brass construction for corrosion resistance and long service life in gas piping applications
• Meets ANSI Z223.1, NFPA 54/58, CSA, IAPMO, UPC, and additional applicable standards

Compatibility

Designed for use with TracPipe CounterStrike flexible gas piping systems. Suitable for residential, commercial, and industrial flexible gas piping applications per ANSI LC1/CSA 6.26, ICC PMG 1046/1058, IAPMO, CSA, NFPA 54/58, UPC, and CAN/CSA B149.1.

Installation Notes

Installation should be performed by a licensed plumber or gas fitter in accordance with local codes, NFPA 54, and IFGC requirements. Shut off the gas supply and verify zero pressure at the work point before making or breaking any connections. Apply thread sealant rated for gas service to all male threads before assembly. Do not overtighten brass fittings, as excess torque can damage threads or the fitting body.

Technical Specifications

• Material: Brass
• Type: Straight
• End Connection: Male Threaded x Female Threaded
• Size A: 3/8 inches
• Size B: 3/8 inches
• Pressure Rating: 25 to 125 PSIG
• Temperature Rating: -20 to 200 degrees F
• Application: Residential, Commercial, Industrial
• Applicable Standards: ANSI Z223.1, ANSI LC1/CSA 6.26, ICC PMG 1046/1058, IAPMO, CSA, NFPA 54/58, UPC, CAN/CSA B149.1

Standard Information

• Brand: TRACPIPE
• Manufacturer Part Number: FGP-FST-375
