Product Description

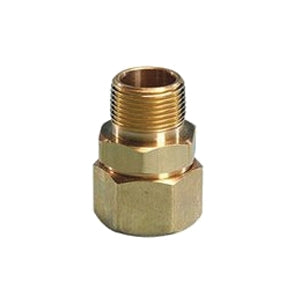

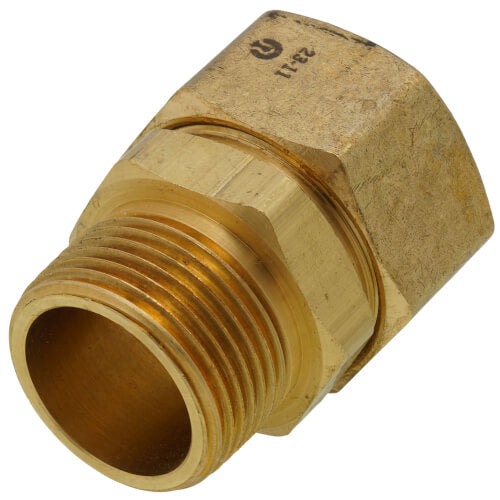

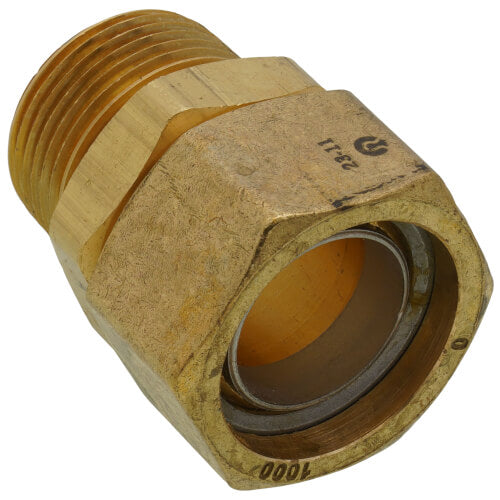

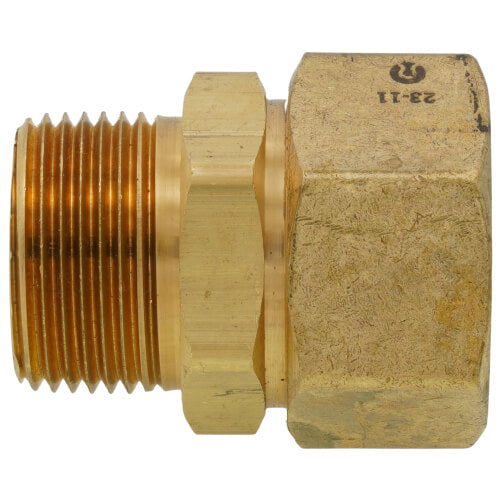

The TracPipe FGP-FST-1000 is a straight gas fitting designed for easy connection to gas pipelines. Produced by TracPipe, this fitting features a one-inch size with Male NPT connections. It enables seamless attachment of TracPipe or CounterStrike tubing to traditional gas appliances.
- No special tools needed for installation.
- Self-piloting Autoflare design simplifies setup.
- Applicable for indoor, outdoor, and concealed location installations.
Product Highlights
This gas fitting meets industry standards and is suitable for a variety of applications.
Product Information
Standard Information
-
Brand: TracPipe
-
Manufacturer: Omegaflex
Technical Specifications
-
Connection Size: 1 in
-
Connection Type: MNPT
-
Material: Yellow Brass
-
Length: 2-3/8 in
-
Pressure Rating: 125 psig
-
Temperature Rating: -20 to 200 deg F
-
Sub Brand: AutoFlare, CounterStrike
-
Type: Self-Piloting
-
Standards/Certifications: ANSI LC1/CSA 6.26, ANSI Z223.1, ICC PMG 1046/1058, IAPMO (UPC) file number 3682/ES ER-0227
-
Applications: Indoor, outdoor, concealed location application
