TracPipe FGP-BFF-500 Flange Fitting 1/2 in MNPT Replacement MPN

Product Description

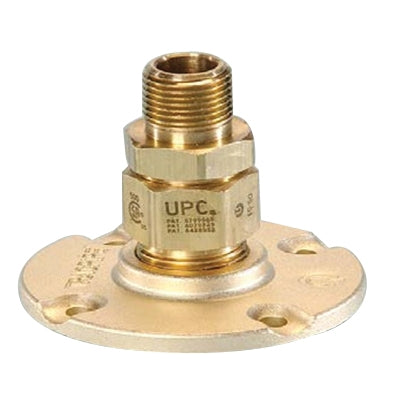

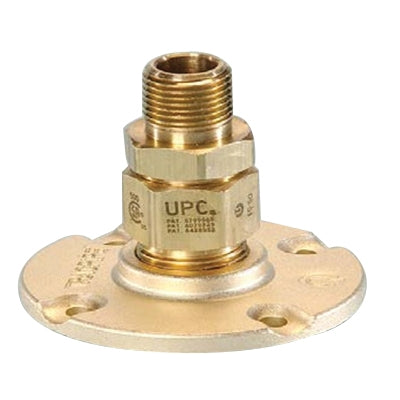

The TracPipe FGP-BFF-500 is a flange fitting designed for gas piping systems. This product features a half-inch MNPT connection, making it suitable for various applications. It is made from yellow brass, offering reliability and durability.

• Standards certified by ANSI LC1/CSA 6.26
• Designed for indoor, outdoor, and concealed applications
• Pressure rating of 125 psig

Product Highlights

The TracPipe FGP-BFF-500 flange fitting is engineered for reliable performance in high-pressure gas lines. Its certifications ensure compliance with industry standards.

Product Information

Standard Information

• Brand: TracPipe
• Manufacturer: Omegaflex

Technical Specifications

• Connection Size: 1/2 in
• Connection Type: MNPT
• Item Name: Flange Fitting
• Length: 2-5/8 in
• Material: Yellow Brass
• Outside Diameter: 3-1/4 in
• Pressure Rating: 125 psig
• Temperature Rating: -20 to 200 deg F
• Bolt Circle Diameter: 1-1/8 in
• Applications: For indoor, outdoor, concealed location application
• Standards/Certifications: ANSI LC1/CSA 6.26, ANSI 223.1, ICC PMG 1046/1058, IAPMO (UPC) file number 3682/ES ER-0227
