Tracpipe FGP-BFF-375 Autoflare Blind Flange Fitting

Product Description

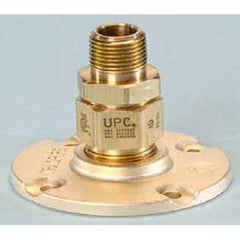

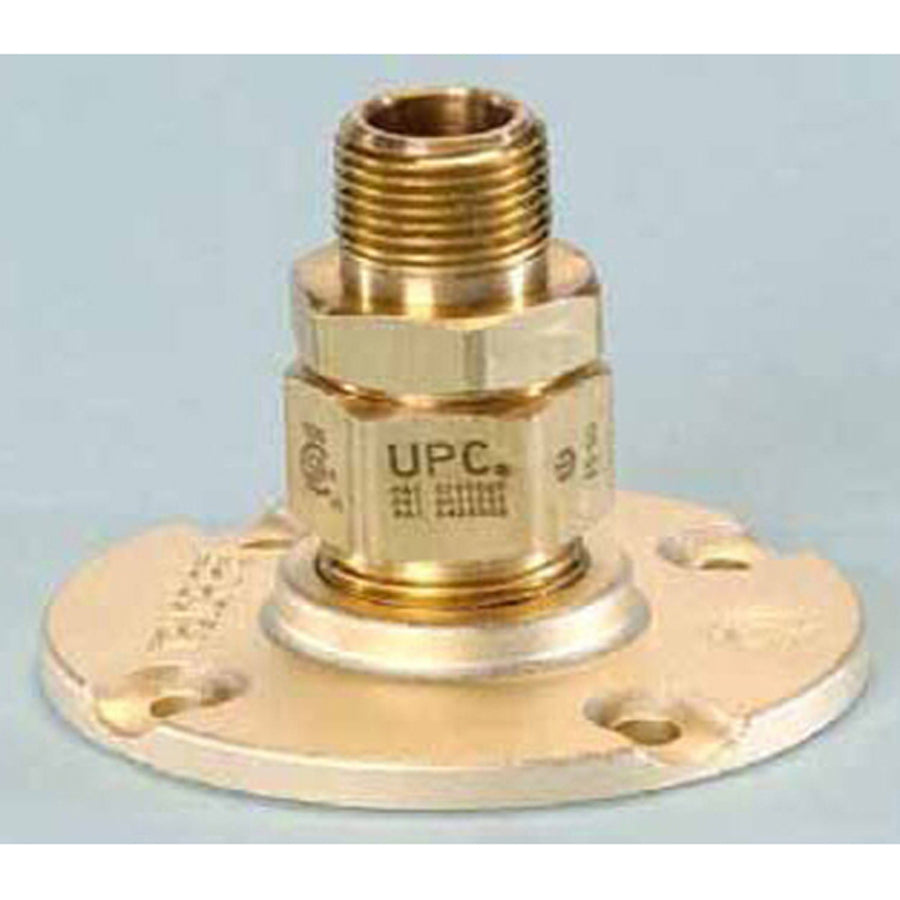

The TRACPIPE FGP-BFF-375 is a 4-piece blind flange fitting designed to connect TracPipe CounterStrike corrugated stainless steel tubing (CSST) to standard gas fittings, appliances, and equipment using a 3/8 inch male pipe thread (MPT) end connection. Built from brass and rated for 25 to 125 PSIG, this fitting features the AutoFlare self-piloting design, which seats and seals without special tools or additional parts. Licensed plumbers and gas fitters install this fitting as part of flexible gas piping system terminations in residential, commercial, and industrial applications.

The FGP-BFF-375 is suited for flexible gas piping installations where a blind flange termination at a wall, floor, or equipment panel is required. Its 3/8 inch MPT connection interfaces directly with standard threaded gas outlets and appliance inlets. The fitting is rated for temperatures from -20 to 200 degrees F, making it appropriate for both indoor and outdoor gas distribution work across a wide range of climate conditions.

Key Features

• AutoFlare self-piloting design seats without special tools or additional parts
• Brass construction for durability in gas piping service
• Rated 25 to 125 PSIG for residential and commercial gas pressure ranges
• Temperature rated from -20 to 200 degrees F
• 3/8 inch MPT end connection for standard threaded gas fittings and appliances
• Meets ANSI LC1/CSA 6.26, NFPA 54/58, IAPMO, UPC, and CAN/CSA B149.1 standards

Compatibility

Designed for use with TracPipe CounterStrike flexible gas piping systems. Suitable for residential, commercial, and industrial flexible gas piping installations with 3/8 inch MPT threaded connections.

Installation Notes

Installation must be performed by a licensed plumber or gas fitter in accordance with NFPA 54, NFPA 58, and applicable local codes. Shut off the gas supply and verify zero pressure at the line before beginning work. Apply thread sealant rated for gas service to all male threads per local code requirements. Do not over-tighten brass fittings; follow the fitting manufacturer torque guidance and local code provisions.

Technical Specifications

• Nominal Pipe Size: 3/8 inch
• End Connection: Male Threaded (MPT)
• Pressure Rating: 25 to 125 psi
• Temperature Rating: -20 to 200 degrees F
• Material: Brass
• Type: 4-Piece Blind Flange
• Flange Outside Diameter: 3.25 inches
• Application: Residential, Commercial, Industrial
• Applicable Standards: ANSI LC1/CSA 6.26, ANSI 223.1, CSA, ICC PMG 1046/1058, IAPMO, NFPA 54/58, UPC, CAN/CSA B149.1

Standard Information

• Brand: TRACPIPE
• Manufacturer Part Number: FGP-BFF-375
