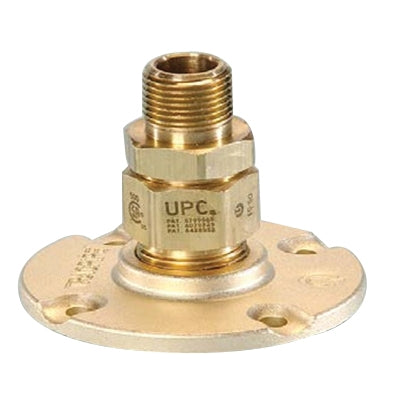

Tracpipe FGP-BFF-1250 Flange Fitting 1-1/4 in MNPT

Product Description

The TRACPIPE FGP-BFF-1250 is an AutoFlare CounterStrike yellow brass flange fitting with a 1-1/4 in MNPT connection. Suitable for indoor, outdoor, and concealed location applications. It has a pressure rating of 125 psig and a temperature rating of -20 to 200 deg F. This flange fitting is designed for use with TracPipe systems.

• Standards/Certifications: ANSI LC1/CSA 6.26, ANSI 223.1, ICC PMG 1046/1058, IAPMO (UPC) file number 3682/ES ER-0227
• Connection Size: 1-1/4 in
• Material: Yellow Brass

Product Highlights

The TRACPIPE FGP-BFF-1250 flange fitting ensures secure and reliable connections in various applications.

Product Information

Standard Information

• Brand: TRACPIPE
• Manufacturer Part Number: FGP-BFF-1250

Technical Specifications

• Bolt Circle Diameter: 2-1/8 in
• Connection Size: 1-1/4 in
• Connection Type: MNPT
• Item Name: Flange Fitting
• Length: 3-1/2 in
• Material: Yellow Brass
• Outside Diameter: 4 in
• Pressure Rating: 125 psig
• Sub Brand: AutoFlare, CounterStrike
• Temperature Rating: -20 to 200 deg F
