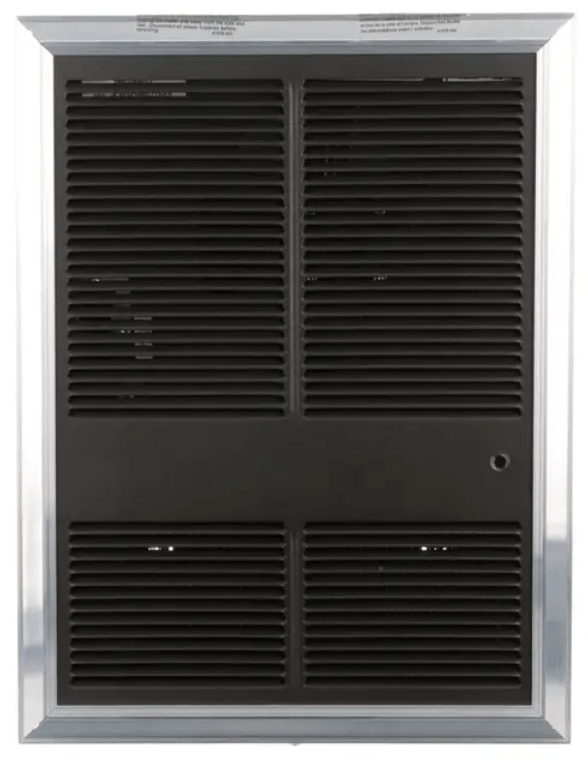

Tpi Tpi-03808802 commercial fan forced wall heater 1500w 120v E3323TDRP

Product Description

The TPI TPI-03808802 is a commercial fan-forced wall heater, also known as E3323TDRP, designed for efficient heating. Operating at 120V and delivering 1500W (5,120 BTUs), it features a built-in single pole thermostat and a disconnect switch for safety. The unit includes an automatic fan delay circuit and an automatic reset thermal limit, ensuring reliable performance. Its vane axial fan blade, driven by a 600 RPM motor, provides 175 CFM airflow.

• Disconnect switch for enhanced safety
• Automatic fan delay circuit for optimized operation
• Automatic reset thermal limit for protection

Product Highlights

Heavy-duty commercial-grade fan-forced electric wall heater with tamper-proof thermostat and 175 CFM airflow.

Product Information

Standard Information

• Brand: TPI
• Manufacturer Part Number: TPI-03808802
• Country of Origin: USA

Technical Specifications

• Brand: TPI
• Part Number: E3323TDRP
• Voltage: 120V
• Amperage: 12.5 A
• Wattage: 1500W
• BTUs: 5120
• Built-In Thermostat: Single Pole
• Fan Motor Speed: 600 RPM
• Air Flow: 175 CFM
• UPC: 686334380881
• Manufacturer: TPI
• Phase: 1 Phase
• Plug Type: Hardwired
• Finish: Powder Coat
• Certifications: ETL
• Heater Type: Commercial Wall Heater
