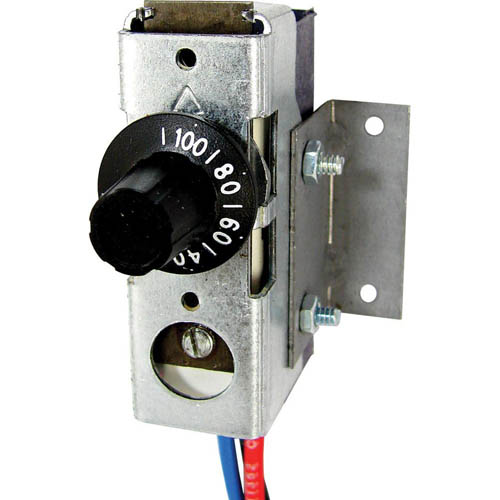

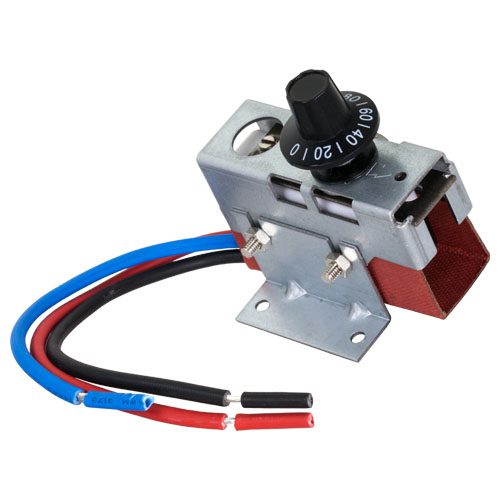

Tpi LRD100A Spdt Heat/Cool Outdoor Bi Metal Thermostat

Product Description

The TPI LRD100A is a Spdt Heat/Cool Outdoor Bi Metal Thermostat. It features a bi-metal sensor and a setpoint range of 0-110° F. The thermostat operates on 120-277VAC and has an amp rating of 22 Amps, Resistive Max. Ideal for outdoor use in HVAC systems, it ensures efficient temperature control.

• Bi-Metal sensor for accurate temperature sensing
• Setpoint range of 0-110° F
• Rated for 22 Amps, Resistive Max

Product Highlights

Outdoor thermostat with bi-metal sensor, wide setpoint range, and robust amp rating.

Product Information

Standard Information

• Brand: TPI
• Manufacturer Part Number: LRD100A

Technical Specifications

• Sensor: Bi-Metal
• Setpoint Range: 0-110° F
• Rated Differential: 4-6° F
• Voltage: 120-277VAC
• Amp Rating: 22 Amps, Resistive Max.
• HP Ratings: 3/4 HP @ 125 VAC 1.5 HP @ 250-277 VAC
• Connections: 6” Wire Leads
• Size: 2.63” H x 1.5” W x 2.5” D
• Power Type: Hardwired
• Brand: TPI
• Item Type: Line Volt
• Also Known As: 5363002
• Model: TPI LRD100A
• MPN: LRD100A
• UPC: Does not apply
