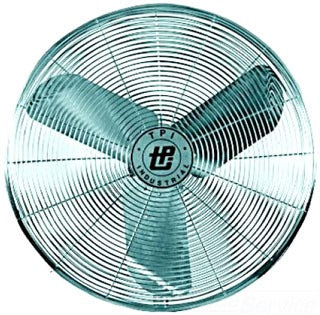

TPI IHP24H 24 Assembled Ind. High Performance Head 1/3 HP

Product Description

The TPI Corporation IHP24H is a 24 inch assembled industrial high performance circulator head rated at one third horsepower. This unit delivers a strong airflow of up to seven thousand cubic feet per minute at high speed and five thousand two hundred cubic feet per minute at low speed. It operates on 120 volts AC and draws 2.8 amperes. The TPI IHP24H features two-speed operation controlled by a pull chain, making it user-friendly.

• Durable aluminum paddle blades for effective air movement
• Steel housing for long-lasting use
• Multi-mounting options including ceiling, I-beam, and pole

Product Highlights

Designed for industrial applications, this circulator head provides efficient airflow control and robust performance.

Product Information

Standard Information

• Manufacturer: TPI Corporation
• Model Number: IHP24H

Technical Specifications

• Amperage Rating: 2.8 A
• Blade Material: Aluminum
• Blade Size: 24 inches
• Control Type: Pull Chain
• Power Rating: 1/3 hp
• Speed: 1100 rpm high, 800 rpm low
• Dimensions: 27 inches diameter x 14.5 inches depth
• Flow Rate: 7000 cfm high, 5200 cfm low
• Housing Material: Steel
• Mounting Type: Ceiling/I-Beam/Pole/Surface/Suspension
• Voltage Rating: 120 VAC
• Domestic/Import: Domestic
• Warranty: 3 Years
