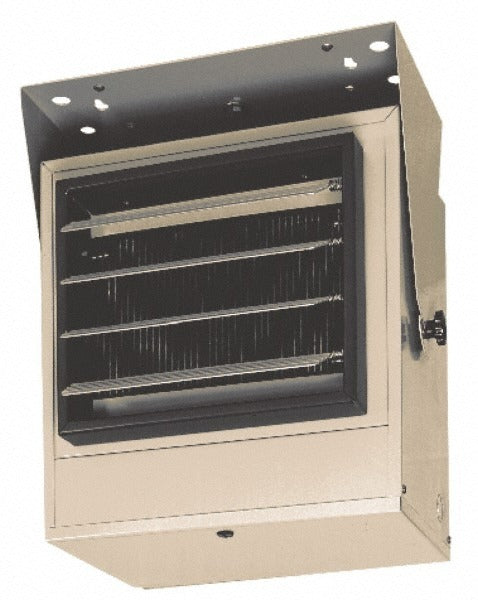

Tpi HF5605T Fan Forced Unit Heater 17065 Btu/h

Product Description

The TPI HF5605T is a fan forced unit heater rated at 17,065 BTU/h (1,874 watts) for single-phase, 208/240-volt applications. It delivers forced convective heat through a 275 CFM airflow, making it effective for rapid space heating in areas where radiant or baseboard heat is impractical. The unit supports multi-watt operation, allowing it to be installed on either 208-volt or 240-volt circuits without separate models. Licensed electricians and HVAC technicians install this type of equipment in commercial and light industrial spaces where ceiling or wall mounting keeps the floor clear and directs heat efficiently across the occupied zone.

The HF5605T is suited for garages, warehouses, workshops, utility rooms, and similar unfinished or semi-conditioned spaces that require dependable spot heating. Its horizontal air throw of 16 feet allows placement away from the work area while still delivering heat effectively across the space. The unit mounts to the ceiling or wall, offering installation flexibility when structural or layout constraints limit placement options. It is a direct-install solution for contractors outfitting new construction or retrofitting existing spaces that lack central heating infrastructure.

Key Features

• 17,065 BTU/h maximum heating capacity with a minimum rating of 6,396 BTU/h for multi-watt flexibility
• 275 CFM airflow rating for effective forced convection across the heated space
• Single-phase 208/240V multi-watt design eliminates the need for voltage-specific models
• 16-foot horizontal air throw extends heat coverage from a ceiling or wall-mounted position
• Ceiling and wall mount compatible for flexible installation based on space constraints
• cULus Listed for compliance with U.S. and Canadian safety standards

Compatibility

Designed as an OEM-style fan forced unit heater for single-phase 208/240V electrical systems in residential garages, light commercial spaces, and industrial utility areas requiring ceiling or wall-mounted forced-air heat.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out power at the panel before wiring or servicing the unit. Ensure the mounting surface and fasteners are rated to support the weight of the heater. Maintain manufacturer-specified clearances from combustible materials as indicated on the unit label and installation documentation.
