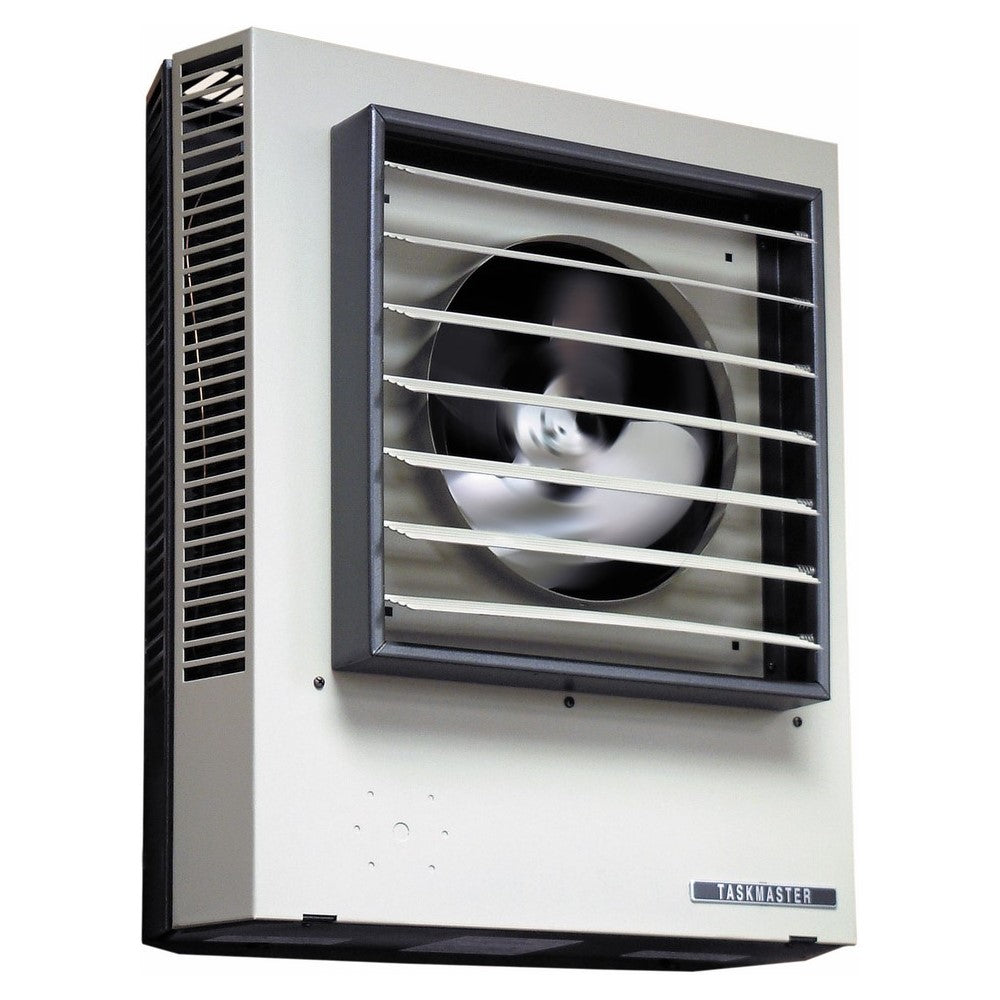

TPI HF1B5105N Fan Forced Unit Heater 5/3.7KW 240/208V 1 P

Product Description

The TPI HF1B5105N is a fan forced unit heater designed for indoor use in commercial and industrial settings. This standard unit heater operates on 208/240 volts and provides a power output of five kilowatts, with a lower setting of three point seven kilowatts. The heater's dimensions are fourteen and fifteen thirty-seconds inches in width, seventeen and three-fourths inches in height, and six and one-half inches in depth. Its BTU rating is seventeen point one at high and twelve point eight at low, with an air flow rate of four hundred cubic feet per minute.

• Power: 5/3.7 kW
• Voltage: 240/208 VAC
• BTU Rating: 17.1/12.8 per hour

Product Highlights

This heater features a heavy steel cabinet with a powder-coated finish and a control compartment for easy access. It includes a copper clad steel sheath element and a built-in limit control for safety.

Product Information

Standard Information

• Brand: TPI
• Manufacturer Part Number: HF1B5105N

Technical Specifications

• Amperage Rating: 20.9/18.1 A
• Material: Steel
• Mounting Type: Wall
• Power Rating: 5/3.7 kW
• Flow Rate: 400 CFM
• Dimensions: 14-15/32 in W x 6-1/2 in D x 17-3/4 in H
• Temperature Rating: 40 deg F
• Series: 5100
