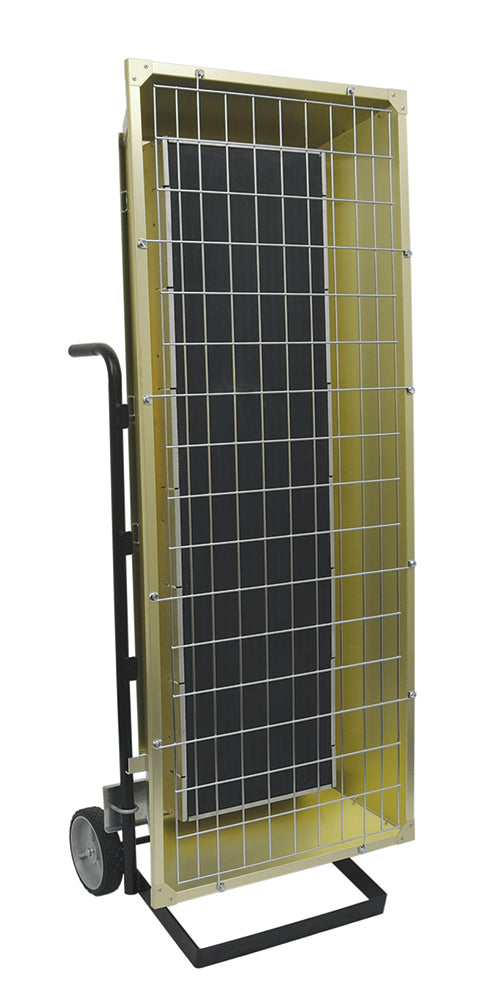

TPI FSP95483 9.50 KW 480V Portable Infrared Flat Panel Emitter 04885102

Product Description

The TPI Corporation FSP95483 is a portable infrared flat panel emitter with a power rating of 9.5 kW, designed for high efficiency in heating applications. Operating at 480 VAC, it delivers 32414 Btu/hr of heating capacity. This emitter features a 60-degree symmetrical heat pattern and is built for durability in demanding environments.

• Portable and suitable for various applications.
• High density medium wave radiant heat technology.
• Long lifespan with approximately 25000 hours for heating elements.

Product Highlights

Ideal for high vibration areas, this emitter is engineered for rugged use and provides effective heating solutions.

Product Information

Standard Information

• Manufacturer: TPI Corporation
• Series: FSP

Technical Specifications

• Power Rating: 9.5 kW
• Voltage Rating: 480 VAC
• Amperage Rating: 11.44/19.79 A
• Capacity: 32414 Btu/hr
• Beam Pattern: 60 degrees Symmetrical
• Dimensions: 17-1/2 inches L x 20 inches W x 53 inches H
• Material: Aluminum
• Mounting Type: Panel
• Finish: Gold Anodized
