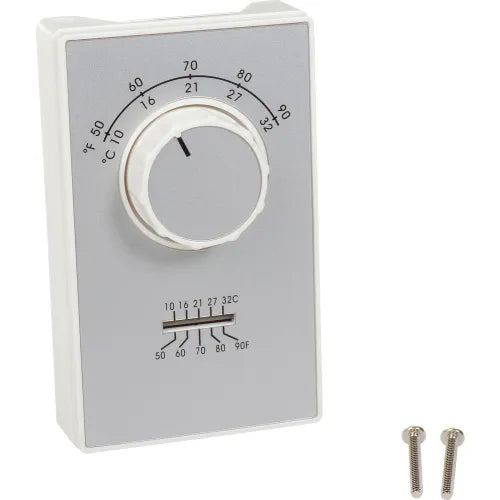

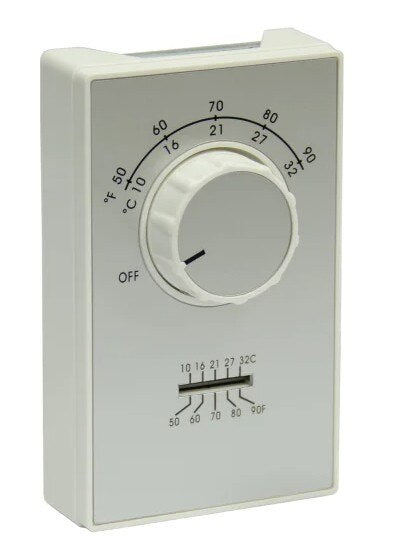

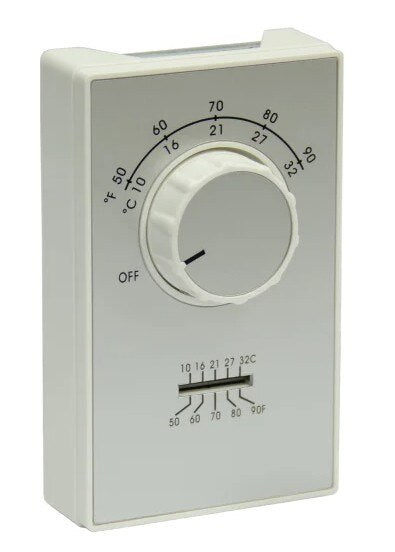

Tpi et9sts single pole wall mounted line voltage thermostat heating only 22a 120-277v

Product Description

The TPI ET9STS is a single pole wall-mounted line voltage thermostat designed for heating only. It features a built-in glass, alcohol-filled thermometer on the faceplate for easy temperature reading and offers a temperature range of 50-90 degrees Fahrenheit. This thermostat provides direct connection to resistance heating elements and unit heaters, ensuring reliable line voltage operation up to 22A at 120–277V for heating systems. It utilizes a snap-action switch with a bimetal actuator for precise temperature control, suitable for residential, commercial, and workshop heating applications.

• Built-in glass, alcohol-filled thermometer on faceplate for easy temperature reading
• Direct connection to resistance heating elements and unit heaters
• Reliable line voltage operation (up to 22A @ 120–277V) for heating systems

Product Highlights

Wall-mounted thermostat with bimetal actuator for precise heating control and integrated thermometer.

Product Information

Standard Information

• Brand: TPI
• Manufacturer Part Number: TPI-ET9STS
• Country of Origin: China

Technical Specifications

• Brand: TPI
• Model: ET9STS
• Controller Type: Push Button
• Applications: Control of resistance heating elements, Maintaining consistent temperature in spaces like homes, offices, workshops., Operation of unit heaters (horizontal or vertical discharge), Suitable for residential, commercial, and workshop heating applications
• Temperature Control Type: Heating
• Connectivity Technology: Wired
• Power Source: Electric
• Display Type: analog
• Mounting Type: Plate Mount
• Backlight: No
• Shape: Rectangular
• Product Style: Electric
• Certifications: CSA, UL
• Material: Metal
• Thermostat Type: SPST Heat Only
• Function: Thermostat with Thermometer
• Electrical Connection: Terminals
• Temperature Range: 50-90F
• Stages: 1H
• Color: White
• Amperage: 22 A
• Voltage: 277/120 V
• Programmable: Mechanical
