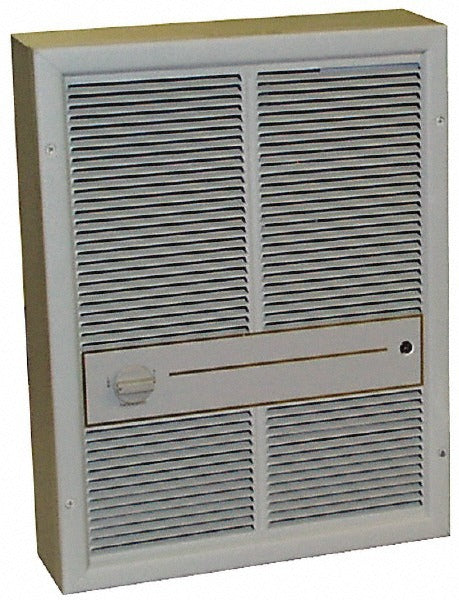

Tpi E3313TSRP Wall Heater 1500W 120V 5120 Btu/h

Product Description

The TPI E3313TSRP is an electric wall heater rated at 1,500 watts and 120 volts, delivering up to 5,120 BTU/h of heat output with an airflow capacity of 175 CFM. Designed for permanent wall installation, this unit provides direct, forced-air electric heat in a compact recessed or surface-mount form factor. At 12.5 amps draw, it is compatible with standard 15-amp branch circuits. The unit measures 15 inches wide, 4 inches deep, and 19.875 inches tall, fitting a typical wall cavity without extensive modification. Licensed electricians and HVAC technicians handle installation in residential and light commercial applications.

The E3313TSRP is suited for residential rooms, offices, garages, and utility spaces where a dedicated heat source is needed without the complexity of a ducted system. Its 175 CFM blower moves heated air efficiently across the space. The unit operates on a standard 120-volt single-phase circuit, making it a practical choice for retrofit installations where 240-volt service is not available or practical.

Key Features

• 1,500-watt output delivers up to 5,120 BTU/h of electric heat
• 120-volt, 12.5-amp operation compatible with standard 15-amp circuits
• 175 CFM blower for active forced-air heat distribution
• Compact wall-mount profile: 15 inches wide, 19.875 inches tall, 4 inches deep
• Designed for permanent wall installation in residential and light commercial settings

Compatibility

Designed as an OEM-style wall heater for residential and light commercial electric heating applications requiring a 120-volt, 1,500-watt forced-air unit.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out power at the circuit breaker before beginning any wiring work. Verify the branch circuit ampacity and breaker rating match the unit's 12.5-amp draw before energizing. Do not install in locations exposed to moisture or outdoor elements unless the unit is specifically rated for such environments.
