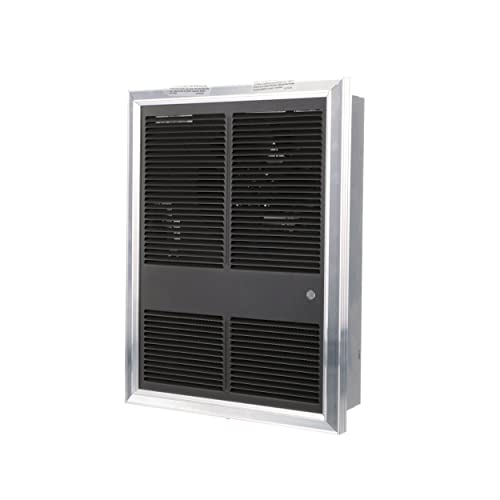

TPI HF3325TDRP Recessed Electric Wall-Mount Heater 3000/2250 W

Product Description

TPI HF3325TDRP is a recessed electric wall-mount heater designed for diverse heating requirements. This unit operates at two power levels, 3000 watts and 2250 watts, with an amperage of twelve point five and ten point eight, respectively. It is suitable for both recessed and surface mounting, providing versatility in installation.

• Operates at 3000 watts and 2250 watts
• 208/240 volts AC with a single-phase design
• Includes automatic reset thermal limit and built-in thermostat

Product Highlights

This heater effectively provides warmth with a temperature rise of fifty-four degrees Fahrenheit and has a fan-forced heating method for efficient airflow.

Product Information

Standard Information

• Brand: TPI
• Model: HF3325TDRP

Technical Specifications

• Voltage: 208/240 V AC
• Wattage Output: 2250/3000 W
• Heating Capacity: 7650/10,240 BtuH
• Amperage: 10.8/12.5 Amps
• Wall Opening Dimensions: 14-3/16 inches wide, 19-7/16 inches high, and 4 inches deep
• Housing Material: Steel
• Grille Material: 18 ga Steel
• Mounting Type: Surface or Recessed
• Air Flow: 175 cfm
• Frequency: 60 Hz
• Standards: ETL Listed for US and Canada
