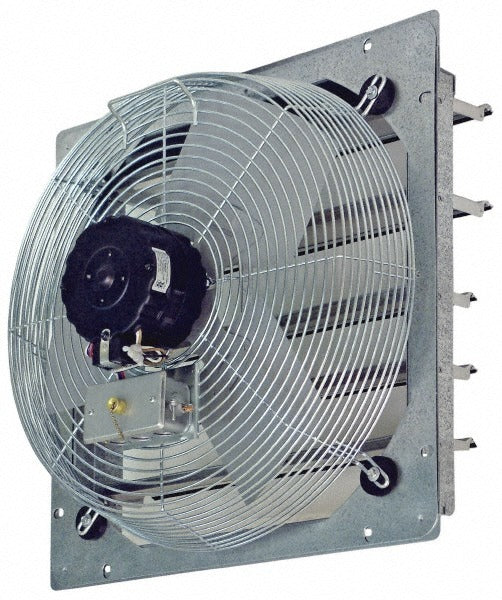

Tpi CE10DS Direct Drive Exhaust Fan 10 Inch 680 Cfm

Product Description

The TPI CE10DS is a totally enclosed, direct drive exhaust fan built for continuous ventilation in commercial and light industrial applications. Powered by a 1/12 HP motor and featuring a 10-inch blade, it delivers up to 680 CFM on high speed, 540 CFM on medium, and 460 CFM on low. The totally enclosed motor design resists dust and moisture ingress, making it suitable for demanding environments. Single-phase, 120-volt operation keeps wiring straightforward, and three-speed control lets installers balance airflow against noise or energy use. Licensed contractors and facility maintenance technicians are the typical installers for this unit.

The CE10DS suits wall or ceiling exhaust applications in warehouses, utility rooms, commercial kitchens, garages, and similar spaces that require reliable forced ventilation. The unit requires a rough opening of 13-1/8 inches height by 13-1/8 inches width. Direct drive eliminates belt and pulley maintenance, reducing long-term service calls. Three selectable speeds give facility managers flexibility to match ventilation needs to occupancy or process loads without additional controls.

Key Features

• 10-inch blade delivers up to 680 CFM on high, 540 CFM on medium, and 460 CFM on low
• Totally enclosed motor protects against dust and moisture in harsh environments
• Direct drive design eliminates belt, pulley, and bearing maintenance
• Single-phase 120-volt operation compatible with standard commercial branch circuits
• Three-speed motor provides adjustable airflow without separate speed controllers
• Compact 13-1/8 inch square rough opening fits standard wall and partition cutouts

Compatibility

Designed as an OEM-style replacement or new-installation exhaust fan for commercial and light industrial ventilation systems requiring a 10-inch direct drive blower with a 13-1/8 inch square rough opening.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with NEC requirements for exhaust fan branch circuits. Disconnect and lock out power at the panel before wiring or mounting. Verify the rough opening dimensions match the 13-1/8 inch height and width requirements before cutting or framing. Do not operate the fan without proper ductwork or louver termination, as unducted discharge can create backpressure that degrades motor life.
