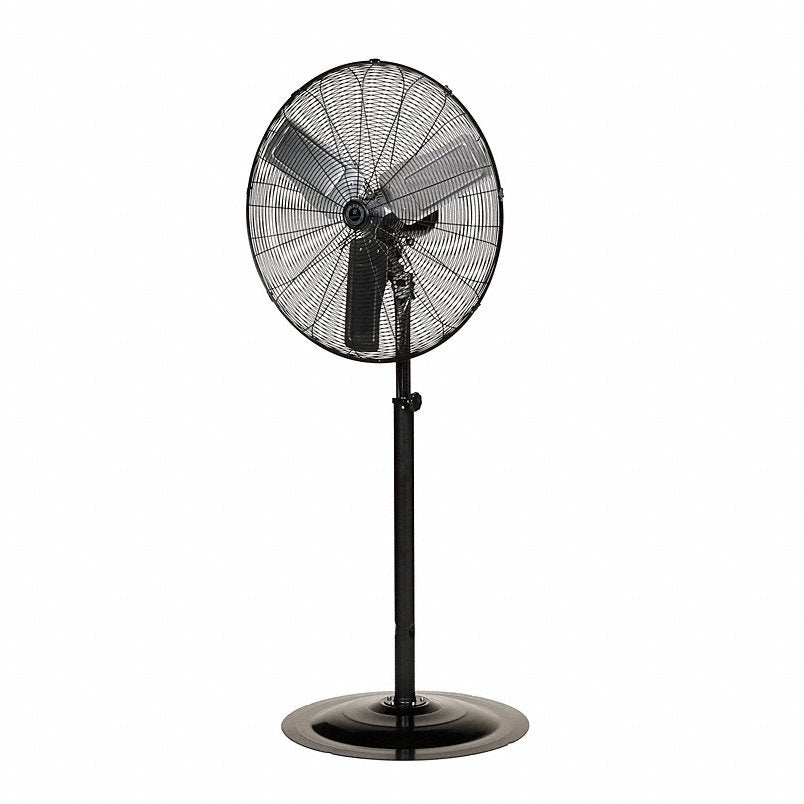

Tpi cacu30po 30 in Oscillating Pedestal Fan 6700 Cfm

Product Description

The TPI cacu30po is a 30-inch blade diameter, three-speed oscillating pedestal fan built for sustained use in demanding commercial and industrial environments. Powered by a 1/6 hp permanent split capacitor motor drawing 1.93 amps at peak speed, it delivers up to 6,700 CFM of airflow on high, 6,200 CFM on medium, and 5,700 CFM on low. The aluminum blades and powder-coated steel housing are sized for durability on production floors, in warehouses, and in agricultural settings. A pull-chain switch controls speed selection, and the adjustable post sets the center of the fan head anywhere from 43 to 60 inches above the floor. Licensed HVAC and mechanical contractors, as well as facilities maintenance technicians, handle installation and commissioning of units like this.

The cacu30po is suited for agricultural, commercial, and industrial applications where flexible, temporary, or supplemental airflow is required. Typical deployment includes warehouses, distribution centers, production floors, livestock facilities, and large open workspaces where a freestanding, repositionable unit is preferred over fixed ductwork. The stationary weighted base keeps the unit stable on flat surfaces, while the oscillating head broadens the coverage area without relocating the unit. The 9-foot cord provides reasonable reach to standard 120-volt single-phase circuits.

Key Features

• 30-inch aluminum blades deliver up to 6,700 CFM on the high speed setting
• Oscillating head distributes airflow across a wide coverage area
• Adjustable pole sets fan center height from 43 to 60 inches
• Permanent split capacitor motor with ball bearings for extended service life
• Powder-coated steel housing and aluminum wire guard for durability in dry industrial environments
• Pull-chain three-speed switch; direct drive, plug-in operation on 120V AC single-phase power
• cULus listed and OSHA compliant

Compatibility

Designed for use in dry agricultural, commercial, and industrial environments requiring a freestanding 30-inch oscillating pedestal fan on a standard 120-volt single-phase circuit.

Installation Notes

Assembly is required prior to use. Facilities technicians or qualified maintenance personnel should follow the included instructions and verify the base is fully secured before powering the unit. Plug the fan into a properly grounded 120-volt outlet rated for continuous duty loads; do not use an extension cord unless it is appropriately gauge-rated for the amperage draw. Keep the unit away from wet or damp areas, as this fan carries a dry environment rating only.
