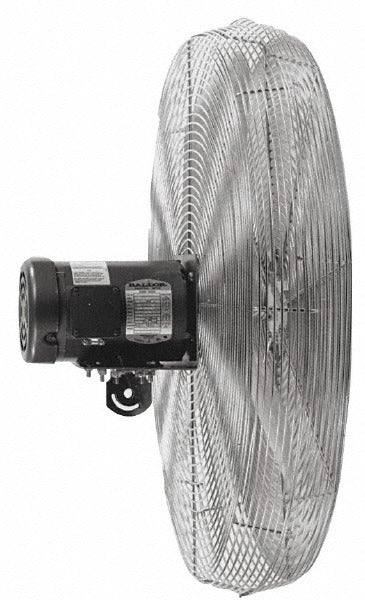

Tpi ACH30-EX1 Industrial Circulation Fan 7000 Cfm 30 Inch

Product Description

The TPI ACH30-EX1 is a 30-inch industrial circulation fan designed for high-volume air movement in demanding commercial and industrial environments. Running on 120/240 volts single-phase power at 2.6 amps, this fan head delivers up to 7,000 CFM at high speed and 5,500 CFM at low speed, giving technicians and facility managers precise control over airflow. The 1/4 horsepower motor is totally enclosed, providing protection against dust and debris in tough job-site conditions. This unit ships as a fan head only, making it suitable for permanent or semi-permanent mounting installations where the support structure is already in place or specified separately.

This fan is built for industrial and commercial applications where sustained air circulation is required — warehouses, factories, garages, agricultural buildings, and large utility spaces. The two-speed operation allows the fan to be dialed back during low-demand periods, reducing noise and energy draw. With a 3-blade, 30-inch diameter configuration and a maximum motor speed of 1,725 RPM, the ACH30-EX1 moves substantial air volume across wide open floor areas. Installation is handled by qualified electricians or mechanical contractors familiar with single-phase industrial wiring practices.

Key Features

• High-speed CFM rating of 7,000 CFM; low-speed rating of 5,500 CFM
• 30-inch, 3-blade fan head for broad air coverage
• Totally enclosed motor protects against dust and particulate intrusion
• Two-speed operation for adjustable airflow output
• 1/4 HP single-phase motor rated at 2.6 amps, compatible with 120/240 volt circuits
• Maximum motor speed of 1,725 RPM

Compatibility

Designed as a fan head only unit for industrial and commercial circulation applications requiring a 30-inch single-phase fan with two-speed control. Mounting hardware and support structures are not included and must be sourced or specified separately.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for single-phase motor branch circuits. Disconnect and lock out all power before mounting or wiring the fan head. Verify that the supply circuit matches the voltage configuration — 120 or 240 volts — before making connections. Ensure the mounting structure is rated to support the fan head weight of 69 pounds and is secured to prevent vibration-induced movement during operation.
