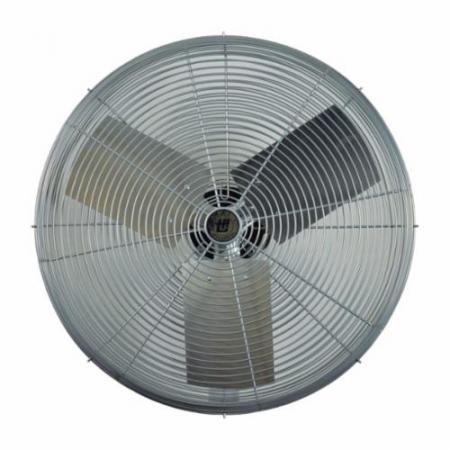

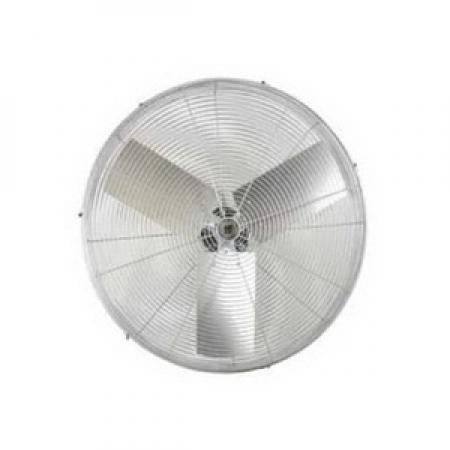

TPI ACH30 30 Standard Ind. Fan Head 1/4 HP 07961702

Product Description

The TPI Corporation ACH30 is a thirty inch standard industrial fan head designed to provide efficient airflow. This fan operates at one fourth horsepower and offers two-speed settings for versatile use in various industrial applications. It is suitable for indoor commercial and industrial environments.

• Two-speed operation: High at 1100 rpm and low at 800 rpm
• High airflow capacity: 7900 cfm on high, 6000 cfm on low
• Durable construction with an aluminum blade and steel housing

Product Highlights

The ACH30 fan head features a pull chain control and comes with a twelve-foot SJT cord for flexible installation options. It can be mounted on ceilings, I-beams, poles, surfaces, or suspended as needed.

Product Information

Standard Information

• Manufacturer: TPI Corporation
• Power Rating: 1/4 hp

Technical Specifications

• Amperage Rating: 2.7 A
• Blade Material: Aluminum
• Blade Size: 30 inches
• Blade Type: Paddle
• Control Type: Pull Chain
• Cord Type: SJT 12 ft
• Dimensions: 33-1/2 inches Dia x 14-1/2 inches D
• Flow Rate: 7900 cfm High, 6000 cfm Low
• Frequency Rating: 60 Hz
• Housing Material: Steel
• Mounting Type: Ceiling/I-Beam/Pole/Surface/Suspension
• Number of Speeds: 2
• Voltage Rating: 120 VAC
• Type: 1-Phase Assembled
• Warranty: 1 Year
