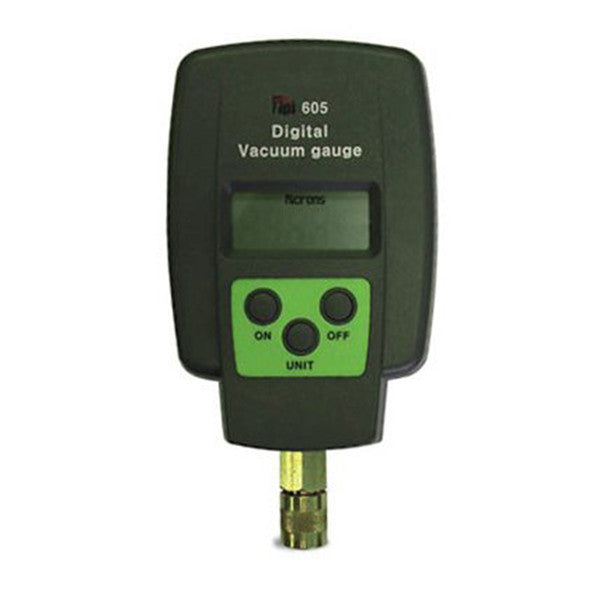

Tpi 605 digital vacuum gauge 12000 to 15 micron

Product Description

The TPI 605 digital vacuum gauge is a single input vacuum gauge with a 12000 to 15 micron measurement range. It is designed to measure vacuum in Microns for accurate evacuation of refrigeration systems. It features a 5 digit display and seven units of measure. It comes complete with an instruction manual and 9V Alkaline Battery.

• Single input with 12000 to 15 micron range.
• Seven units of measure: Microns, PSI, InHg, mBar, Pascals, Torr, mTorr.
• Display: 5 digit.

Product Highlights

The TPI 605 digital vacuum gauge helps to find small leaks when changing a refrigerant system and prevents moisture and air from being left in the system.

Product Information

Standard Information

• Brand: TPI
• Manufacturer Part Number: 605

Technical Specifications

• Manufacturer: TPI
• Manufacturer #: 605
• Parts Town #: TPI605
• Units: Each
• Measurement Range: 12000 to 15 micron
• Display: 5 Digit LCD
• Resolution (max): 1 micron
• Accuracy: (+/-10% of reading + 10 digits)
• Functions: Selectable units of measure
• Units of Measure: 7 Units (Microns, PSI, InHg, mBar, Pascals, Torr, mTorr)
• Battery Type: 9V Alkaline
• Battery Life: 200 hours (Typical)
• Auto Power Off: 10 minutes when measurement is above 12000 microns
• Max Vacuum (" Hg): 30
• Battery: 1 9V (included)
• Description: Digital Vacuum Gauge, 12000 to 15 micron
