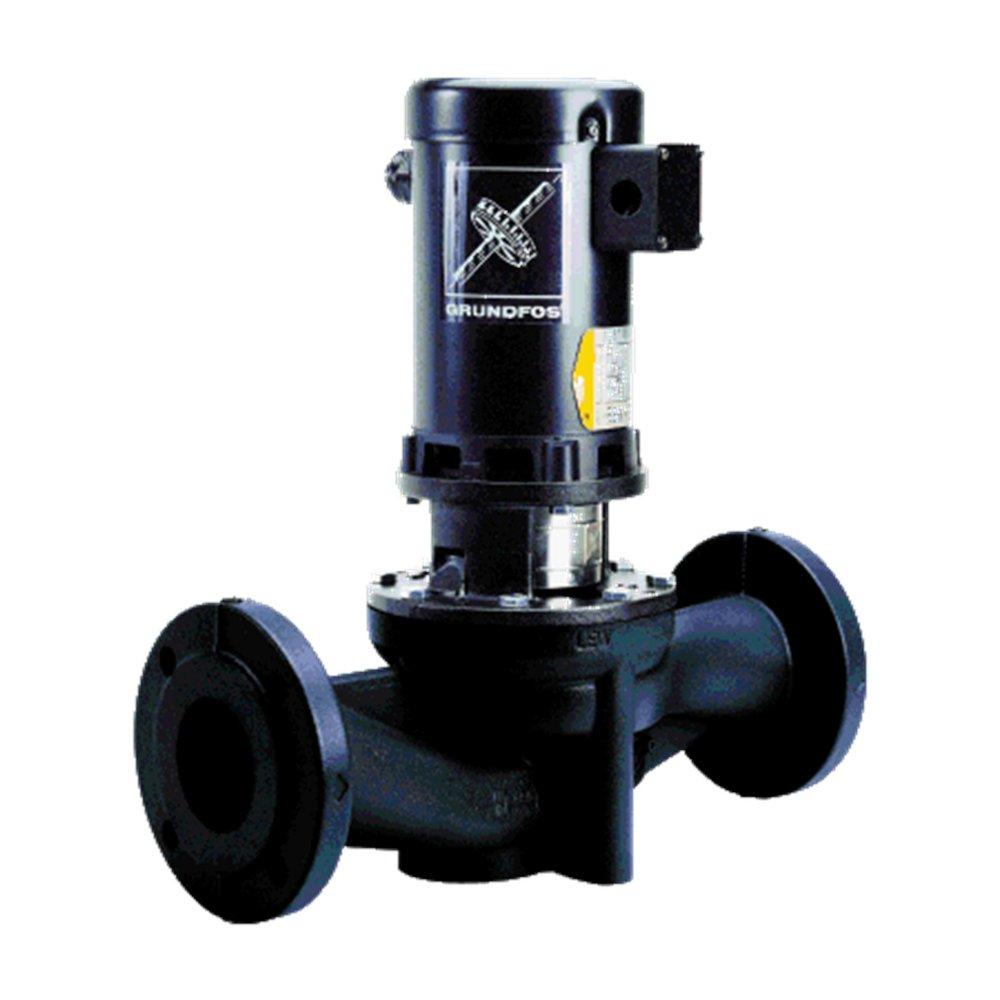

Grundfos 96411800 TP40-160/2 Direct Coupled In-Line Circulator, 3/4 HP, Bronze, 115/208-230V, GF 40/43 Flange Mount

Product Description

The Grundfos TP40-160/2 is a direct coupled, single-stage, in-line centrifugal pump designed for effective circulation of liquids in heating and air-conditioning systems. This pump, with the MPN 96411800, features a top-pull-out design which allows easy access for maintenance without disturbing the existing pipework.

• Flow rate of 59.4 gallons per minute
• Operates within a temperature range of five to two hundred eighty-four degrees Fahrenheit
• Constructed from durable bronze material for improved corrosion resistance

Product Highlights

This pump is suitable for various applications including district heating, industrial cooling, and radiant floor heating.

Product Information

Standard Information

• Brand: Grundfos
• MPN: 96411800

Technical Specifications

• Flow rate: 59.4 gallons per minute
• Power: 3/4 horsepower
• Voltage: 115/208-230 volts
• Material: Bronze
• Connection size: 1-1/2 inches
• Max pressure: 145 psi
• Max head: 52.5 feet
• Weight: 75 pounds
• Frequency: 60 Hz
• Temperature range: 5°F to 284°F
