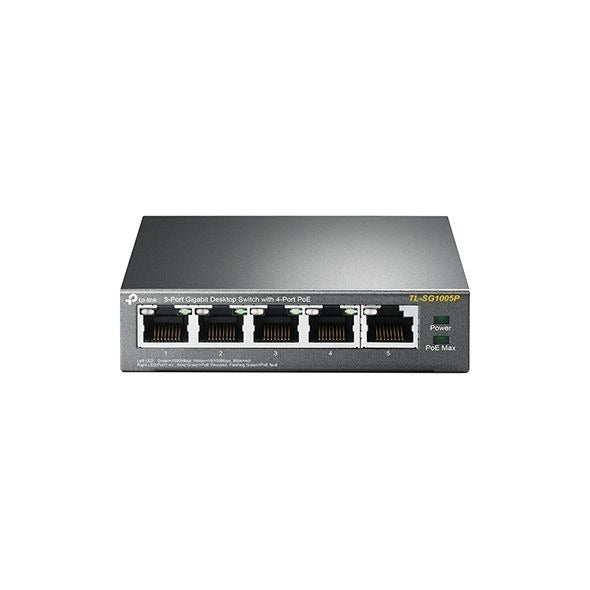

Tp-link tl-sg1005p 5 Port Gigabit Poe Plus Switch 65W

Product Description

The TP-LINK tl-sg1005p is a 5-port gigabit desktop switch with 4 PoE+ enabled ports and a total PoE power budget of 65 watts. It provides plug-and-play network connectivity for small commercial and residential installations where powered devices such as IP cameras, wireless access points, and VoIP phones need to be connected without separate power adapters. All five ports operate at gigabit speeds, supporting data transfer up to 1000 Mbps. The compact desktop form factor makes it suitable for low-profile installs at distribution points, desks, or wall-mount enclosures. Network technicians and low-voltage installers are the primary trades who deploy this unit.

This switch is suited for small office, home office, and light commercial network installations. It is commonly deployed in environments requiring Power over Ethernet delivery to endpoint devices such as security cameras, wireless access points, and IP intercoms. The 4 PoE+ ports conform to the 802.3at standard, allowing up to 30 watts per port within the shared 65-watt total budget. The fifth port functions as a standard gigabit uplink. Its unmanaged design requires no configuration software or CLI access, making it a straightforward drop-in for structured cabling terminations.

Key Features

• 5 total gigabit ports with 4 PoE+ capable ports supporting 802.3at
• 65-watt total PoE power budget shared across all 4 PoE+ ports
• Plug-and-play unmanaged operation with no configuration required
• Compact desktop form factor suited for space-constrained installations
• All ports operate at up to 1000 Mbps full-duplex gigabit speeds

Compatibility

Designed as a standard 802.3at PoE Plus unmanaged gigabit switch compatible with any IEEE 802.3at or 802.3af compliant powered device connected to its PoE ports.

Installation Notes

Installation is typically performed by low-voltage network technicians or licensed electricians working within structured cabling systems. Ensure the total power draw of all connected PoE devices does not exceed the 65-watt shared budget before finalizing the installation. Power down or unplug the switch before making or changing cabled connections to powered endpoint devices. Follow applicable local codes and TIA-568 cabling standards for cable runs and terminations.

Technical Specifications

• Total Ports: 5
• PoE Plus Ports: 4
• Port Speed: 1000 Mbps gigabit per port
• PoE Standard: IEEE 802.3at PoE Plus
• Total PoE Power Budget: 65 watts
• Switch Type: Unmanaged desktop

Standard Information

• Brand: TP-LINK
• Manufacturer Part Number: tl-sg1005p
