Product Description

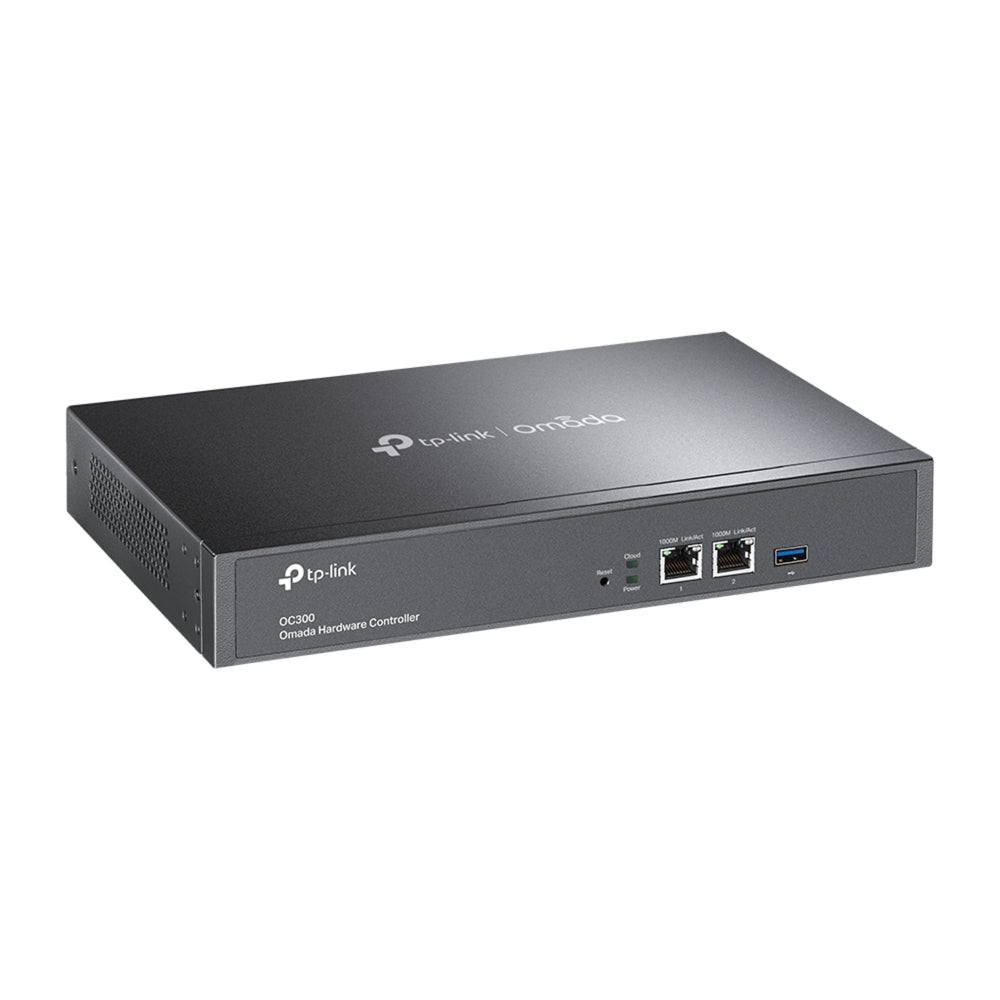

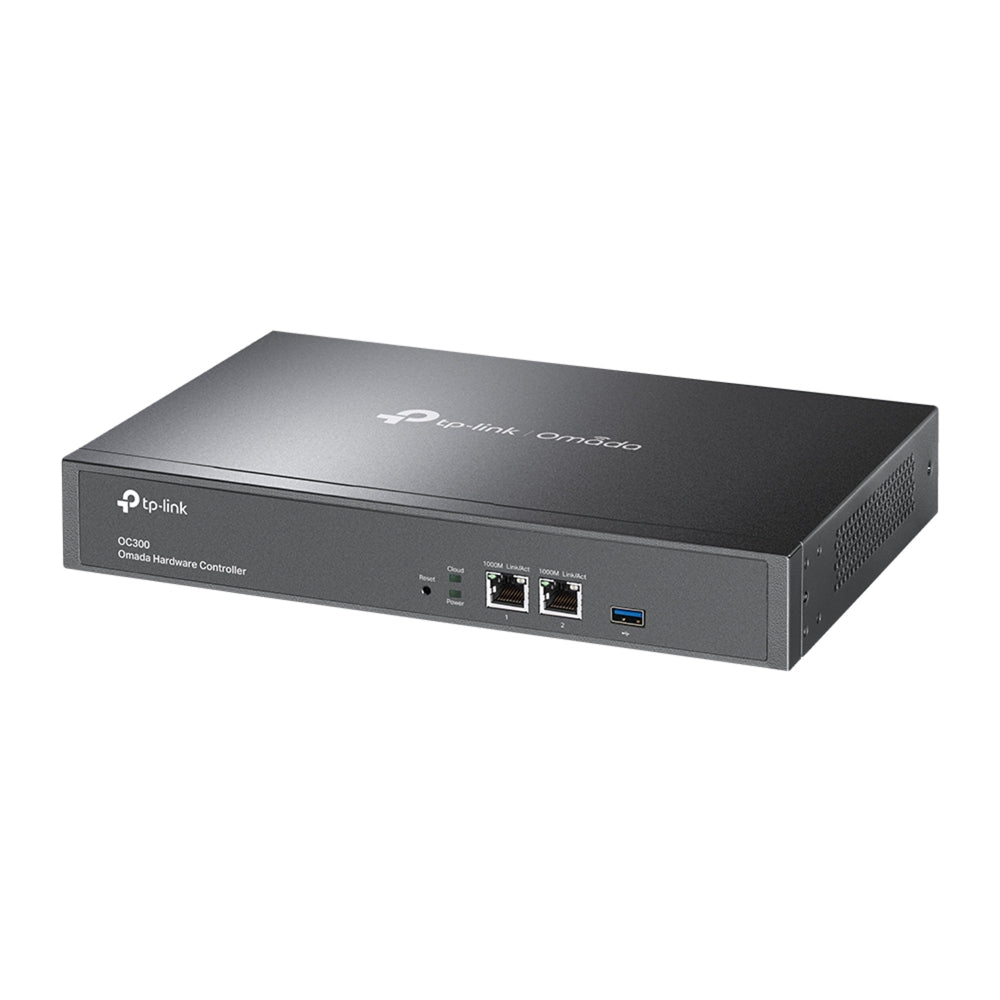

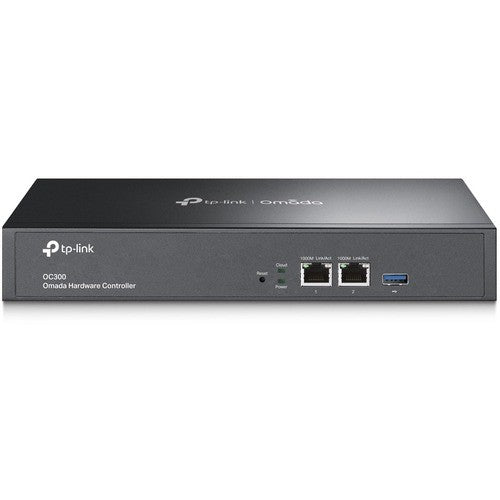

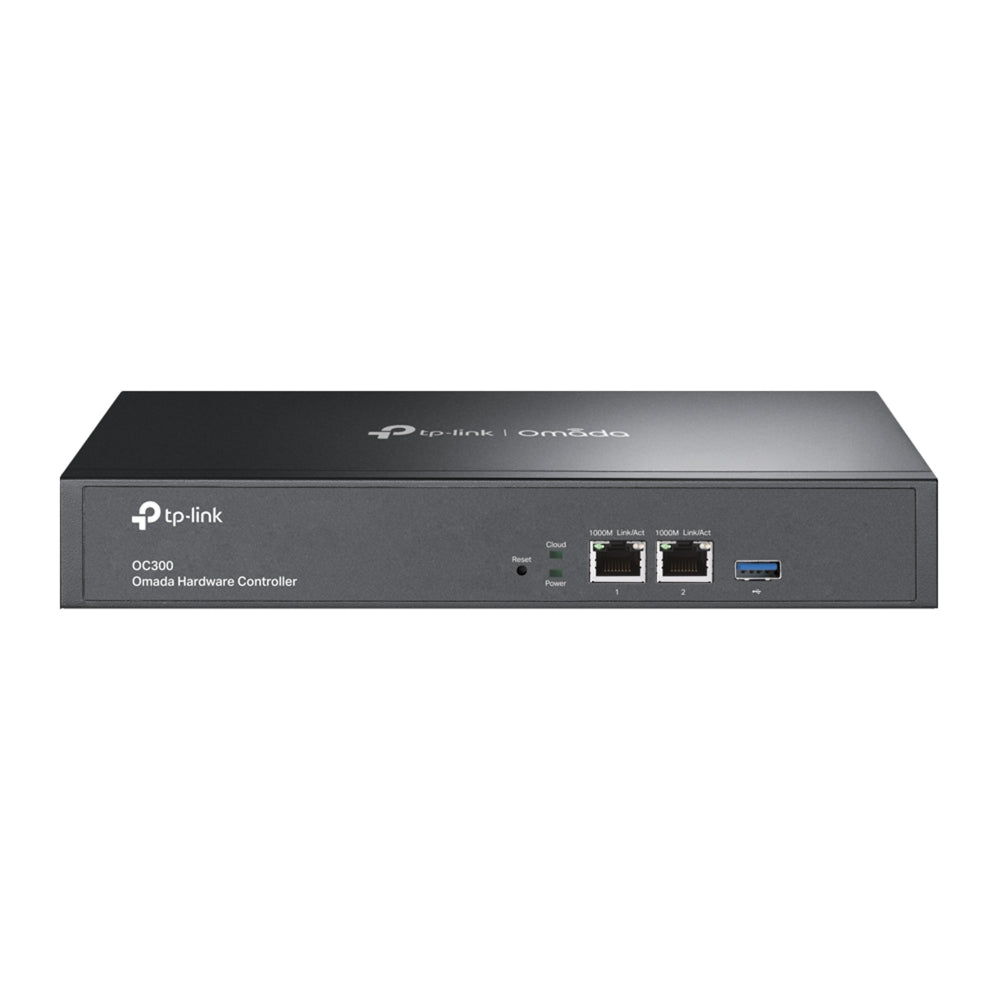

The TP-LINK CORPORATION PTE OC300 is a professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, providing centralized management of Omada access points, JetStream switches, and Omada routers from a single interface. The OC300 supports remote network control with cloud access and local device management. It features a durable metal casing and a USB 3.0 port for auto backup.
- Supports up to 500 Omada access points, 100 Omada routers, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs
- Manage and monitor with the Omada app or Web UI from anywhere with free cloud access.
- Features a powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports.
Product Highlights
The OC300 offers centralized management, cloud access, and industry-leading hardware design for easy and intelligent network monitoring and maintenance.
Product Information
Standard Information
-
Brand: TP-LINK CORPORATION PTE
-
Manufacturer Part Number: OC300
-
Country of Origin: China
Technical Specifications
-
Interface: 2× 10/100/1000 Mbps Ethernet Ports
• 1× USB 3.0 Port
-
Power Supply: 100–240 V~50/60 Hz, 0.6 A
-
Omada App: Yes
-
Centralized Management: 500 Omada access points
• 100 Omada routers
• A maximum of 100 Omada switches
†
• A maximum of 5 certain DeltaStream GPON OLTs
†
-
Cloud Access: Yes
-
L3 Management: Yes
-
Multi-site Management: Yes
-
Management Features: Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
-
Certification: CE, FCC, RoHS
-
System Requirements: Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
-
Environment: Operating Temperature: 0–50 ℃ (32–122 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
-
Input Voltage: 120 V AC, 230 V AC
-
Input Voltage Range: 100â€"240 V
-
Frequency: 50 Hz, 60 Hz
-
Product Color: Black
-
Operating Temperature: 0-50 ℃ (32-122 ℉)
-
Storage Temperature: -40-70 ℃ (-40-158 ℉)
-
Operating Humidity: 10-90% RH non-condensing
-
Storage Humidity: 5-90% RH non-condensing
-
Application/Usage: Remote Management
-
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
-
Rack capacity: 1U
-
Built-in processor: Yes
-
Processor manufacturer: ARM
-
Processor family: ARM Cortex
-
Number of processors installed: 1
-
Internal memory: 2000 MB
-
Internal memory type: DDR4
-
Flash memory: 2 MB
-
Supported protocols: Routing/NAT/Session Limit/Bandwidth Control
VPN (IPSec/L2TP/PPTP/OpenVPN)
RADIUS (Authentication/MAC Auth/Accounting)
802.1x
-
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
-
VPN support: VPN (IPSec/L2TP/PPTP/OpenVPN)
-
Access Control List (ACL): Yes
-
MAC address filtering: Yes
-
Security algorithms: SNMP, SSH
-
Network address translation (NAT): Yes
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
-
Ethernet LAN (RJ-45) ports: 2
-
Web-based management: Yes
-
Syslog: Yes
-
Traffic statistics: Yes
-
Power consumption (typical): 9 W
-
Power consumption (max): 14.8 W
-
Input frequency: 50/60 Hz
-
Operating temperature (T-T): 0 - 50 °C
-
Storage temperature (T-T): -40 - 70 °C
-
Operating relative humidity (H-H): 10 - 90%
-
Storage relative humidity (H-H): 5 - 90%
-
Automatic Device Discovery: Yes
-
Batch Configuration: Yes
-
Batch Firmware Upgrading: Yes
-
Intelligent Network Monitoring: Yes
-
Abnormal Event Warnings: Yes
-
Unified Configuration: Yes
-
Reboot Schedule: Yes
-
Captive Portal Configuration: Yes
-
Environmentally Friendly: Yes
