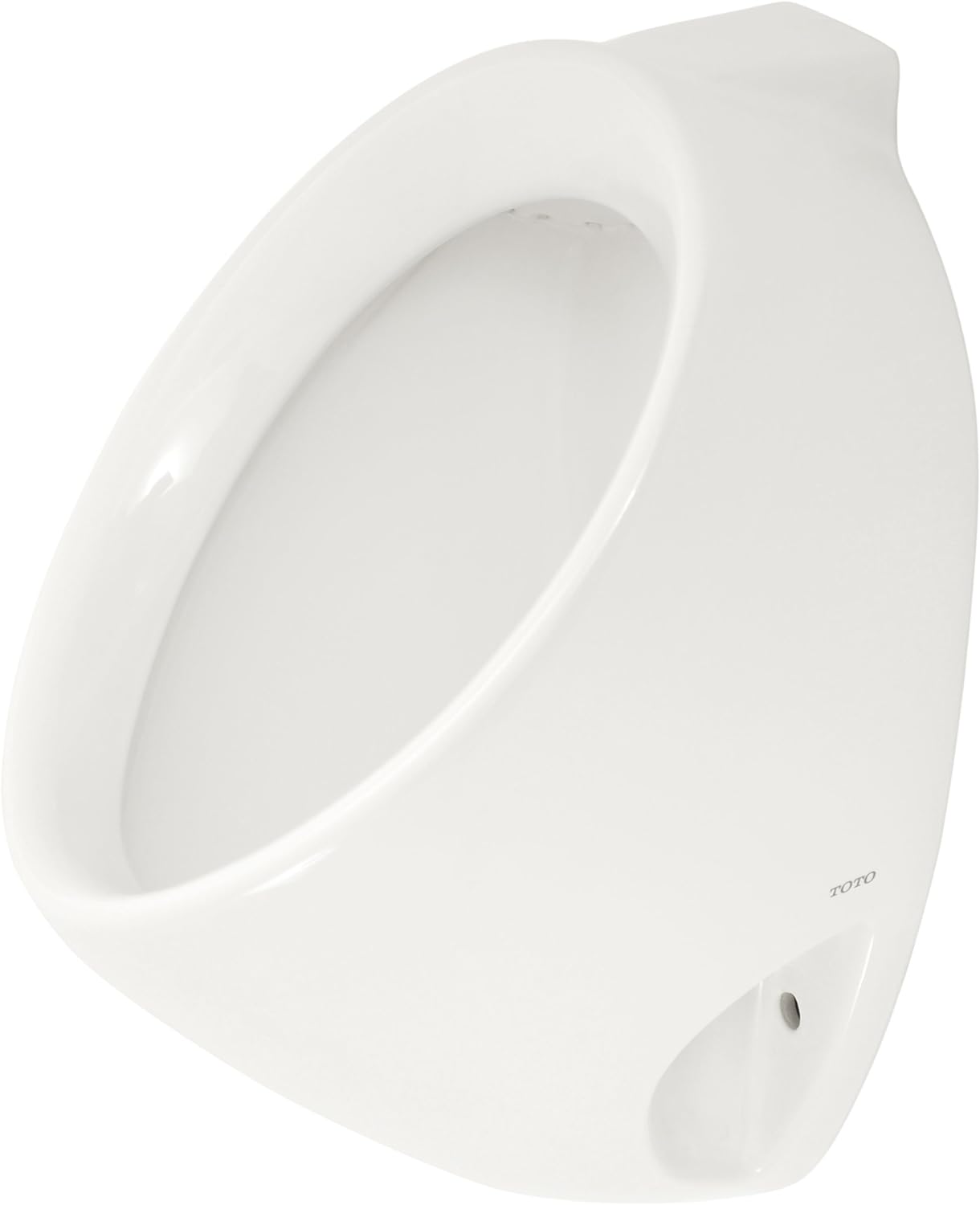

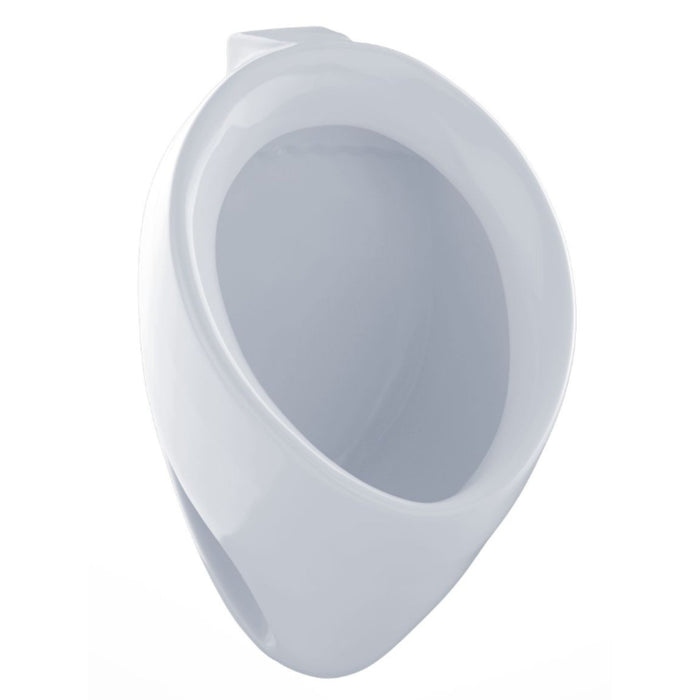

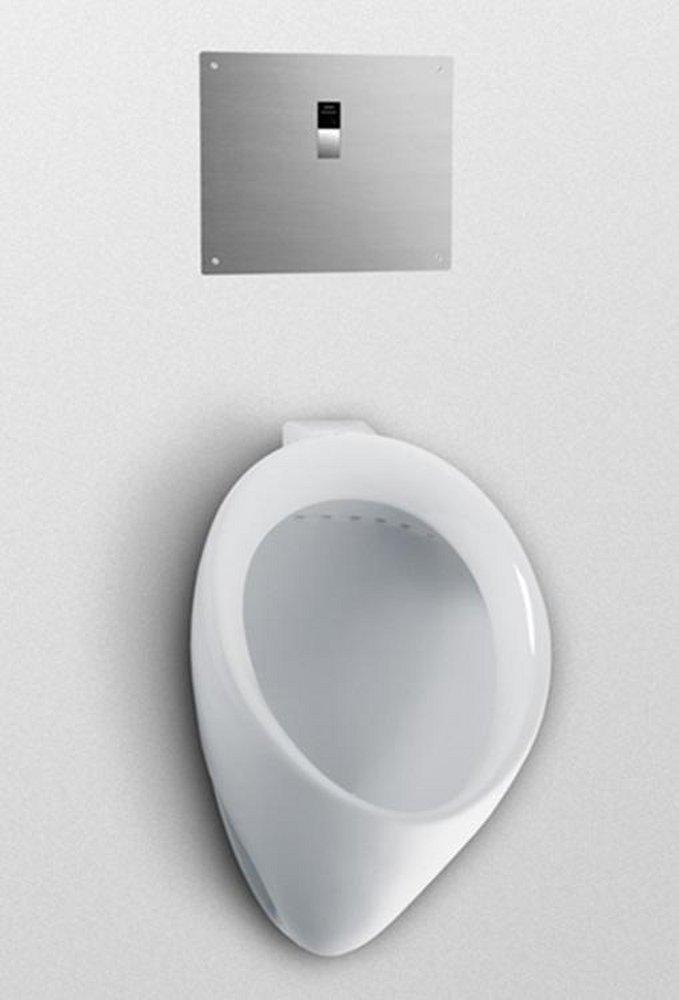

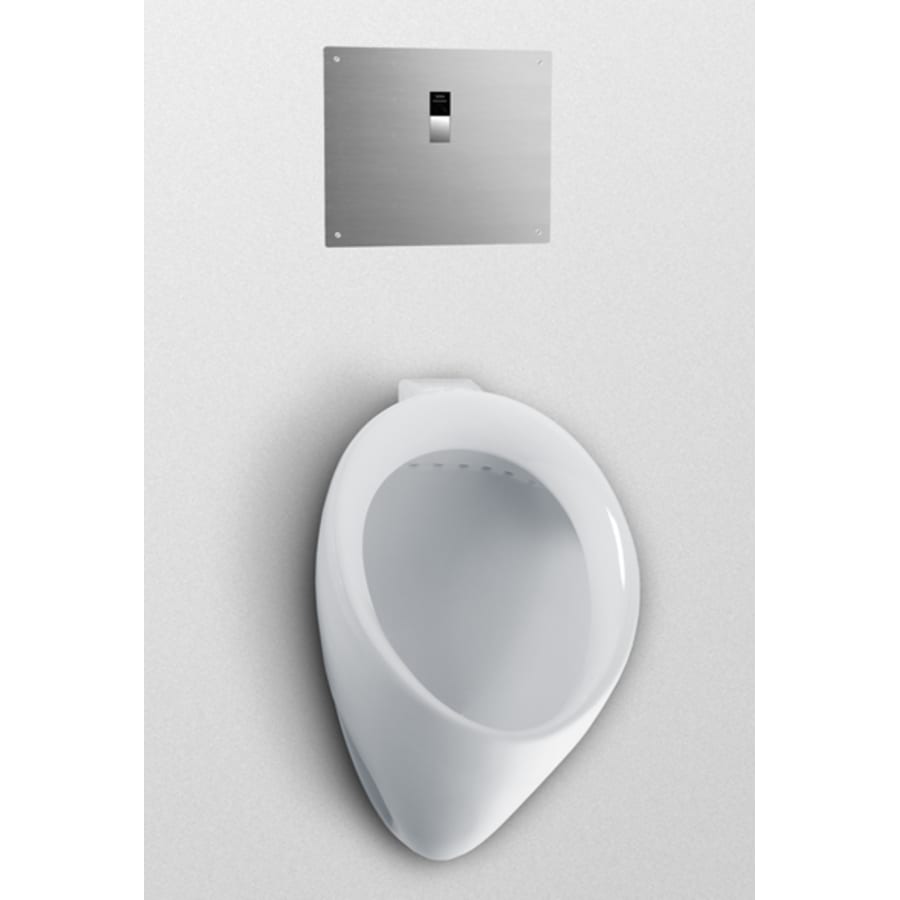

Toto UT104EV#01 commercial washout urinal with back spud 0.5 gallons per flush

Product Description

The TOTO UT104EV#01 is a commercial washout urinal designed for wall-mounted installation. It features an open-front shape and consumes 0.5 gallons per flush, promoting water conservation. Constructed from vitreous china, this urinal is durable and suitable for commercial environments. It includes a concealed integral trap and a 3/4 inch back spud inlet, ensuring efficient performance and a clean aesthetic. The unit is ADA compliant, making it accessible for all users.

• Wall Mounted Installation for space-saving design
• 0.5 Gallons per Flush Water Consumption for efficiency

Product Highlights

Compact, wall-mounted urinal with concealed integral trap and efficient washout flush action.

Product Information

Standard Information

• Brand: TOTO
• Manufacturer Part Number: UT104EV#01

Technical Specifications

• Brand: TOTO
• Model Number: UT104EV#01
• Part Number: UT104EV#01
• Manufacturer: TOTO
• Color: Cotton White
• Shape: Open-front
• Finish: Cotton White
• Certification: No
• Installation Type: Wall Mounted
• Water Consumption: 0.5 GPF / 1.9 LPF
• Batteries Required: No
• Package Quantity: 1
• Applicable Standards: ADA, ASME A112.19.2/CSA B45.1, IAPMO, UPC, IPC, NSPC, NPC Canada, EPA
• Depth: 14 Inch
• Height: 21-3/4 Inch
• Integral Trap: Concealed
• Inlet Connection: 3/4 Inch
• Inlet Location: Back Spud Inlet
• Length: 13 Inch
• Material: Vitreous China
• Outlet Connection: 2 Inch I.P.S.
• Minimum Water Pressure: 15 PSI (Flowing)
• Series: UT104EV
• Type: Compact
• Flush System: Washout Flush Action
• Width: 13 Inch
• Rim Size: 14 Inch
• Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles
• ADA Compliant: Yes
• Flush Valve Included: No
• Efficiency: High Efficiency
• Spud Location: Back Spud
• Collection: Commercial
• Approved for Commercial Use: Yes
• CA Drought Compliant: Yes
• Product Type: Urinal
• Bowl Type: Elongated
