Toto USA TLM10 Mixing Valve (Q)

Product Description

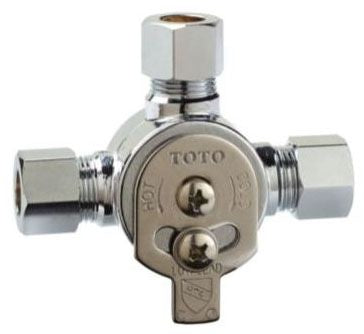

The Toto USA TLM10 is a manual mixing valve designed for hot and cold water applications. It features a nominal size of three-eighths inch by three-eighths inch by three-eighths inch with compression end connections. The valve's body is made of solid brass for durability. It has an end-to-end distance of two and thirteen-sixteenths inches and can operate within temperatures of thirty-two to one hundred four degrees Fahrenheit.

• Compatible with EcoPower controllers TELC105-D10E and TELC105-C20E
• Equipped with an integral check valve and debris screen
• Lead-free construction with NSF certification

Product Highlights

This valve is suitable for both residential and commercial applications and is compliant with various plumbing standards. It is designed for below-deck installation with a manual temperature adjustment feature.

Product Information

Standard Information

• Manufacturer: Toto USA
• UPC: 73926828090

Technical Specifications

• Body Material: Solid Brass
• Nominal Size: 3/8 Inch x 3/8 Inch x 3/8 Inch
• End Connection: Compression x Compression x Compression
• End to End Distance: 2-13/16 Inch
• Base to Inlet Dimension: 1-7/16 Inch
• Temperature Rating: 32 to 104 Deg F (Ambient)
• Pressure Rating: 15 PSI (Minimum Dynamic/Flow), 80 PSI (Maximum Static) Water
• Applicable Standard: NSF372-2011, ASME A112.18.1-2012/CSA B125.1-12, IAMPO/CUPC
• Inclusions/Features: Integral Check Valve, Debris Screen
