Toto ST454ER#01 Drake II Right Hand Tank 1.28GPF W/Trim

Product Description

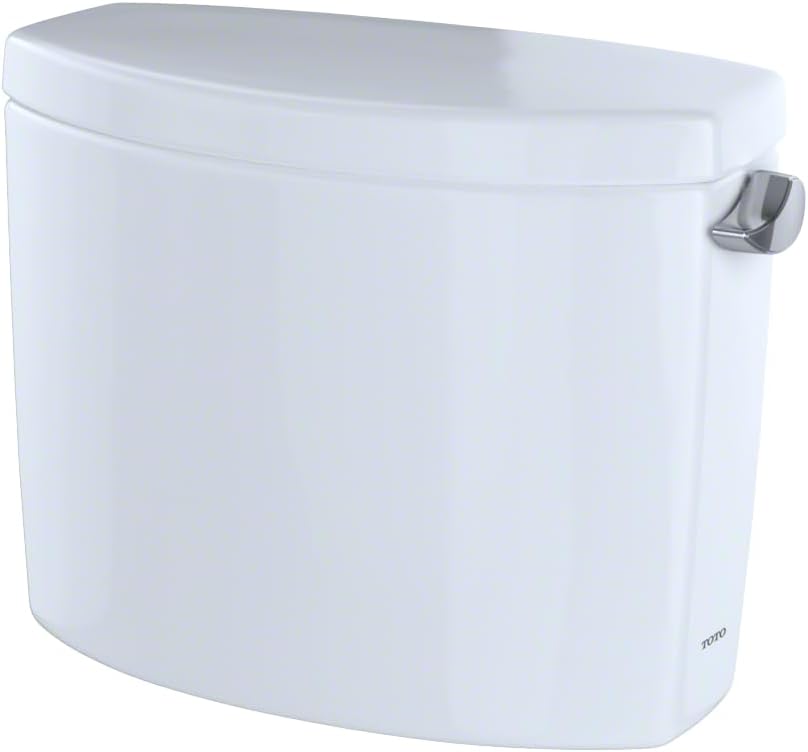

The TOTO ST454ER#01 Drake II Right Hand Tank 1.28GPF W/Trim is a toilet tank from the Drake II series. It features a right-hand trip lever and consumes 1.28 gallons per flush. Constructed from vitreous china, this tank is designed for use with the Drake II or Vespin II bowl.

• E-Max® 1.28 GPF flushing system for a powerful flush
• Features TOTO's Tornado Flush™ system
• Meets EPA WaterSense®, California’s CEC, and CALGreen requirements

Product Highlights

This toilet tank is WaterSense certified and ADA compliant. It includes a tank to bowl gasket, tank to bowl hardware, and toilet bolt caps.

Product Information

Standard Information

• Brand: TOTO
• Manufacturer Part Number: ST454ER#01
• Country of Origin: Brazil|USA

Technical Specifications

• Color: Cotton
• Material: Vitreous China
• Certification: Watersense
• Installation Type: Floor Mounted
• Water Consumption: 1.28 Gallons per Flush
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Product Only
• Model#: ST454ER#01
• Manufacturer Name: Toto
• SKU: TST454ER01
• Manufacturer Part Number: ST454ER#01
• Brand: TOTO
• Finish/Color: Cotton White
• Freight Class (NMFC): 159510
• HTS Code: 6910.10.0015
• Applicable Standard: ADA, ASME A112.19.2/CSA B45.1, IAPMO, UPC, IPC, NSPC, NPC Canada, EPA WaterSense, CA Prop65
• CATALOG NUMBER: ST454ER#01
• COMMODITY CODE DESCRIPTION LEVEL 3: Toilet Tanks
• Gallons Per Flush: 1.28
• Inclusions/Features: Cover, Trip Lever
• Length: 16-1/2 Inch
• Product Sub-Type: Toilet Tank
• Product Type: Bidet, Toilet and Urinal
• Series/Model: ST454ER

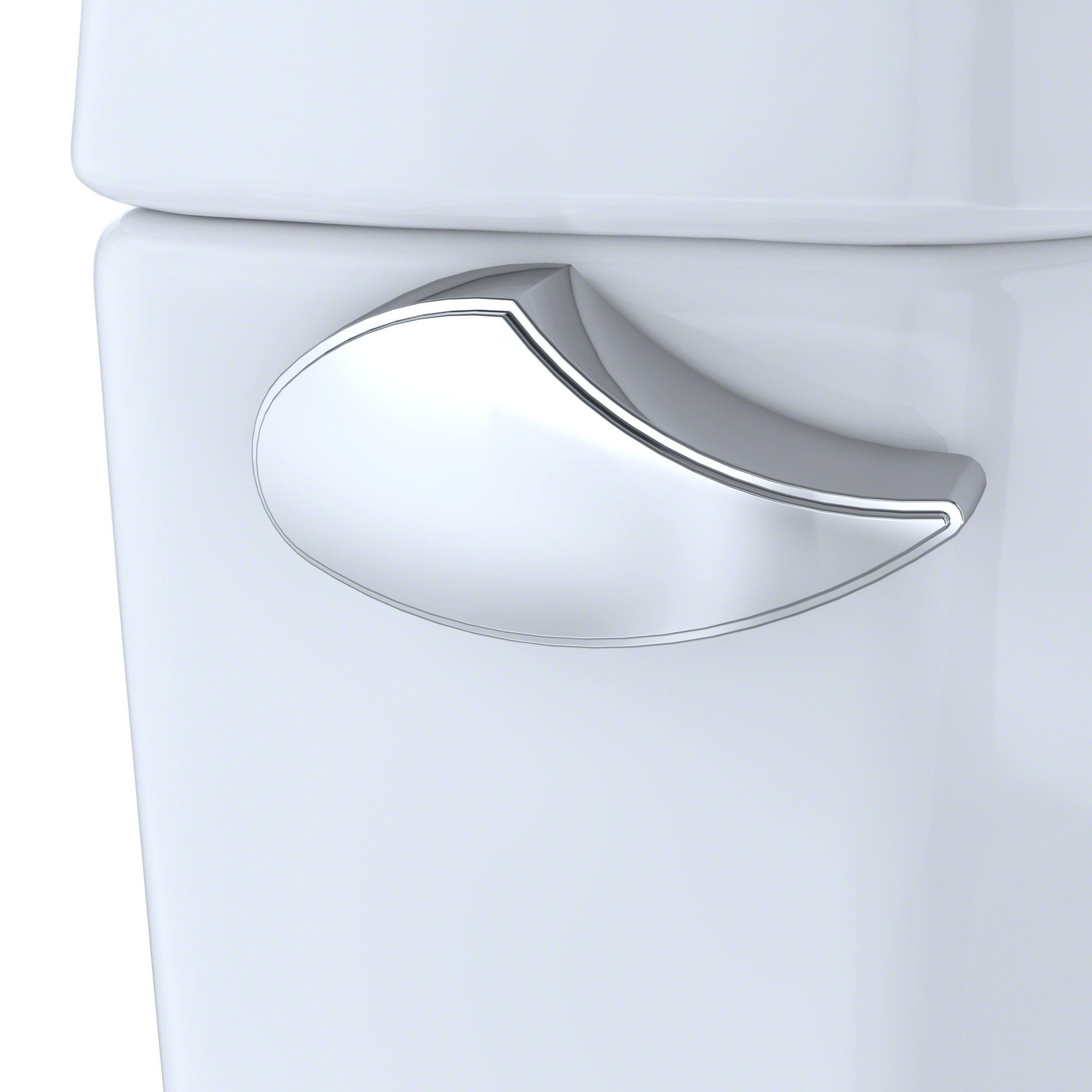

• Trip Lever Details: Chrome Plated, Right Hand
• Used On Item: Close Coupled Toilet
• Used On Item Part No: CST454CEFG/CST454CEF
• Used On Model/Brand: Vespin
• Width: 8 Inch
• Depth: 7-5/8"
• Height: 13-7/8"
• Features: Decorative High Profile, Tornado Flush System, High Efficiency
• Includes: Right-Hand Toilet Tank and Cover Only
• Standards: ASME A112.19.2/CSA B45.1, IAPMO(cUPC), UPC, IPC, NSPC, NPC Canada, AB715, California Green Building Code, Los Angeles Water Efficiency Ordinance
• Collection: Drake
• Compliance: ASME A112.19.2/CSA B45.1; UPC; IPC; NSPC; NPC Canada; ADA
• Fits Brand: Toto
• Flush Mode: Single Flush
• Flush Handle: Right-hand Trip Lever
• ADA Compliance: No
• Mounting Style: Floor
• Flushing Method: Gravity Fed
• Tank Connection: Standard
• Brand and Series: Toto Drake(R) II
• Flush Valve Type: 3" Flush Valve
• One Piece/Two Piece: Two Piece
• System of Measurement: Inch
• With Liner/Without Liner: Without Liner
• Green Environmental Attribute: Toilet Uses 1.28 gpf or Less
• Tank/Flushometer Mfr. Model Number: ST454ER#01
• Country of Origin (subject to change): United States
• Green Certification or Other Recognition: WaterSense Approved
• Country Of Origin: Brazil | US
• Series: ST454ER
• Domestic/Import: Import
• Flush Valve Size: 3 in
• Mounting Type: Wall
• Rough-In Size: 12 in
• Trap Diameter: 2.125
• Configuration: Tank Only
• Trip Lever Finish: Chrome
• Approved for Commercial Use: No
• CA Drought Compliant: Yes
• Lead Leaching Certified NSF/ANSI 61: N/A (Regulation does not apply)
• TX Drought Compliant: Yes
• Model Number: ST454ER#01
• Manufacturer: Toto ST454ER#01 Drake II Toilet Tank with Right Hand Lever, Cotton
• UPC: 739268177222
• Global Trade Identification Number: 00739268177222
• Country of Publication: Japan
